Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.35.BC.14 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 1000 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |

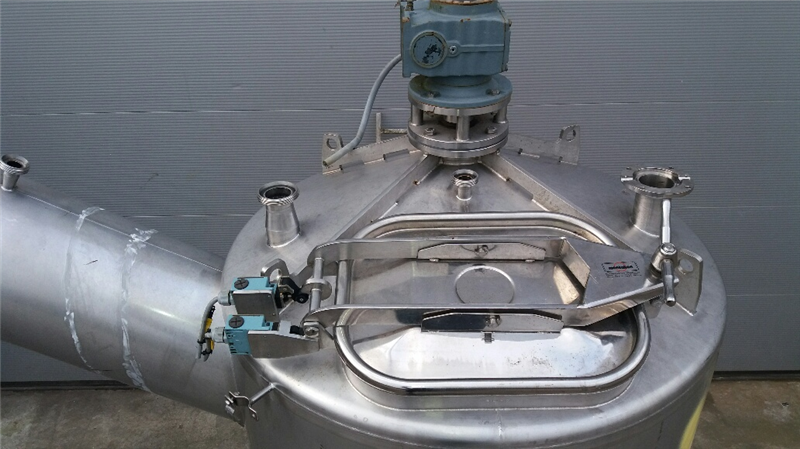

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450x340mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | vlinderklep + MK |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 340 |
| Condition | Used |

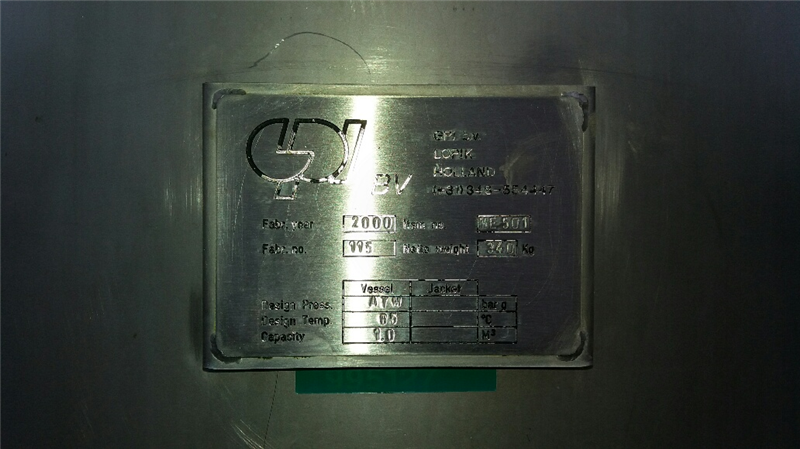

| Type plate manufacturer | Yes |
| Manufacturer | GPI b.v. |
| Year Built | 2000 |
| Design Code | 115 - ME501 |
| Construction data available | No |
| Working temperature (° C) | 65 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Cylindrical length (mm) | 1500 |
| Height bottom (mm) | 100 |
| Total height (mm) | 2900 |
| Length (mm) | 1800 |
| Diameter tank (mm) | 900 |
| Width (mm) | 1300 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

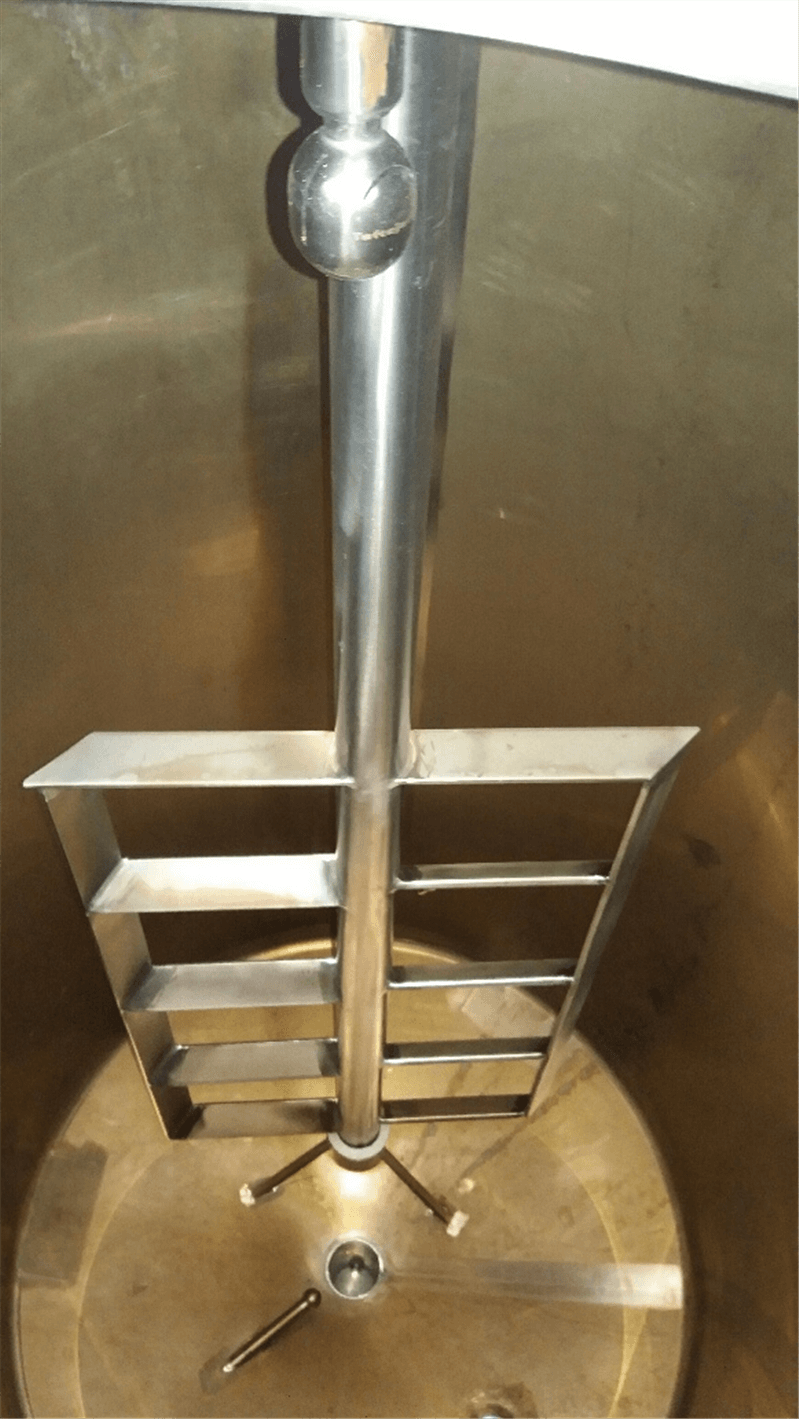

| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Anchor |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Drive Type | Direct |
