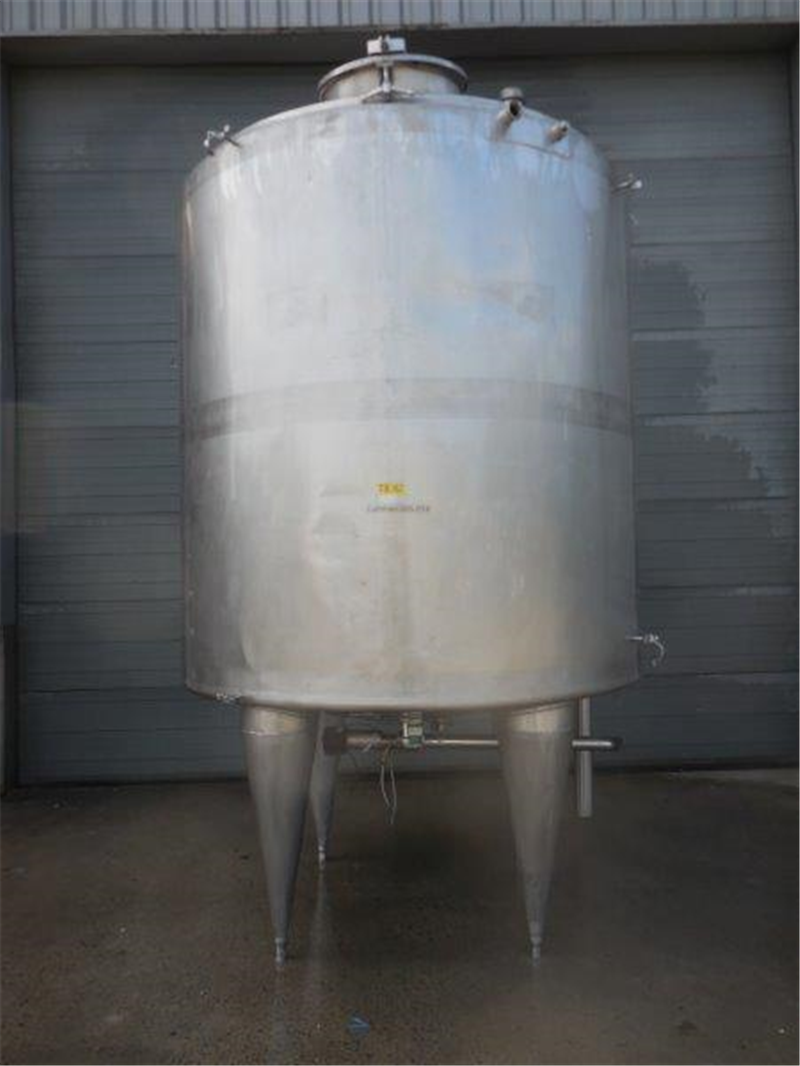

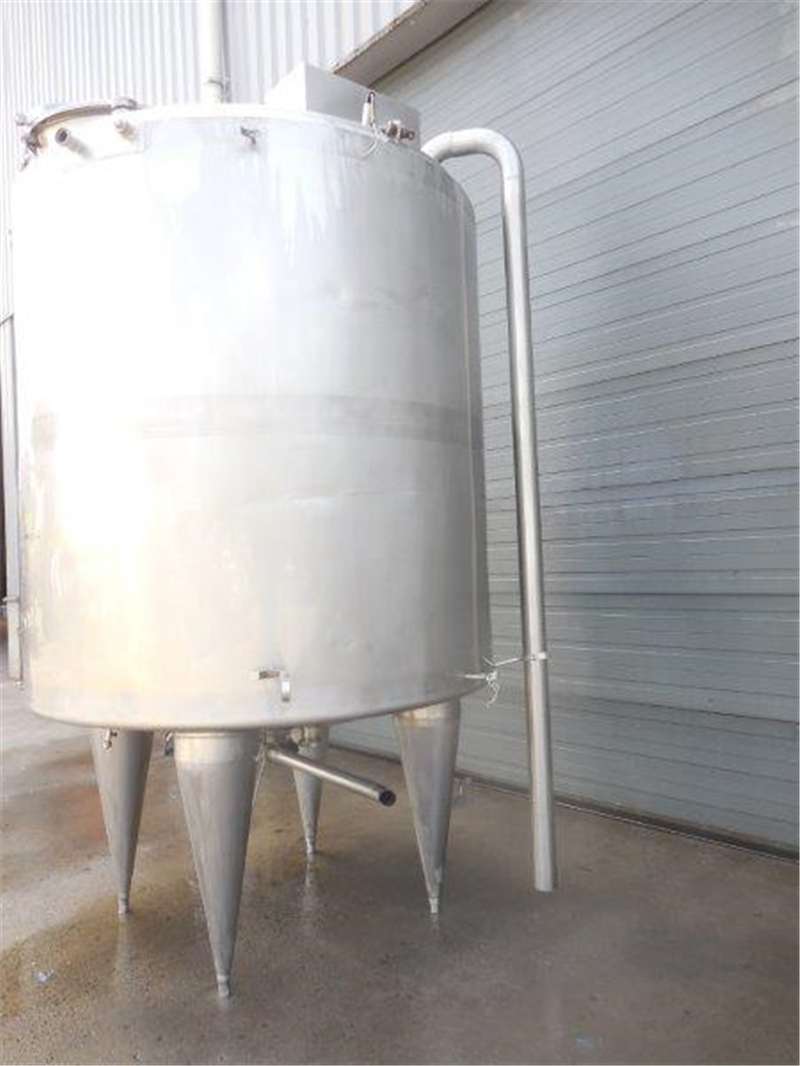

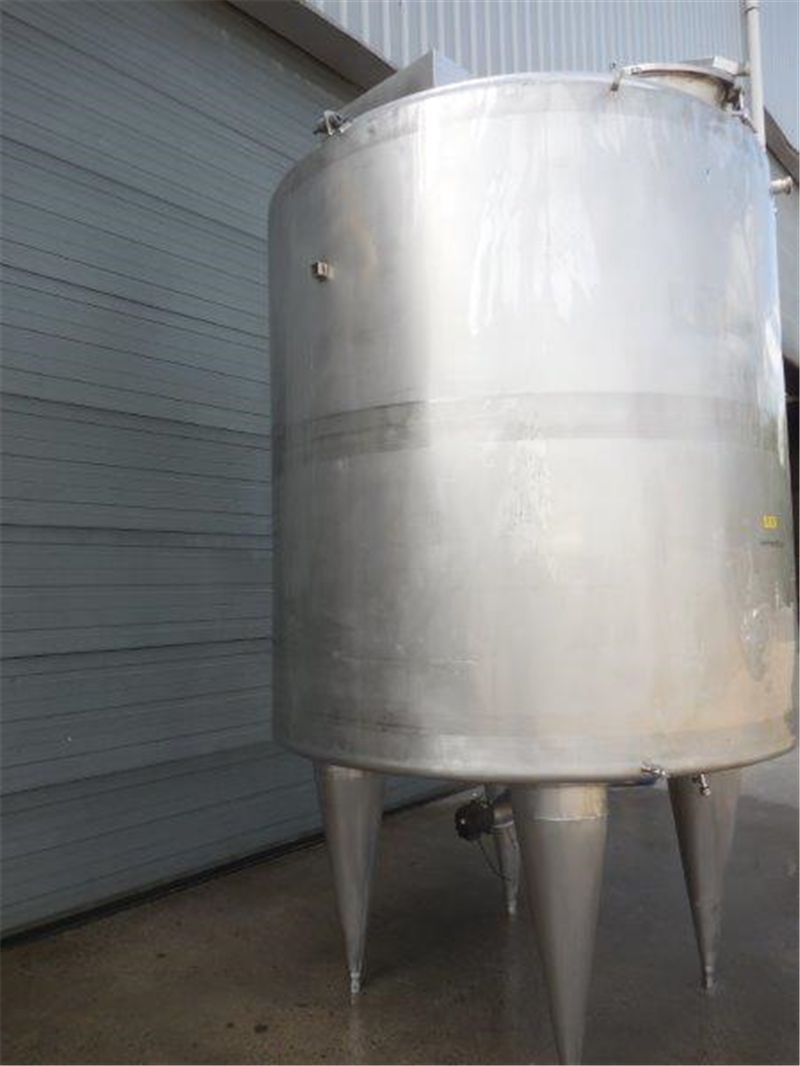

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.35.BC.08 |

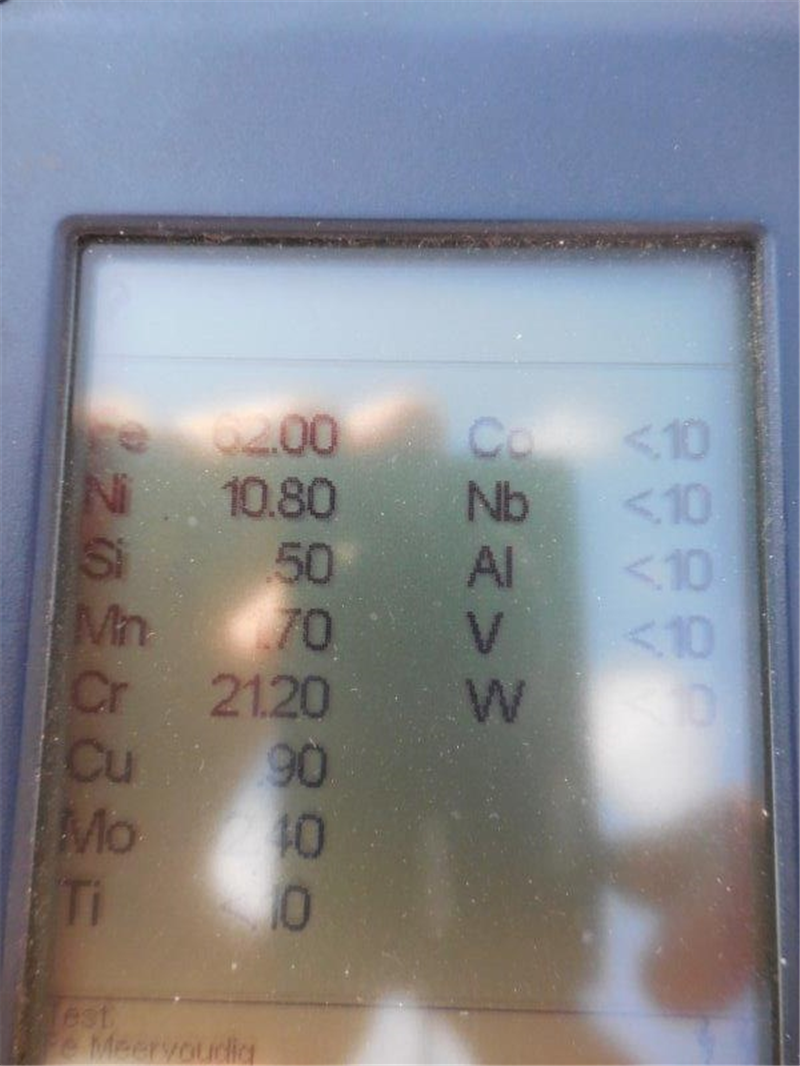

| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 4000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

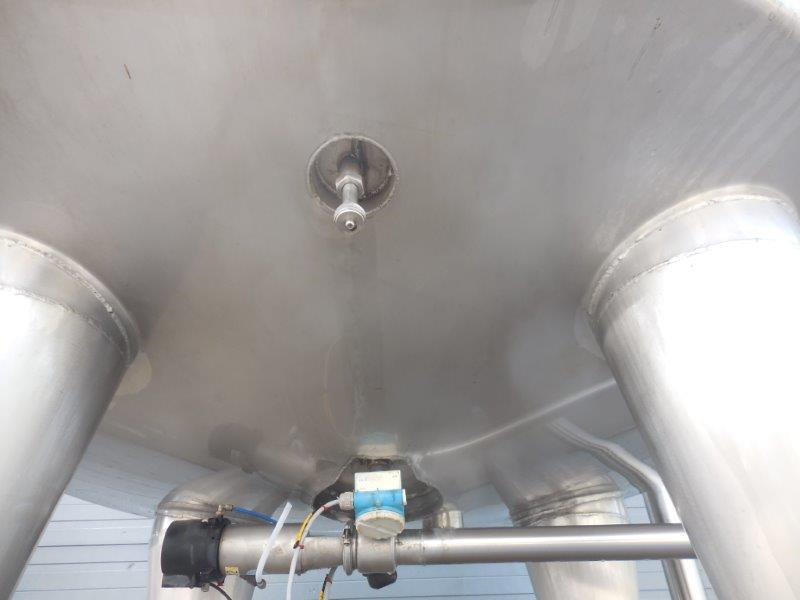

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |

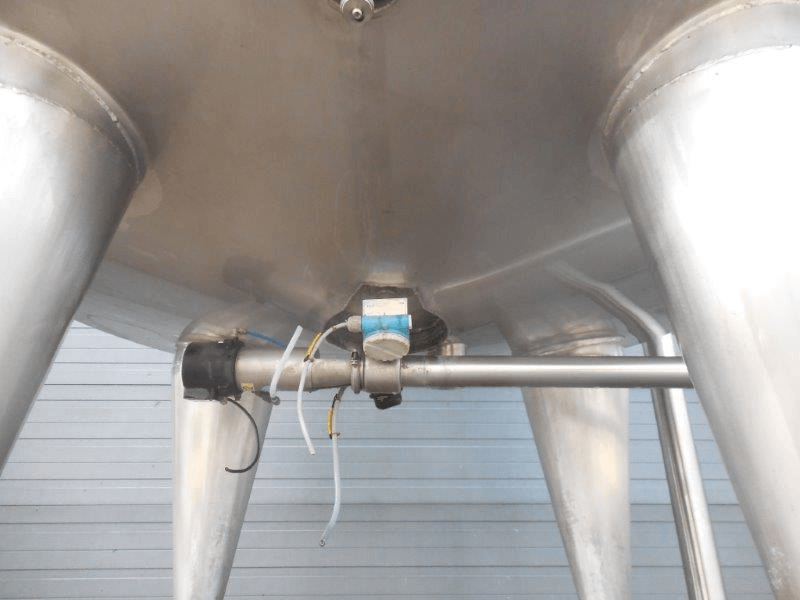

| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Food |
| Condition | Used |
| Drawing 1 | t0335BC081.pdf |
.jpg)
.jpg)
.jpg)

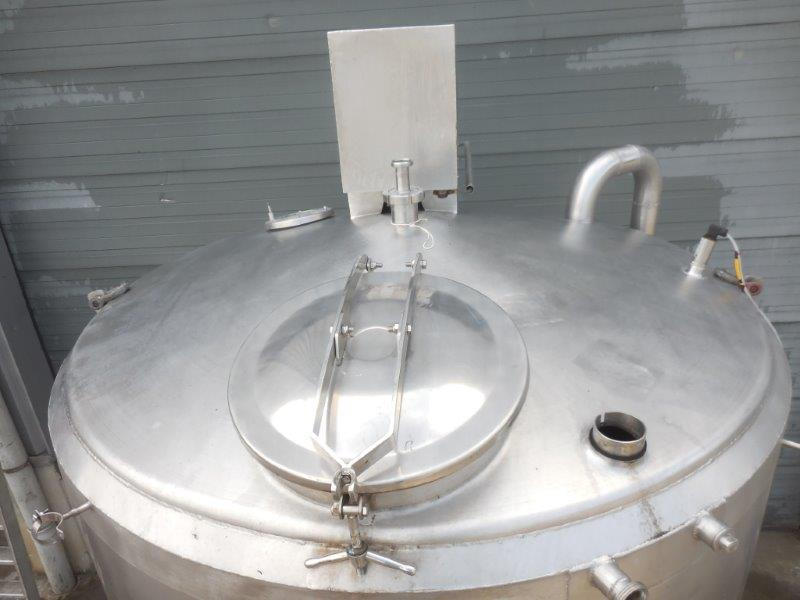

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,4 |
| Periphery (mm) | 6310 |
| Slope bottom (°) | 15 |
| Outer wall thickness (mm) | 2 |
| Outside diameter tank (mm) | 2008 |
| Total height (mm) | 3840 |
| Diameter tank (mm) | 1900 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

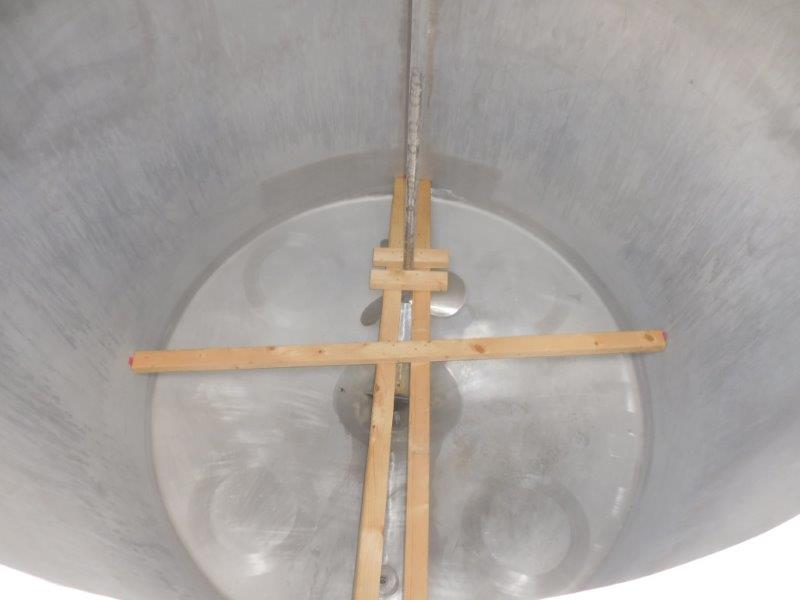

| Agitator 1: stirring element type | Propeller |

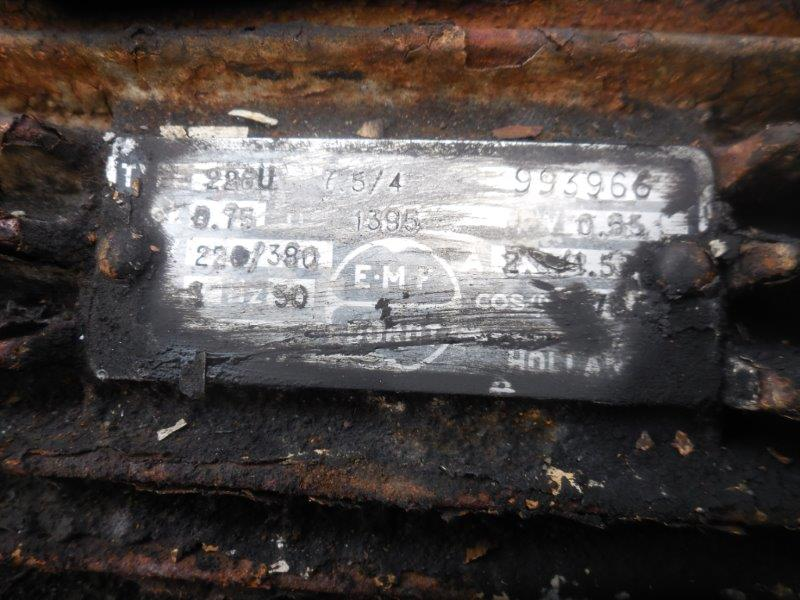

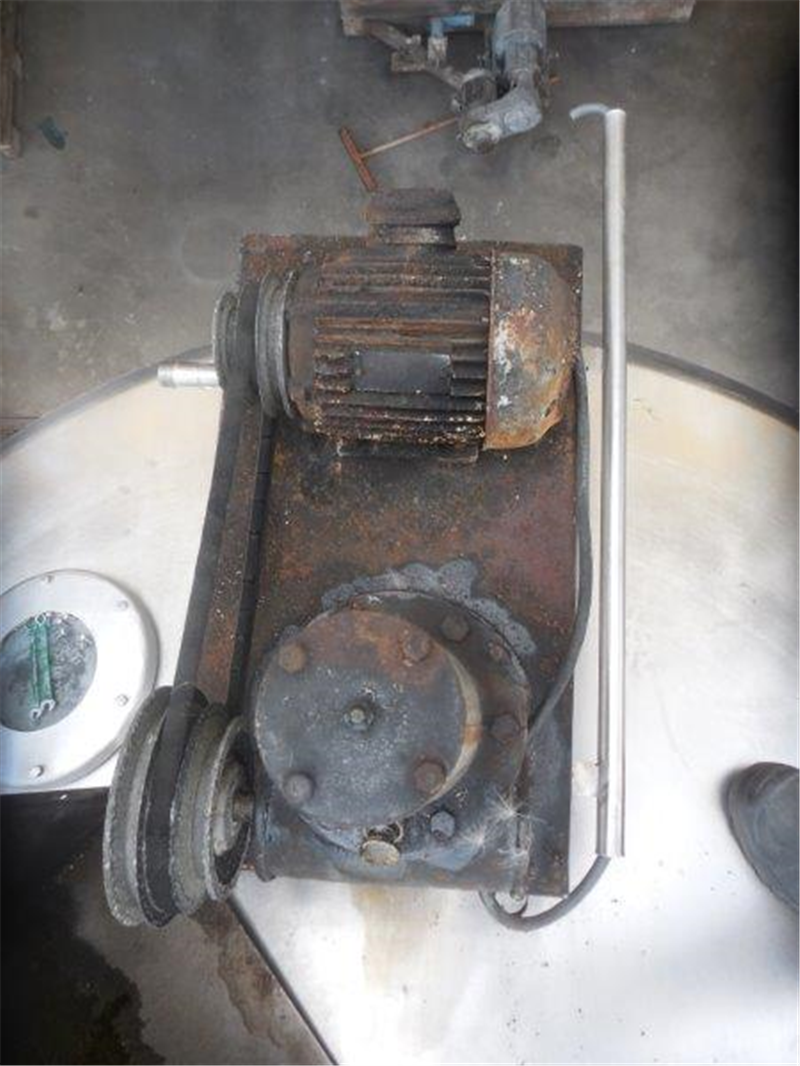

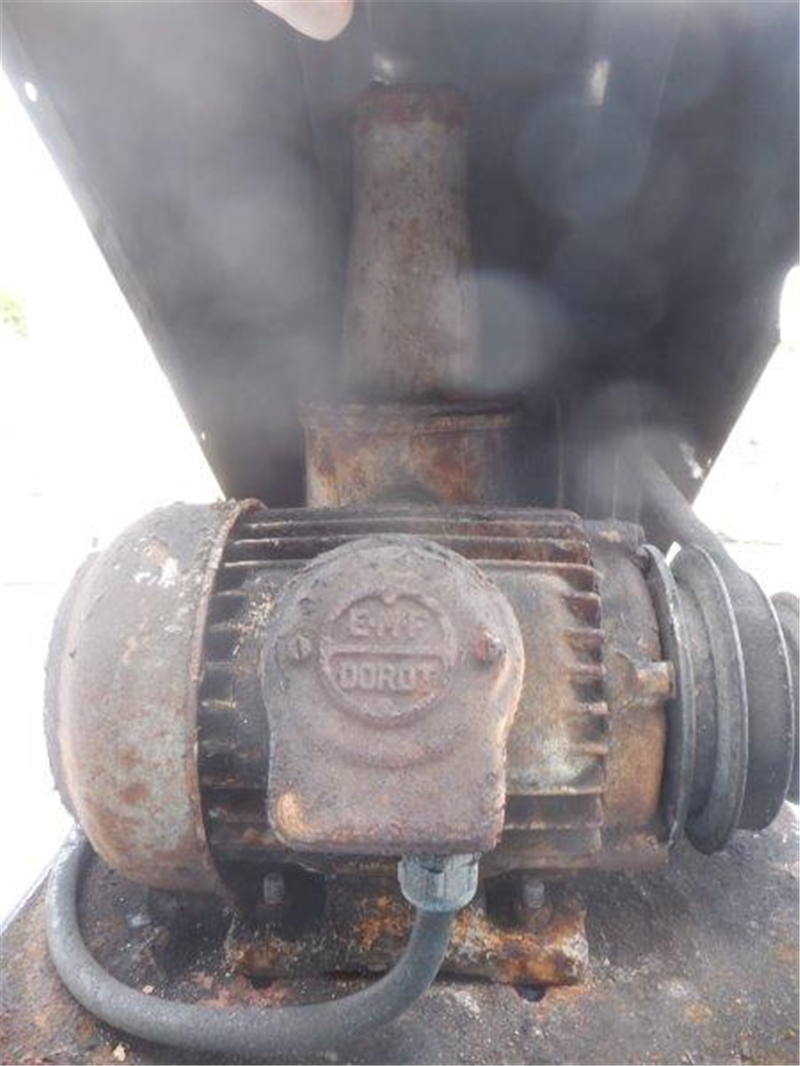

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |

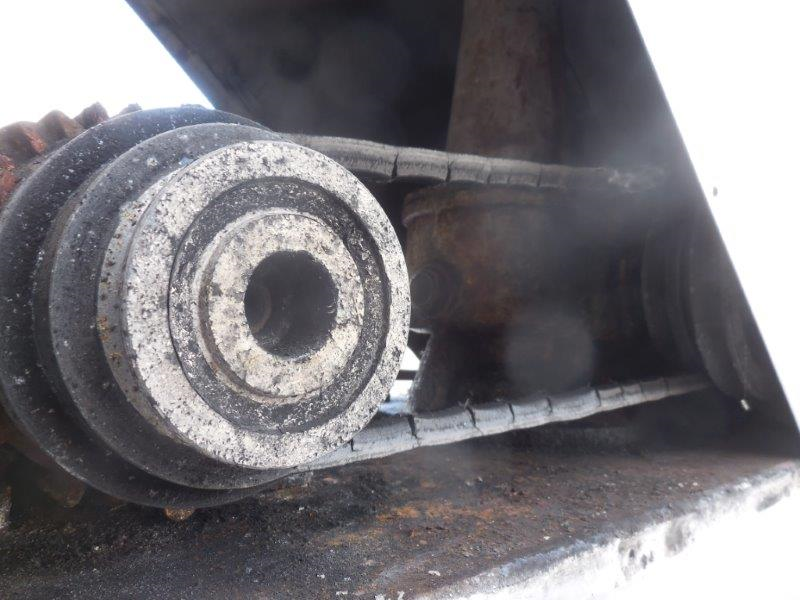

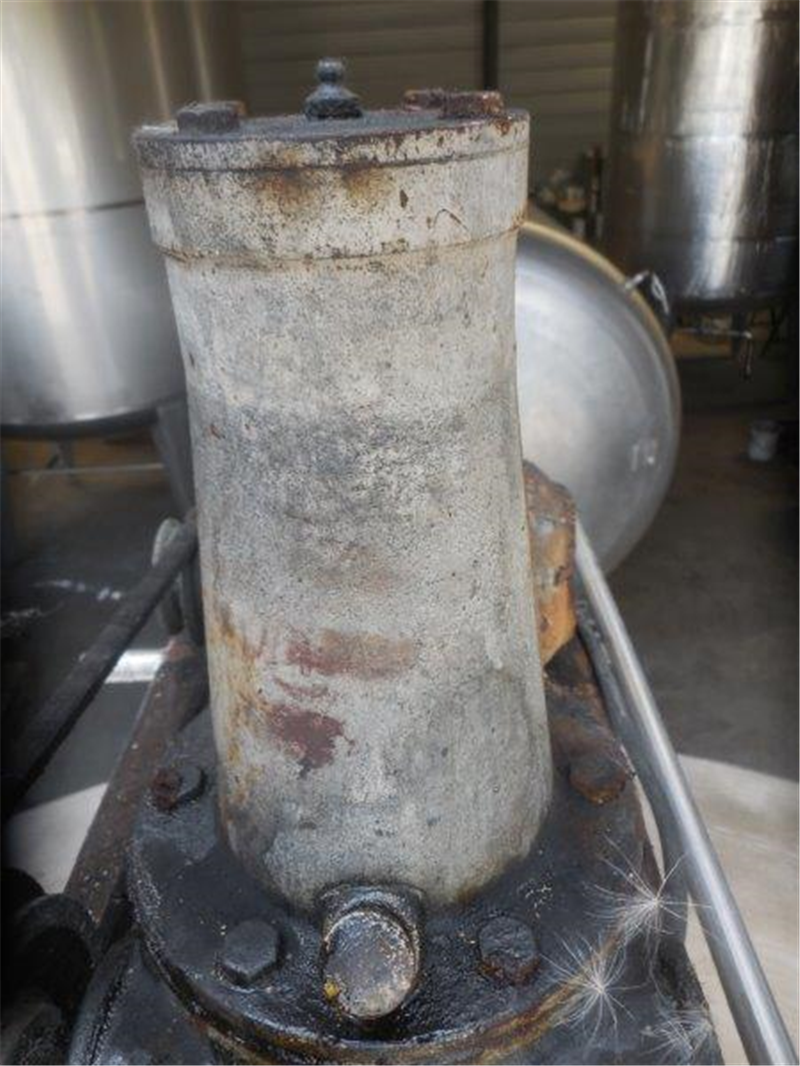

| Agitator 1: Drive Type | Reductor |
