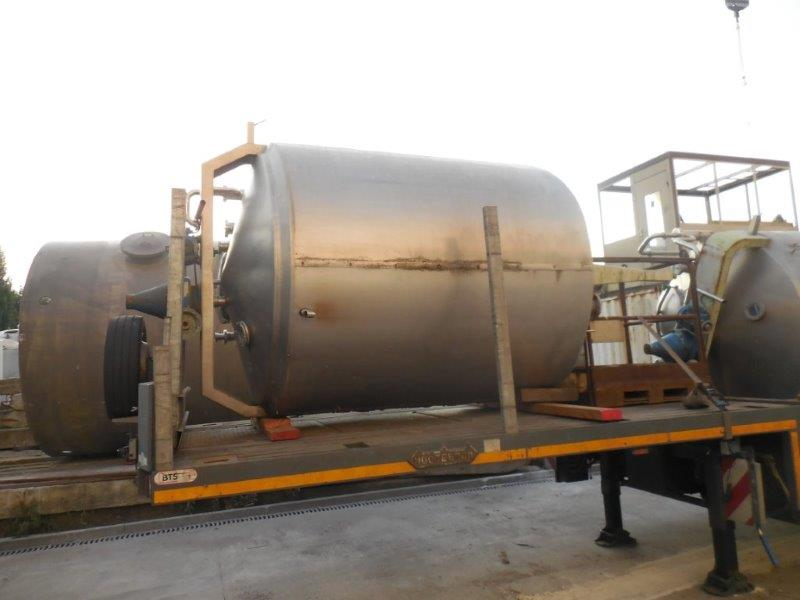

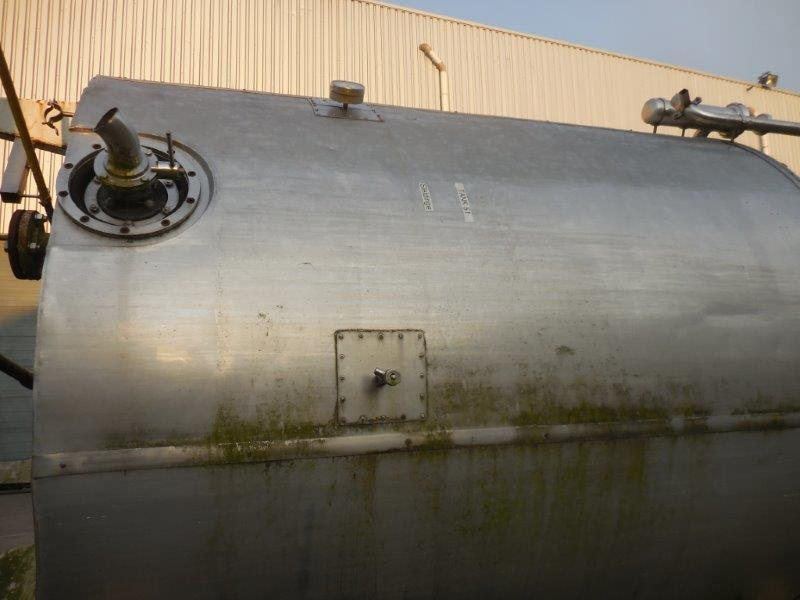

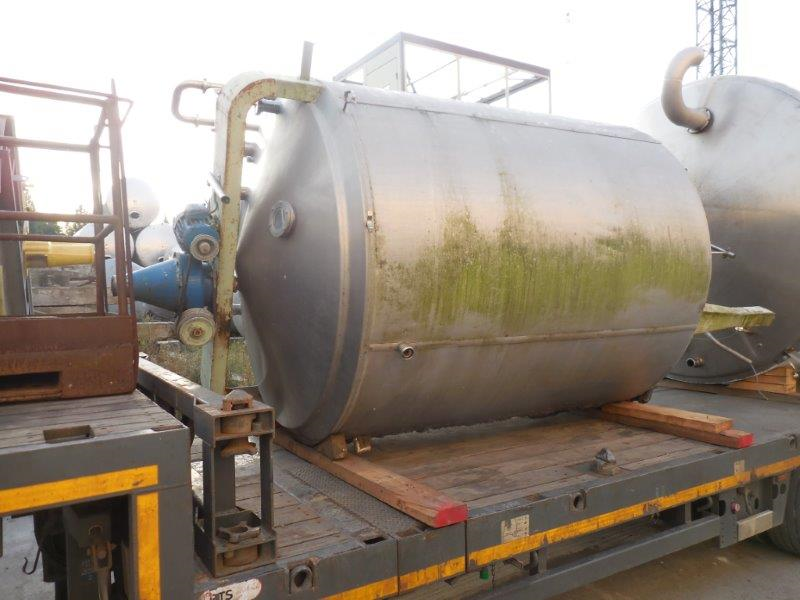

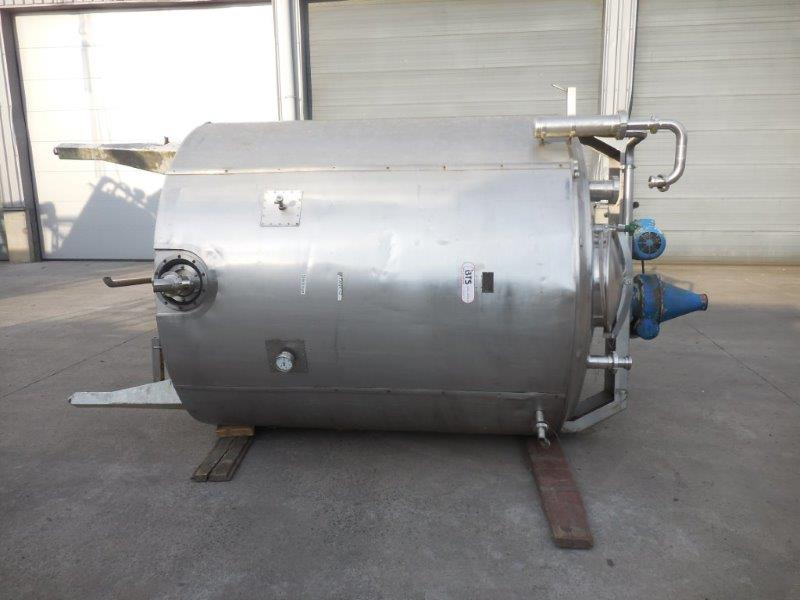

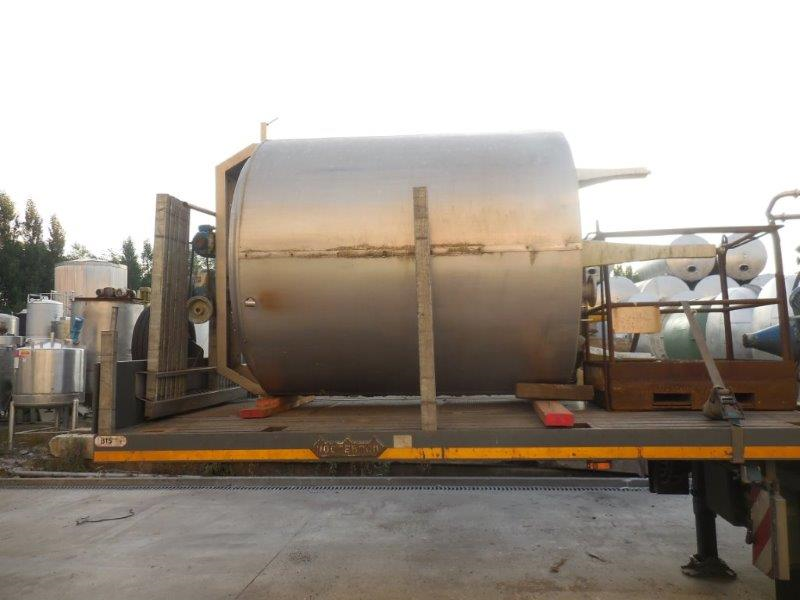

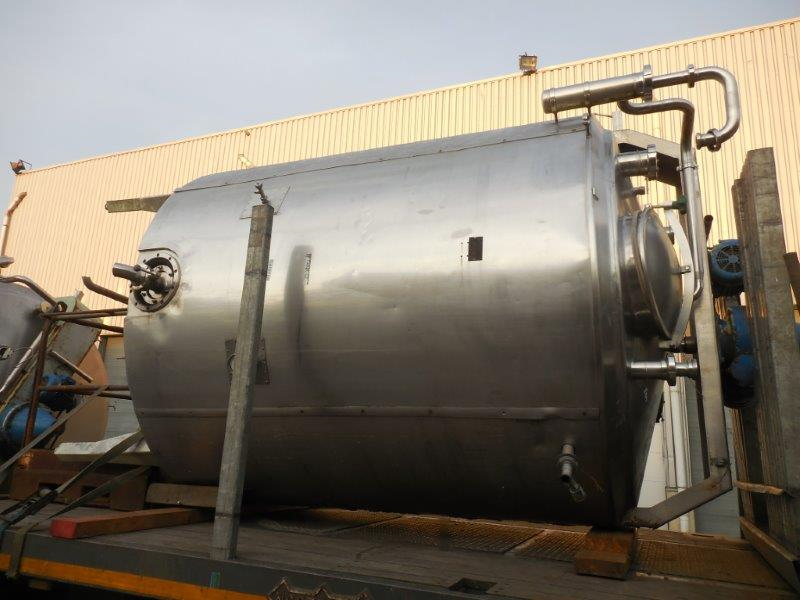

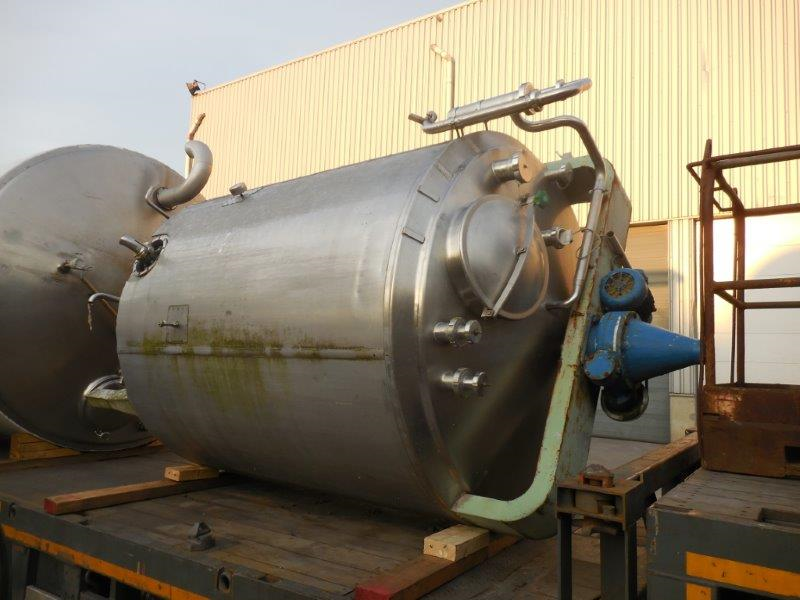

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4900 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.34.FC.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 4900 |
| Type tank | Mixing vessel |

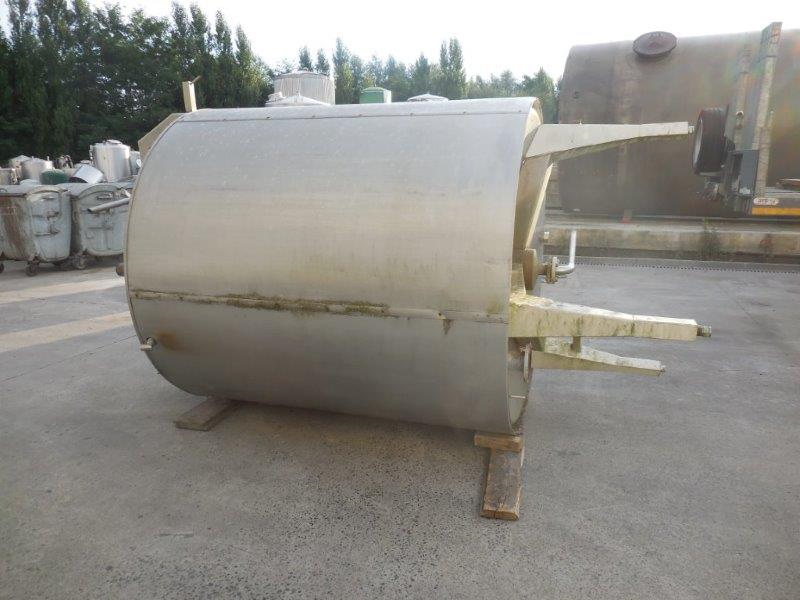

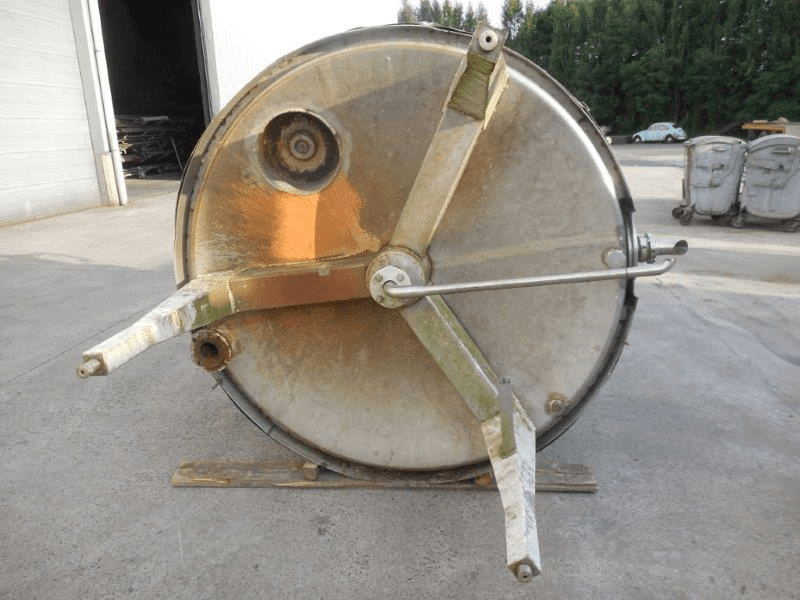

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inverted dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

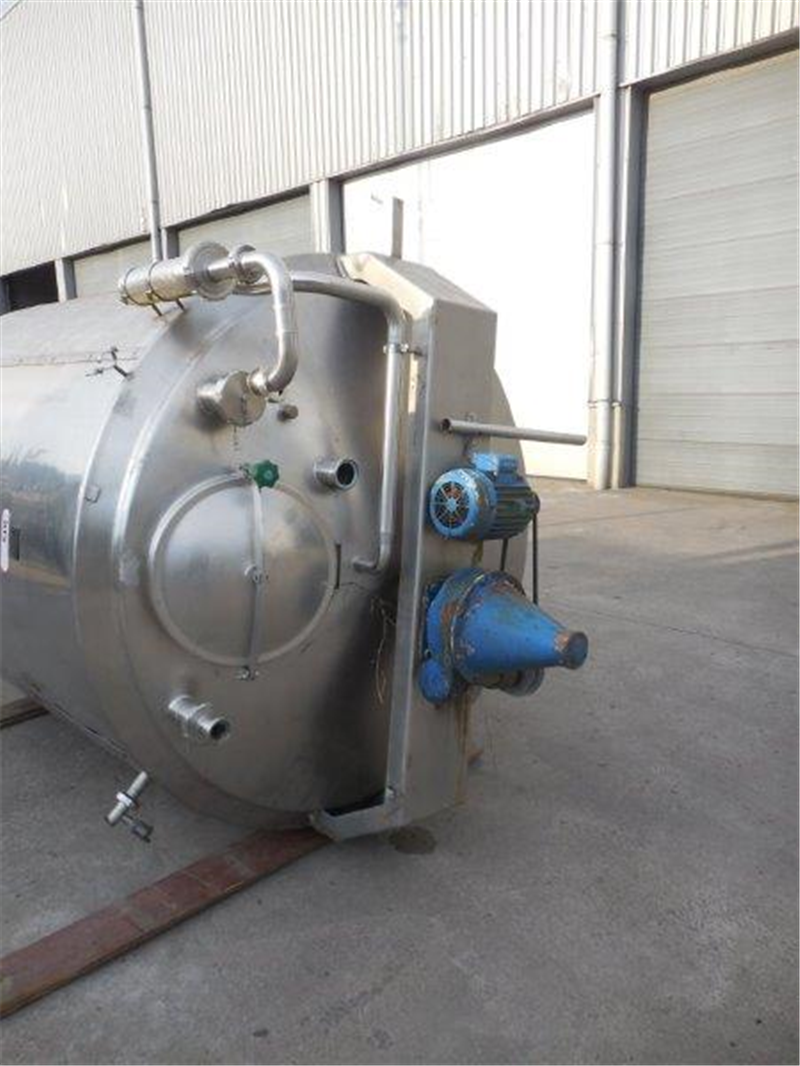

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500mm |
| Tank with total drain? | Yes |

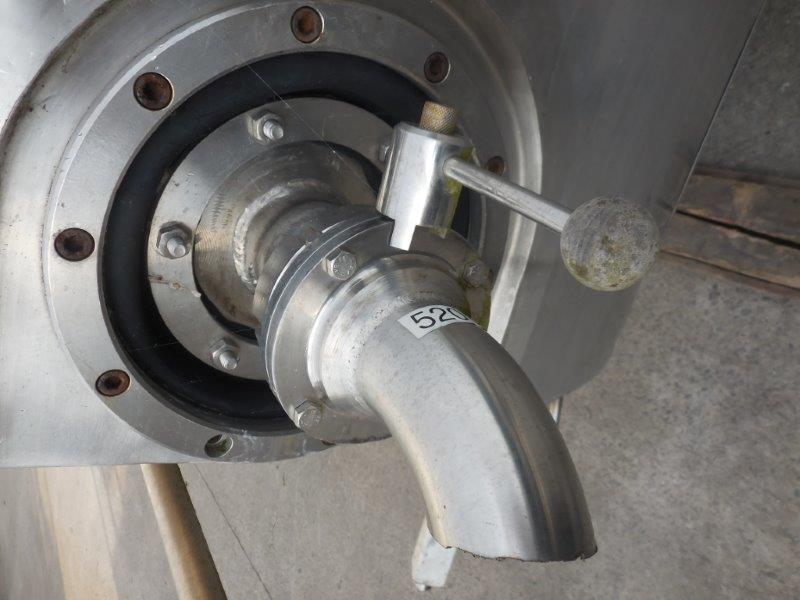

| Type of outlet (s) | Flens met vlinderklep |
| locality | B-7711 Belgium |
| Last application | Food |

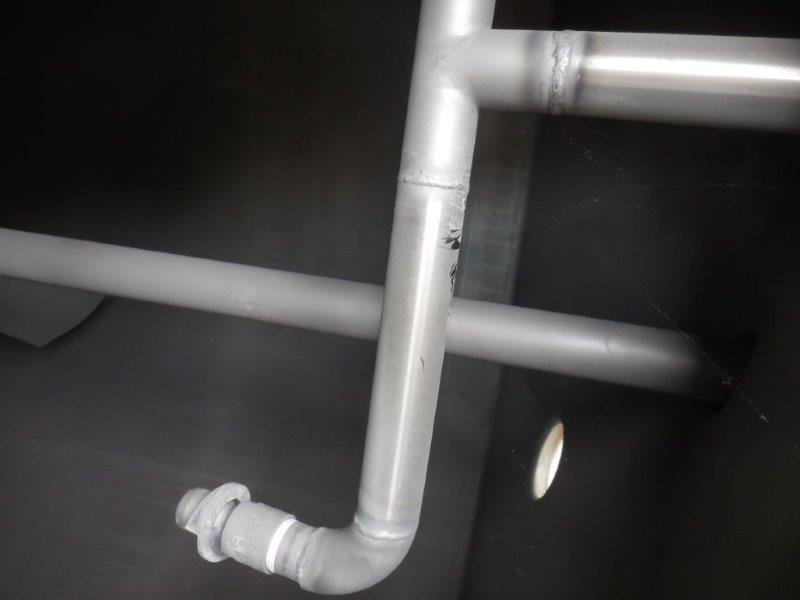

| Provision tank cleaning | CIP ball |
| Condition | Used |

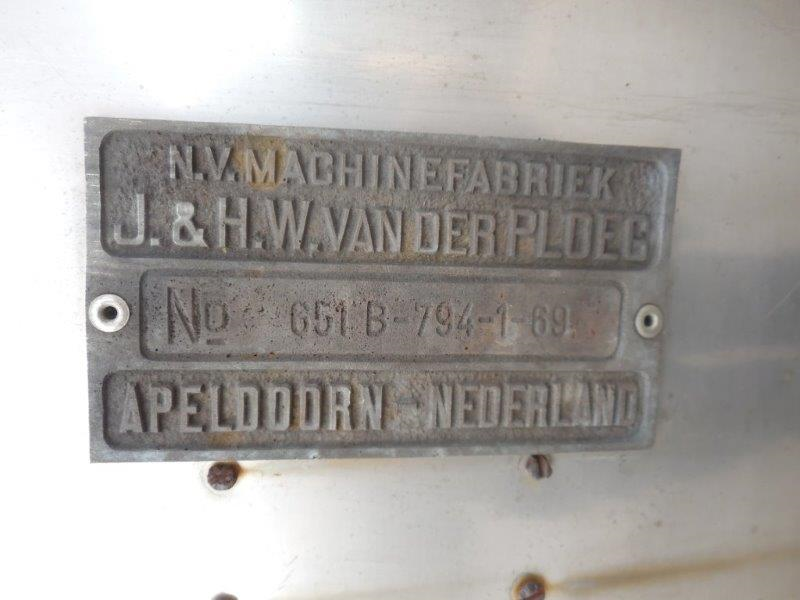

| Type plate manufacturer | Yes |
| Manufacturer | Van der ploeg |
| Drawing 1 | t0334FC01.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Outside diameter tank (mm) | 1980 |
| Total height (mm) | 3950 |
| Diameter tank (mm) | 1800 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

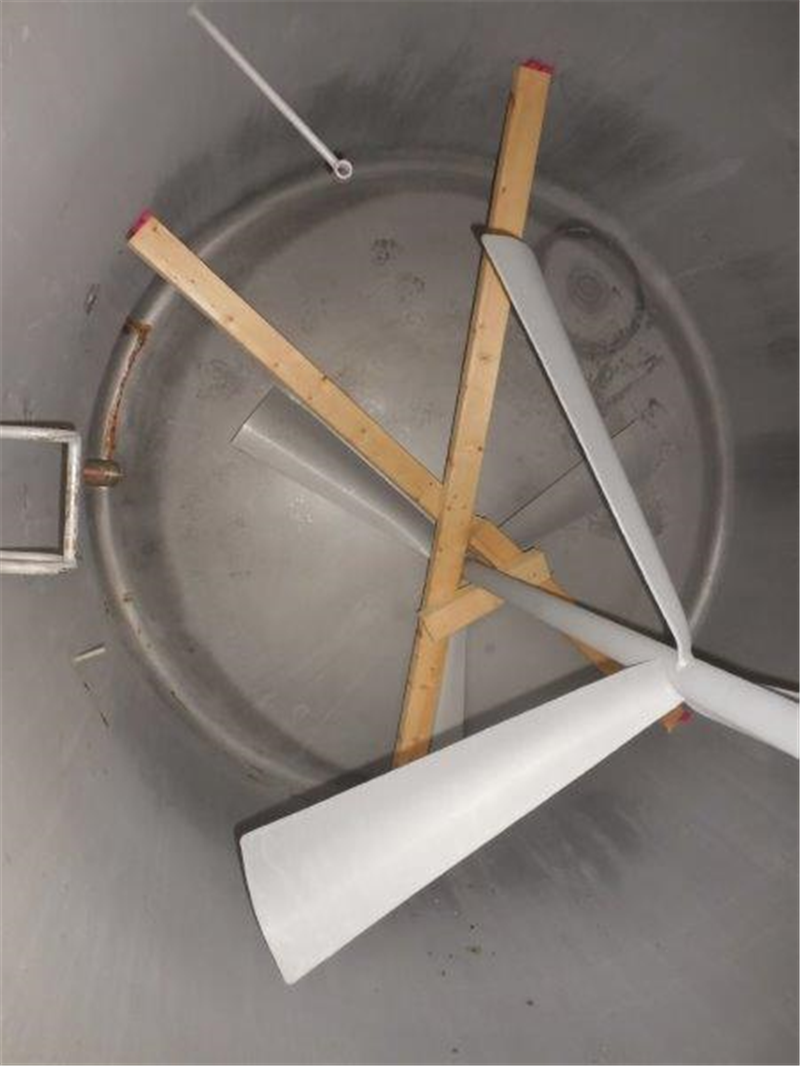

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Blade stirrer/Cross paddles |

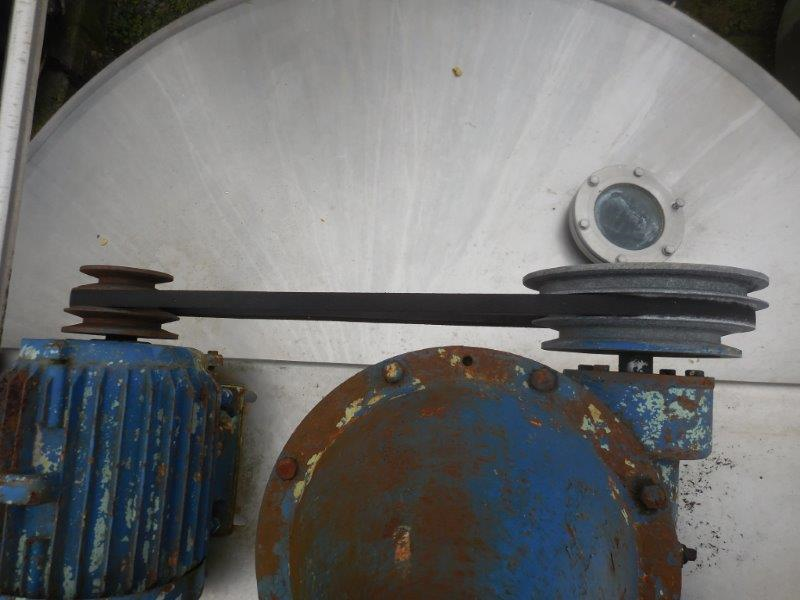

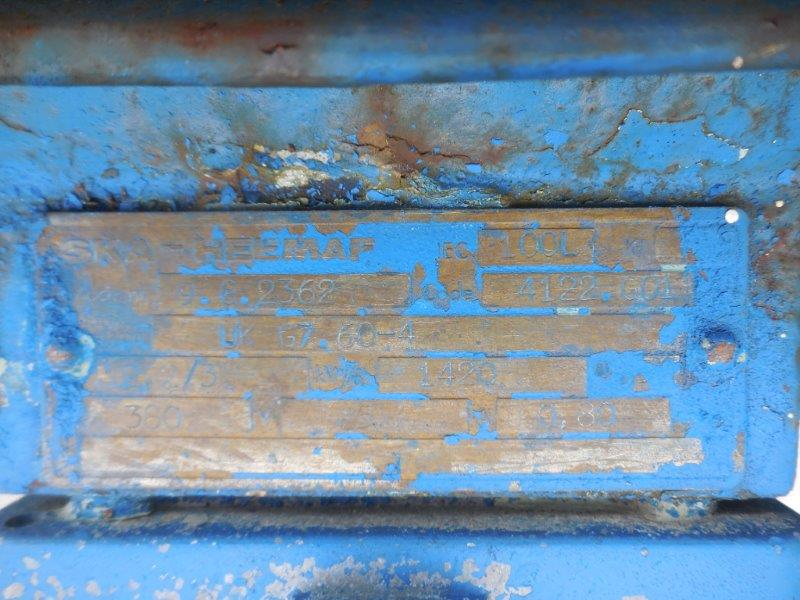

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Power (kw) | 2,2 |
| Agitator 1: Drive Type | Reductor |
