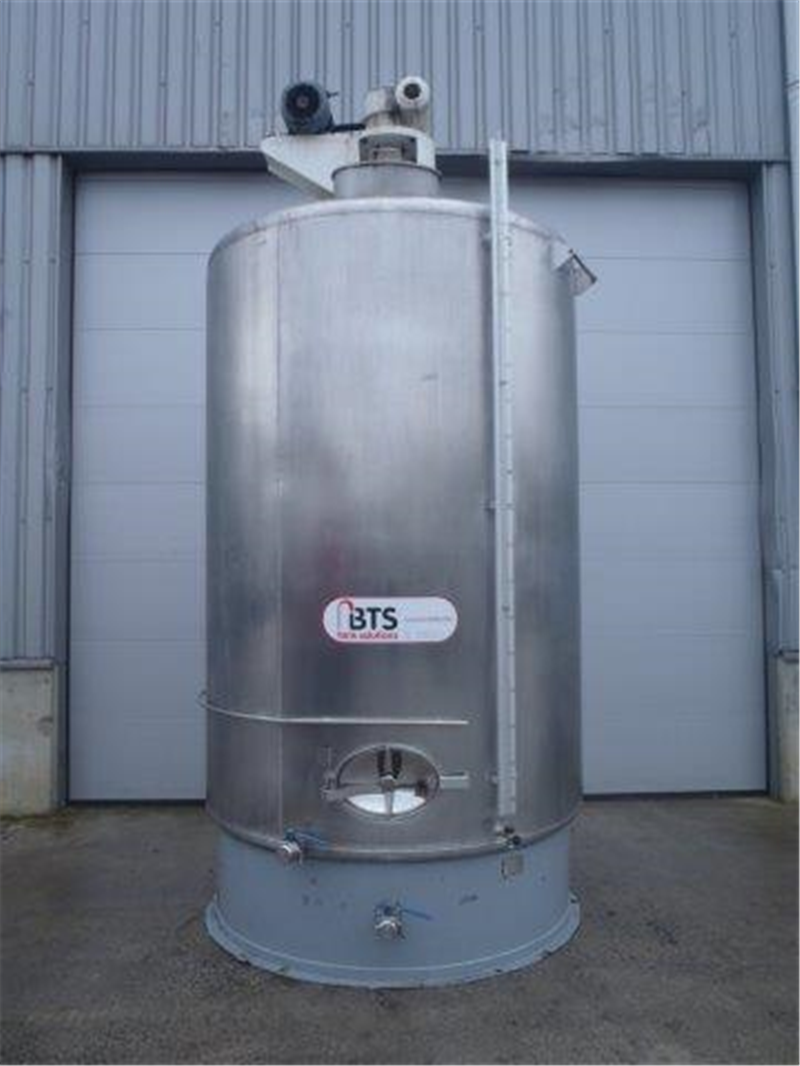

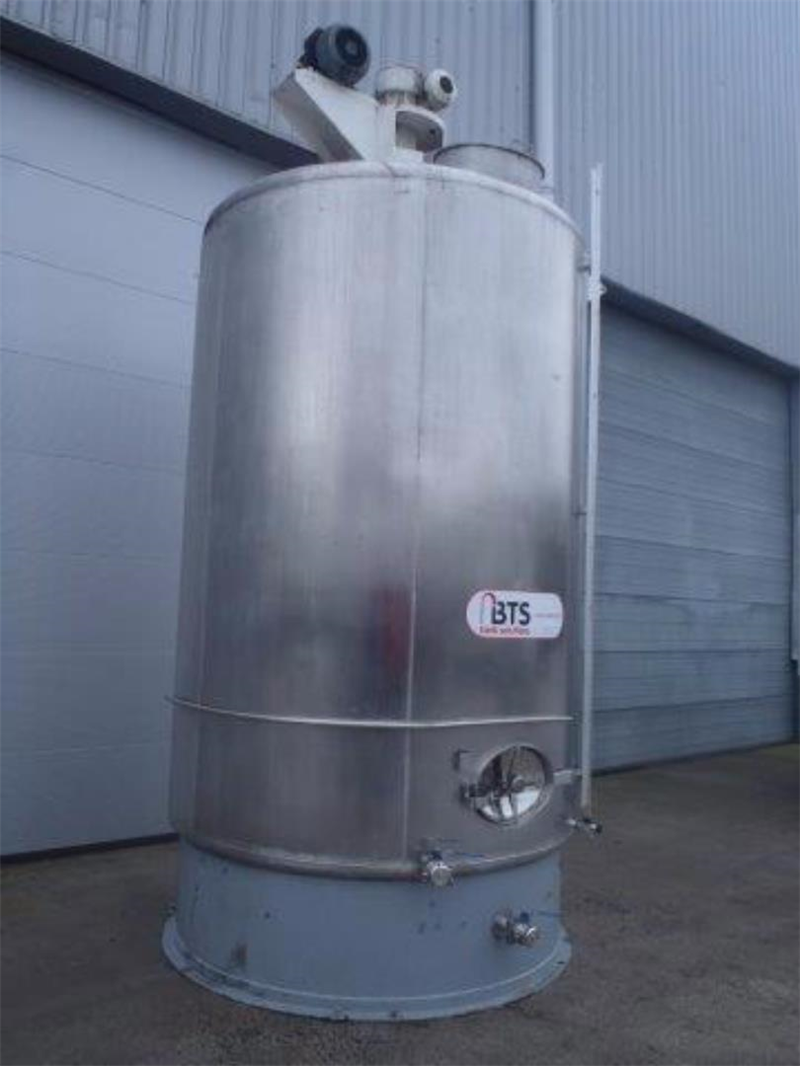

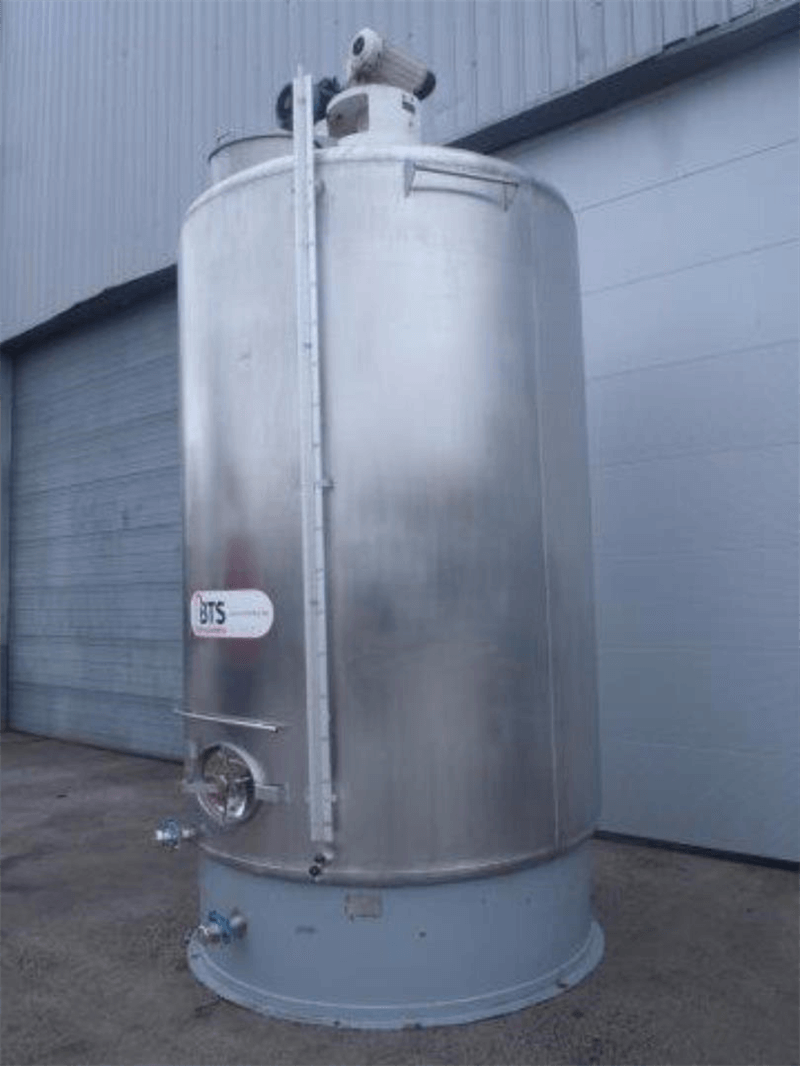

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 9000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.33.MU.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 9000 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |

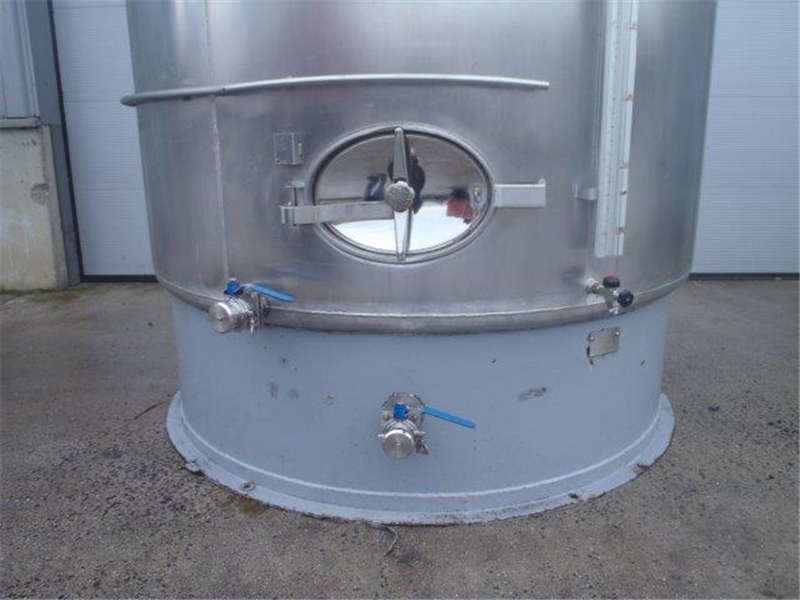

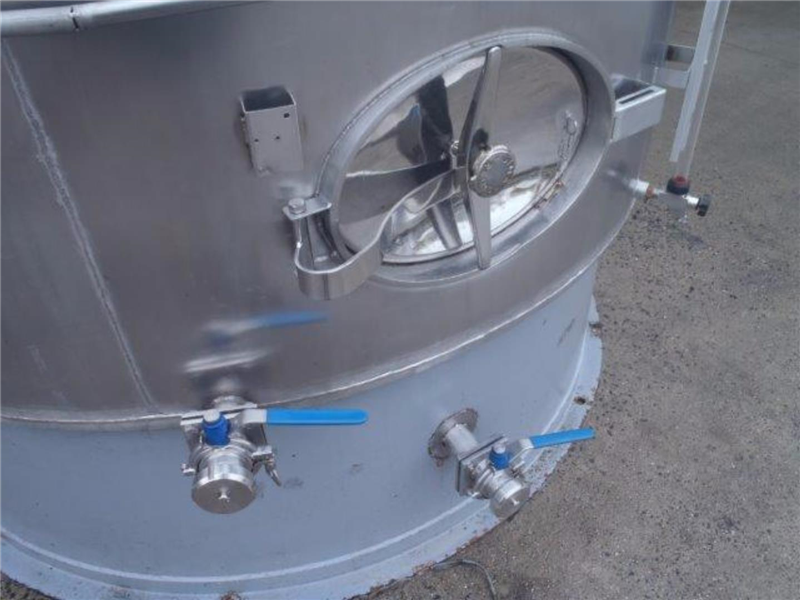

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | Ø405mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Melkkoppeling NW 65 |
| Diameter of outlet (mm) | 65 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0333MU02.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Cylindrical length (mm) | 2880 |
| Height bottom (mm) | 150 |
| Total height (mm) | 4480 |
| Diameter tank (mm) | 1980 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

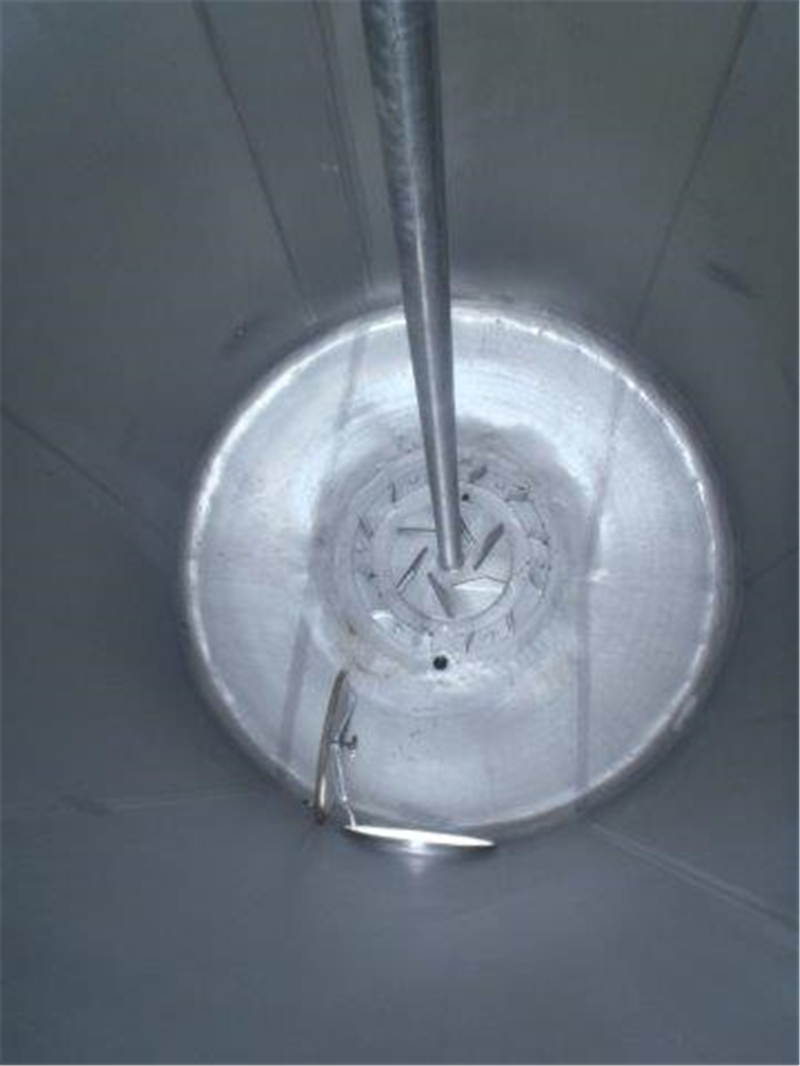

| Number of agitators | 1 |

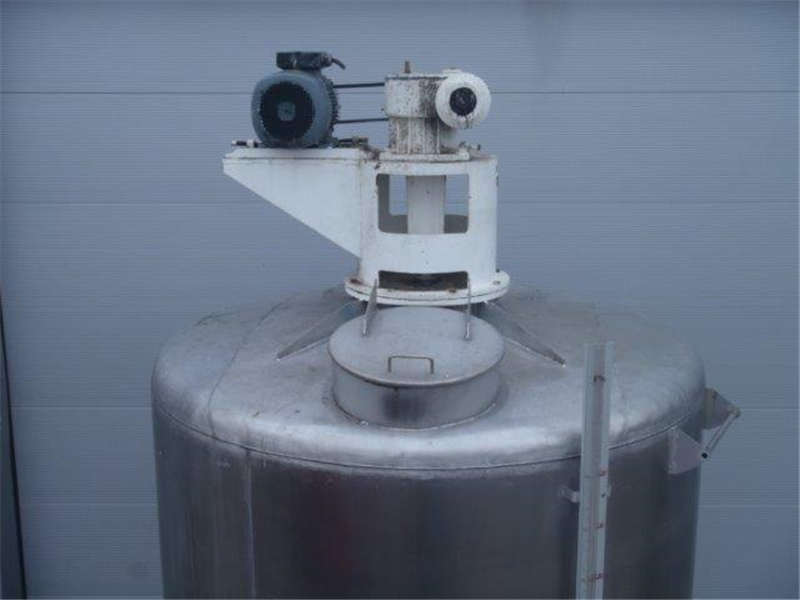

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

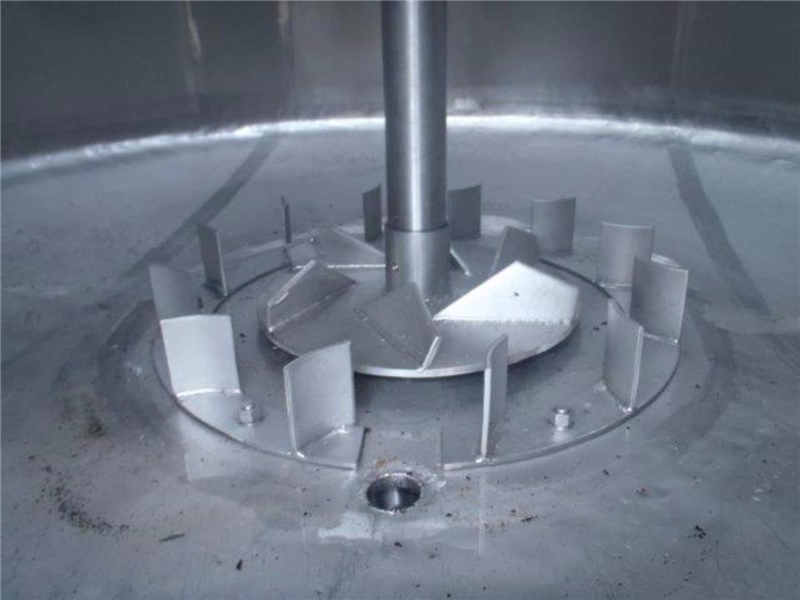

| Agitator 1: stirring element type | Dissolver/Disc stirrer |
| Agitator 1: Length (mm) | 2880 |

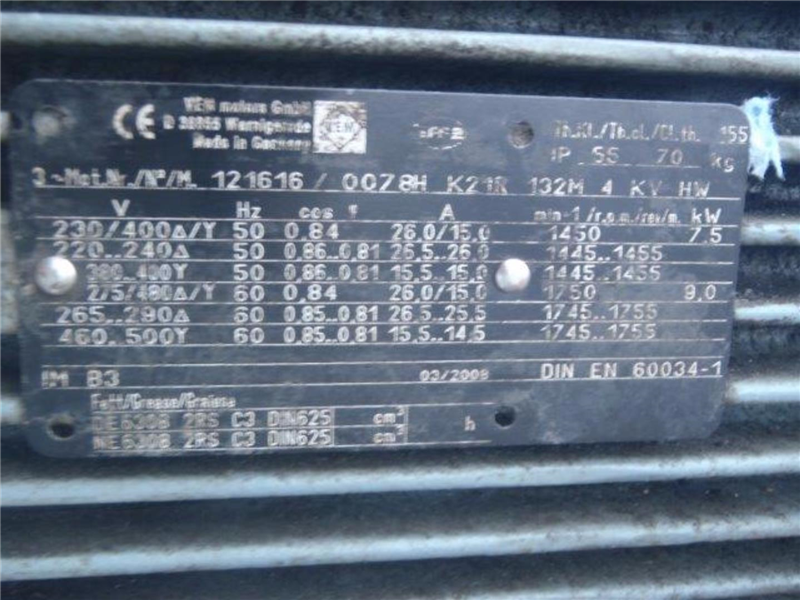

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 7,5 |
| Agitator 1: Drive Type | Reductor |
