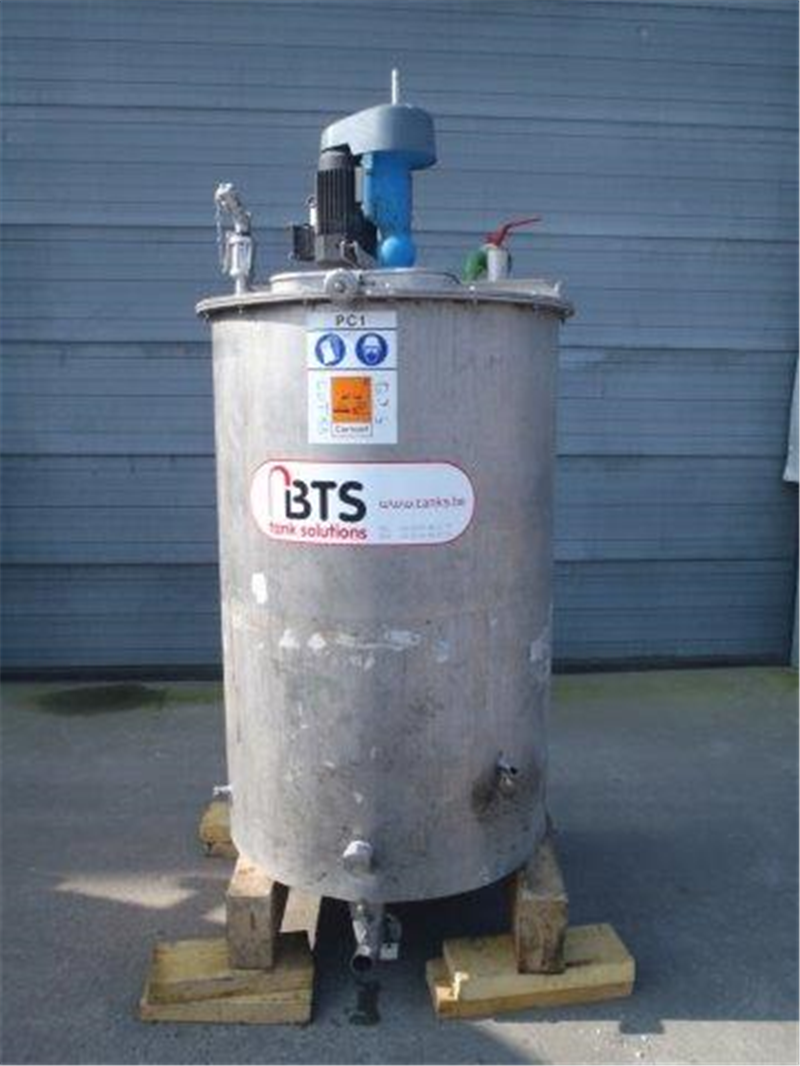

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 950 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.33.ML.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 950 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

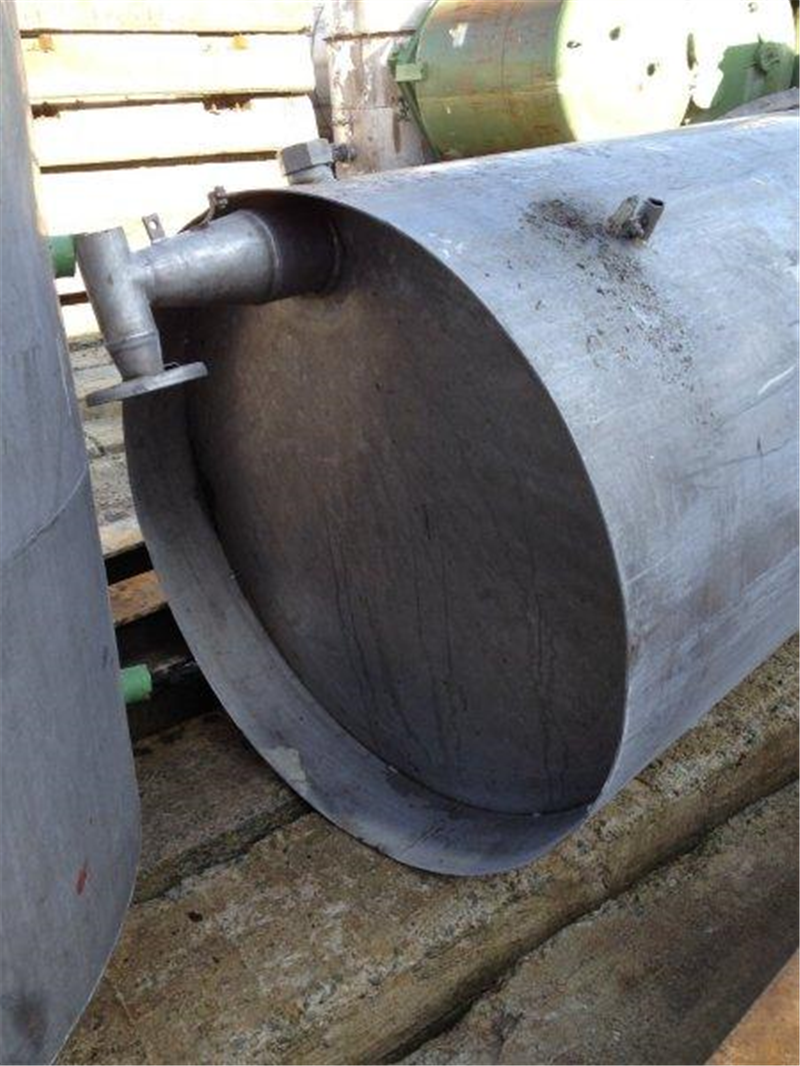

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |

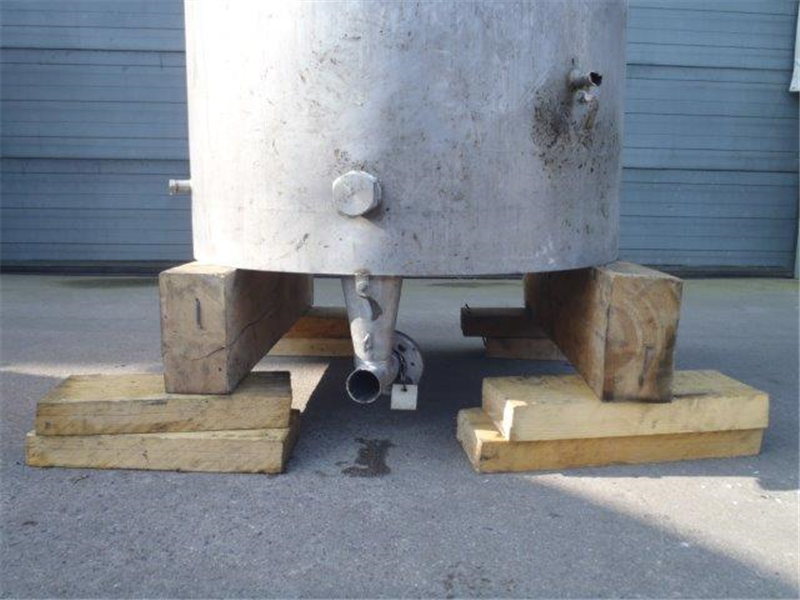

| Tank with total drain? | Yes |

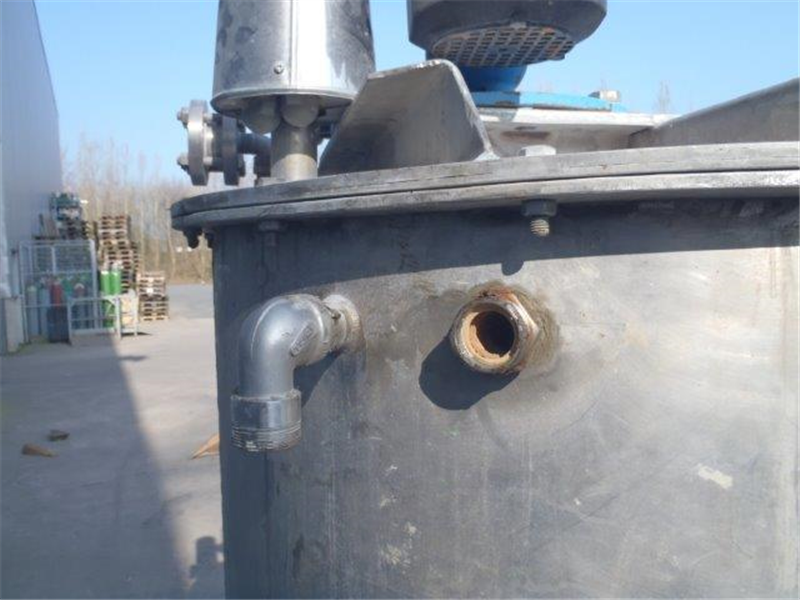

| Type of outlet (s) | Flens |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 600 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0333ML04.pdf |
| Top side | |
|---|---|

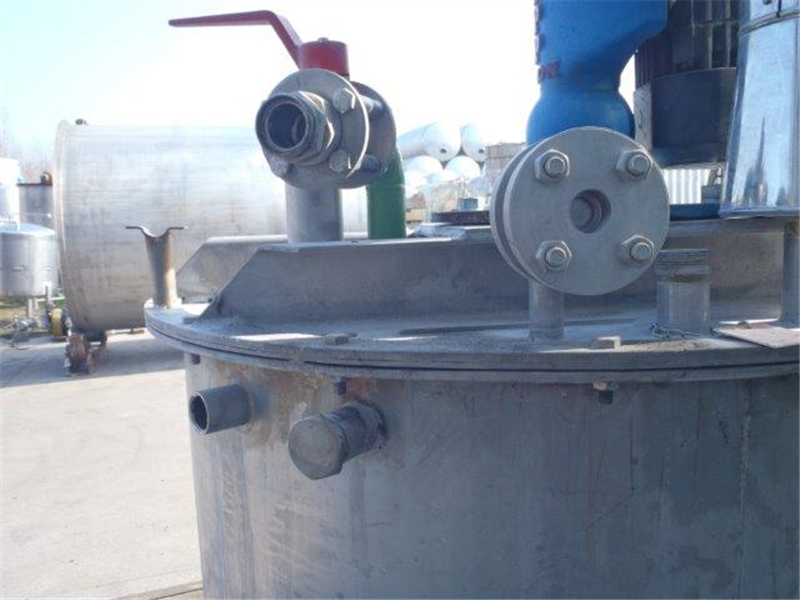

| Configuration top-side | Partly open |

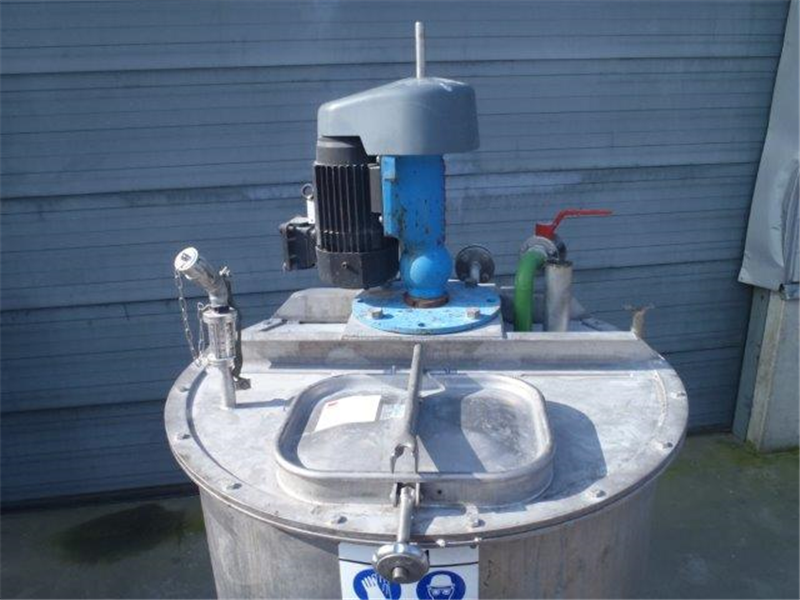

| Detail top side | Bolted cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,1 |
| Periphery (mm) | 3060 |
| Cylindrical length (mm) | 1360 |
| Total height (mm) | 2490 |
| Diameter tank (mm) | 950 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

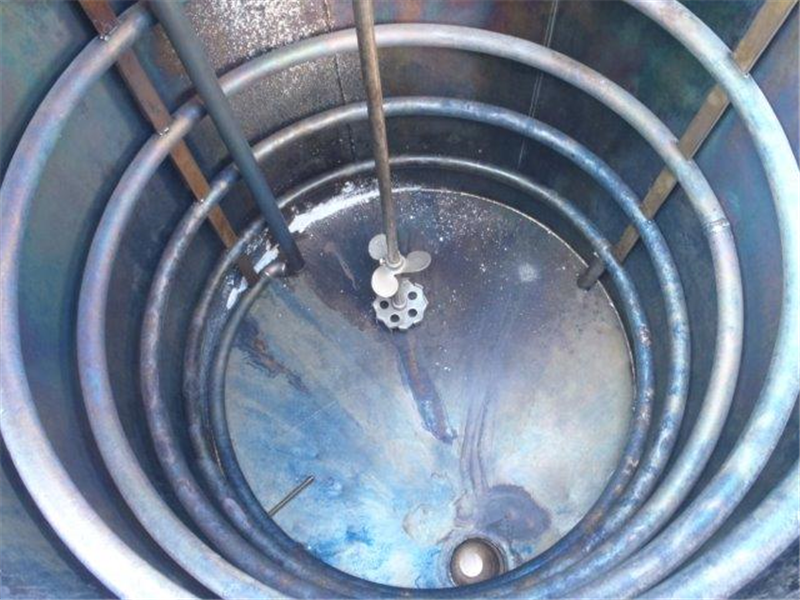

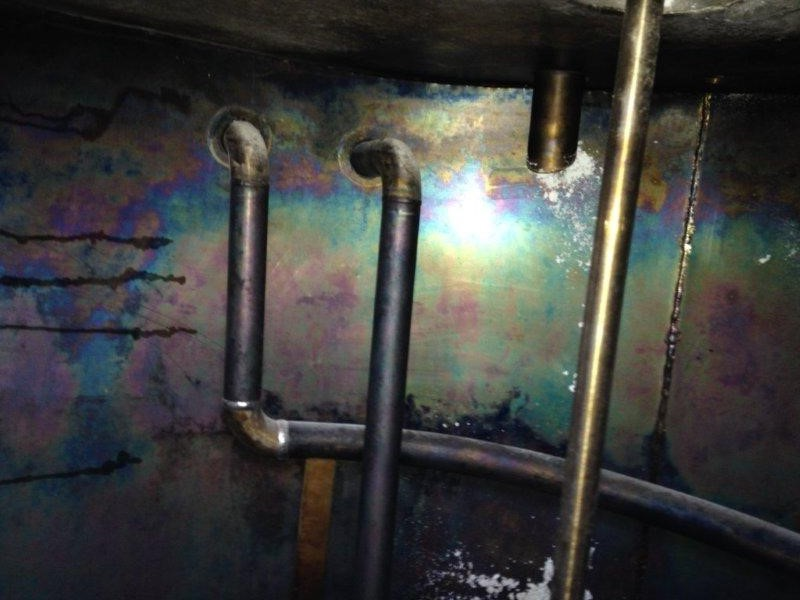

| Heating 1: Type | Heating coil on part of the cylinder |
| Agitators | |
|---|---|
| Number of agitators | 1 |

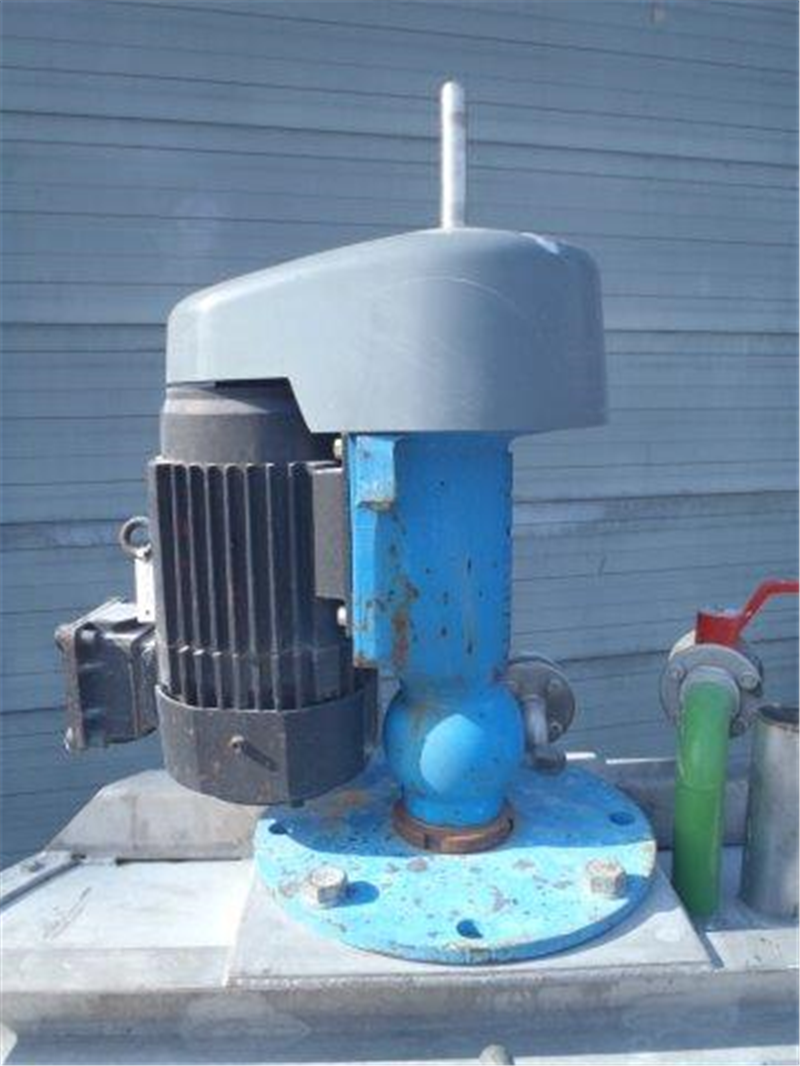

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Propeller |

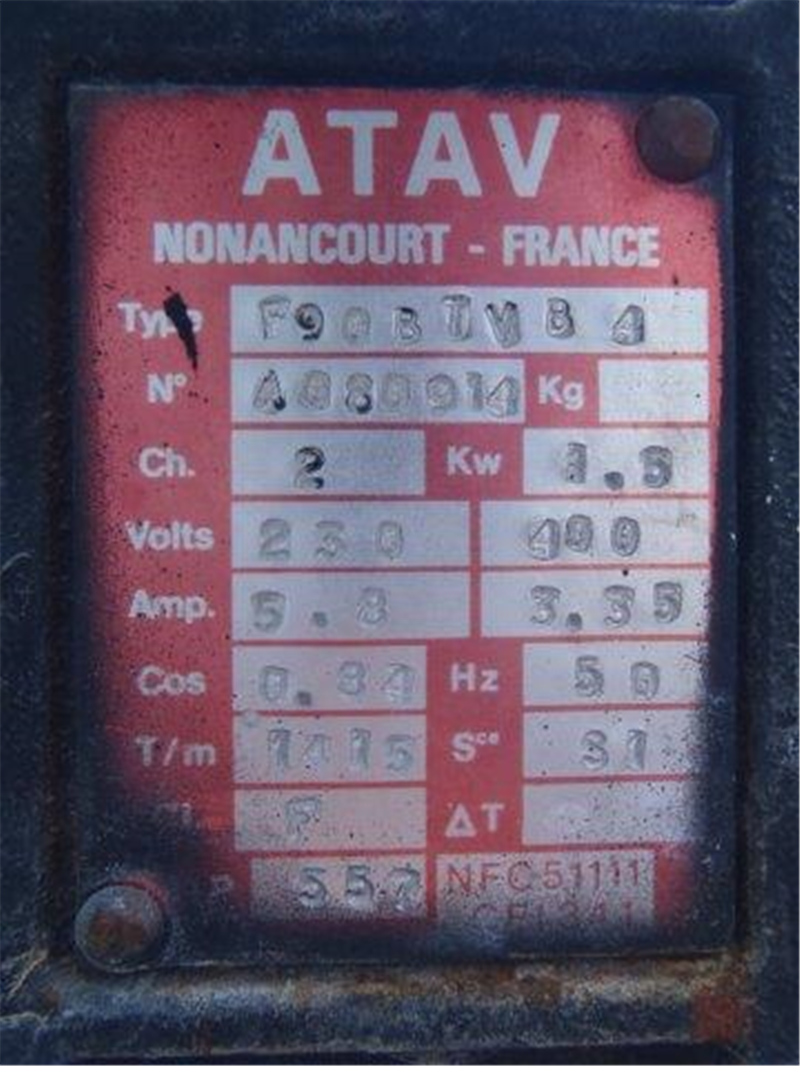

| Agitator 1: Engine Type | electric motor |

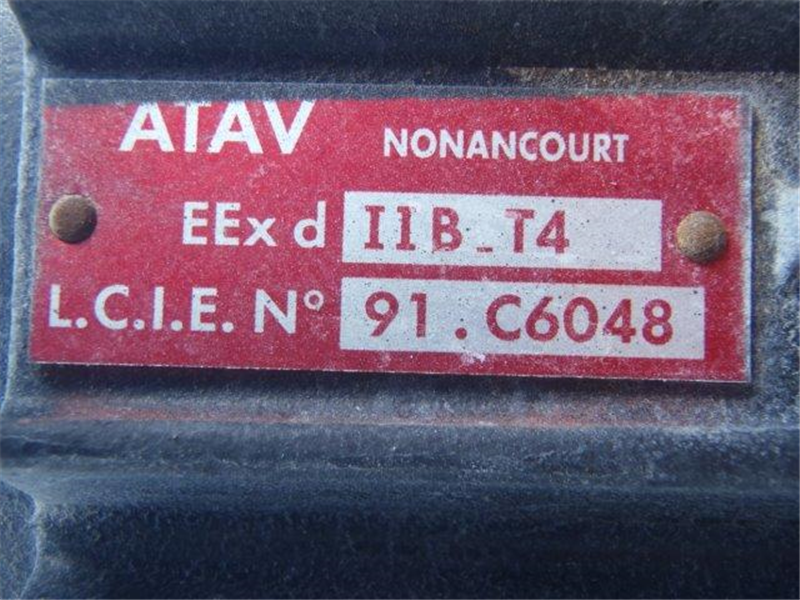

| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
