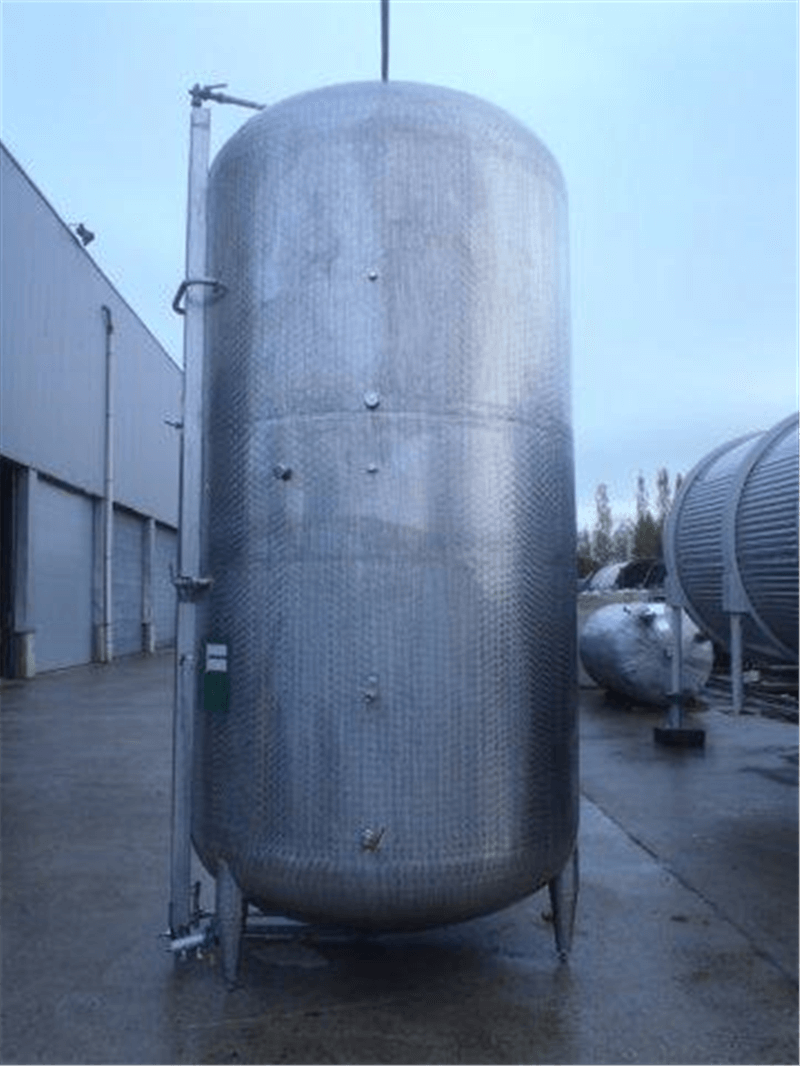

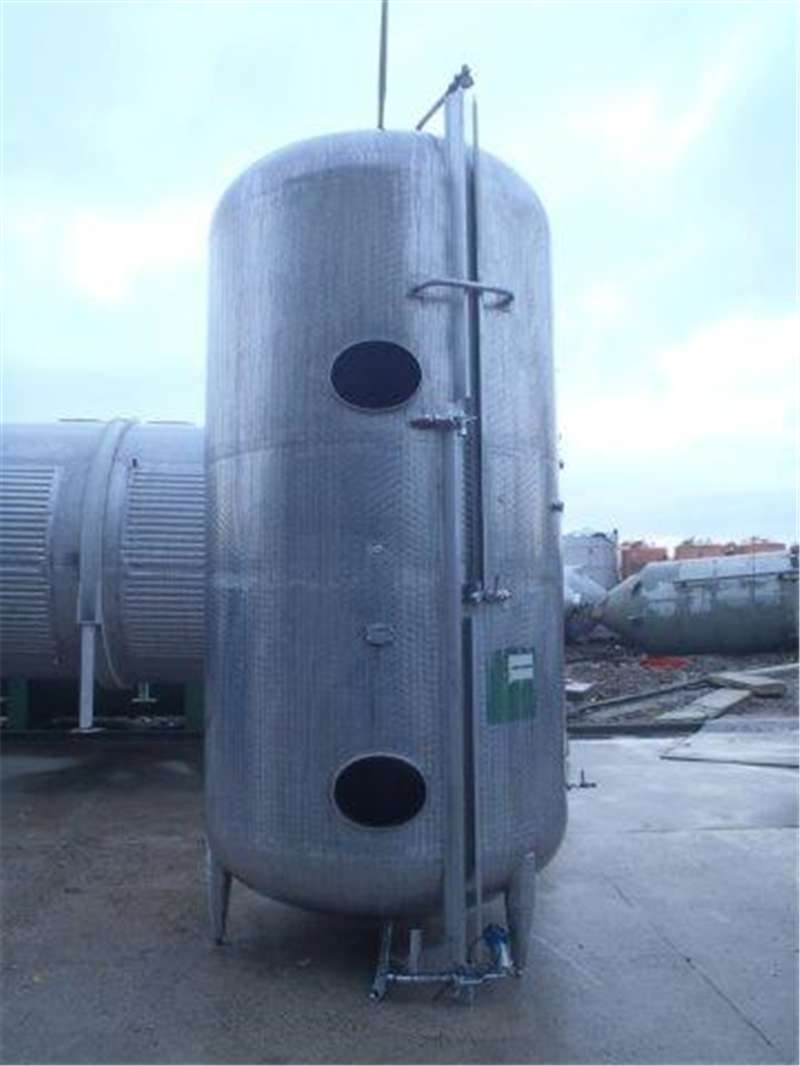

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.32.BY.01 |
| Material | Stainless steel 304 |

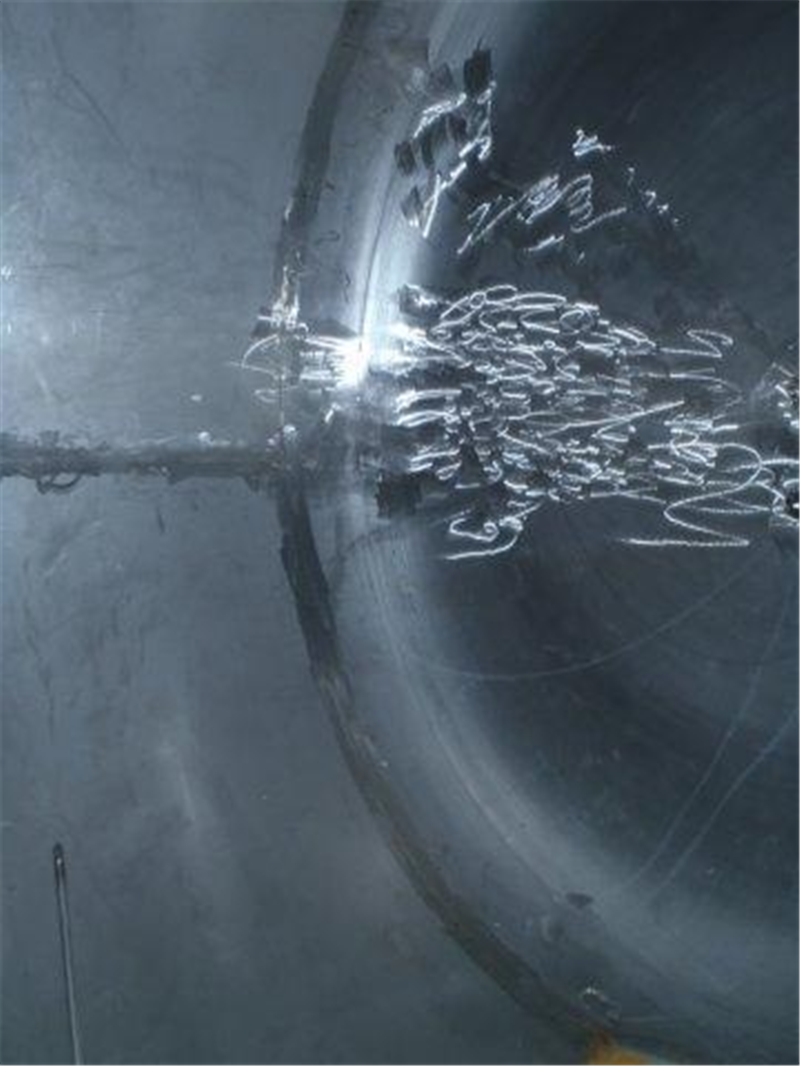

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 0,49 |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

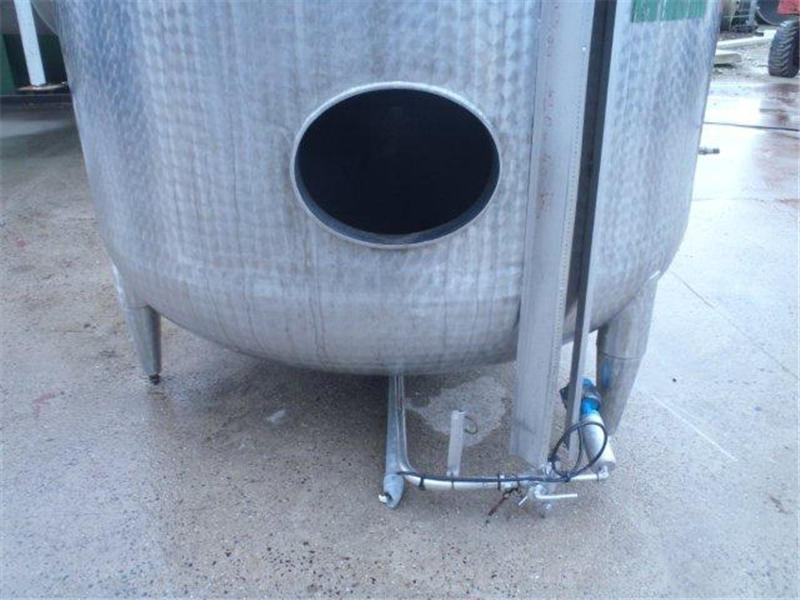

| Number of manhole | 2 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 420*324mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Mof 1 1/2" |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Weight (kg) | 660 |
| Condition | Used |

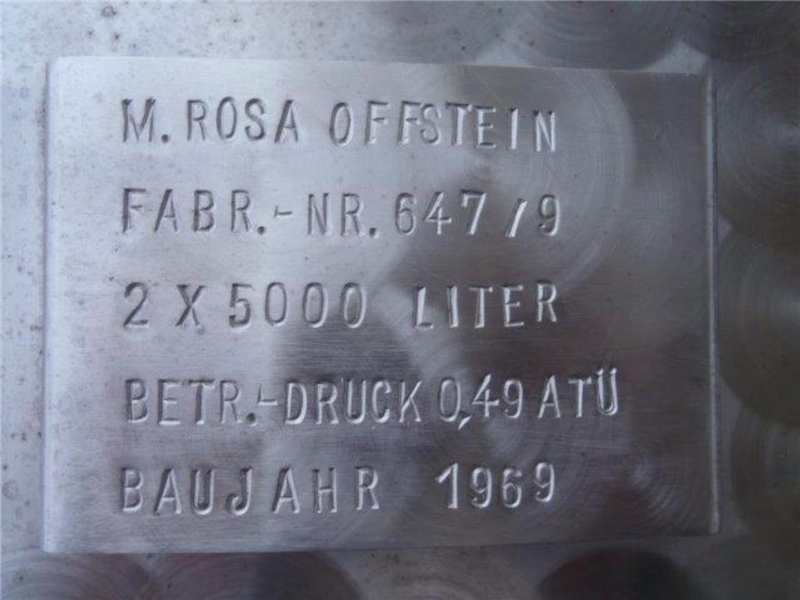

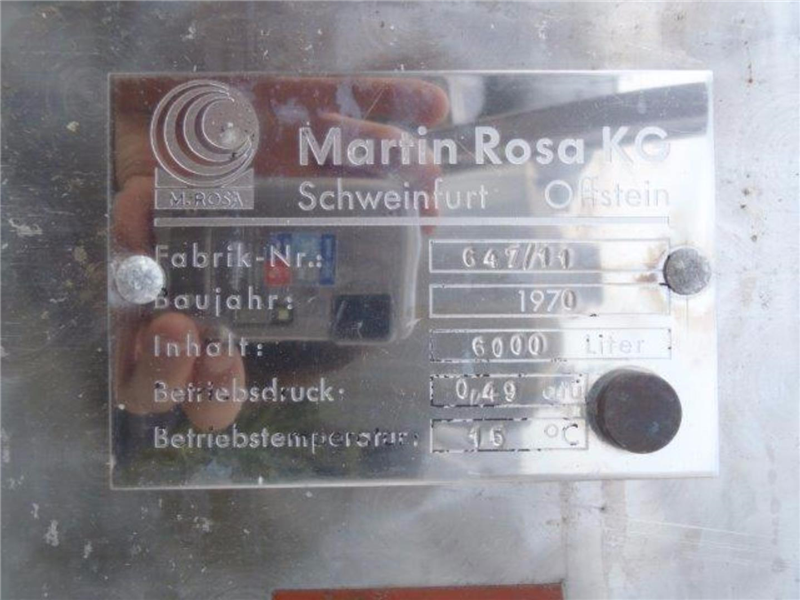

| Type plate manufacturer | Yes |
| Manufacturer | Martin Rosa |
| Year Built | 1970 |
| Construction data available | No |
| Working temperature (° C) | 15 |
| Drawing 1 | t0332BY01.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Cylindrical length (mm) | 3150 |
| Height bottom (mm) | 150 |
| Total height (mm) | 4600 |
| Diameter tank (mm) | 1985 |
| Insulation | |
|---|---|
| Insulation | No |
