Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 20000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.29.LH.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 20000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |

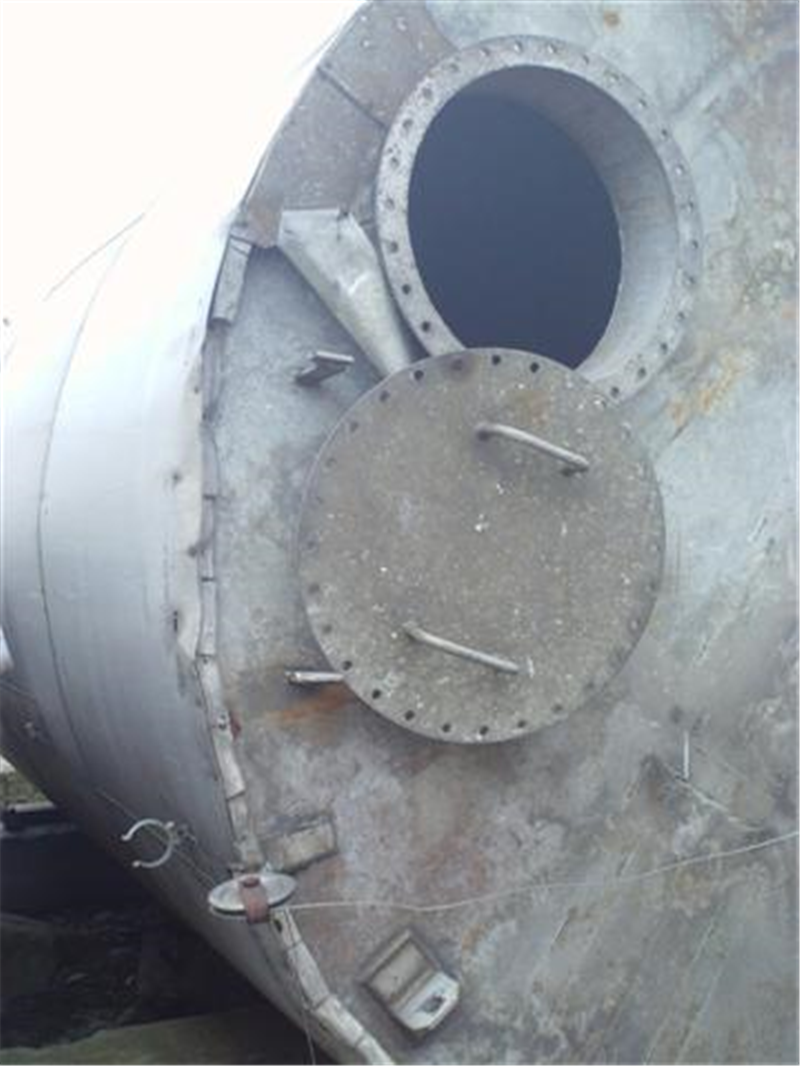

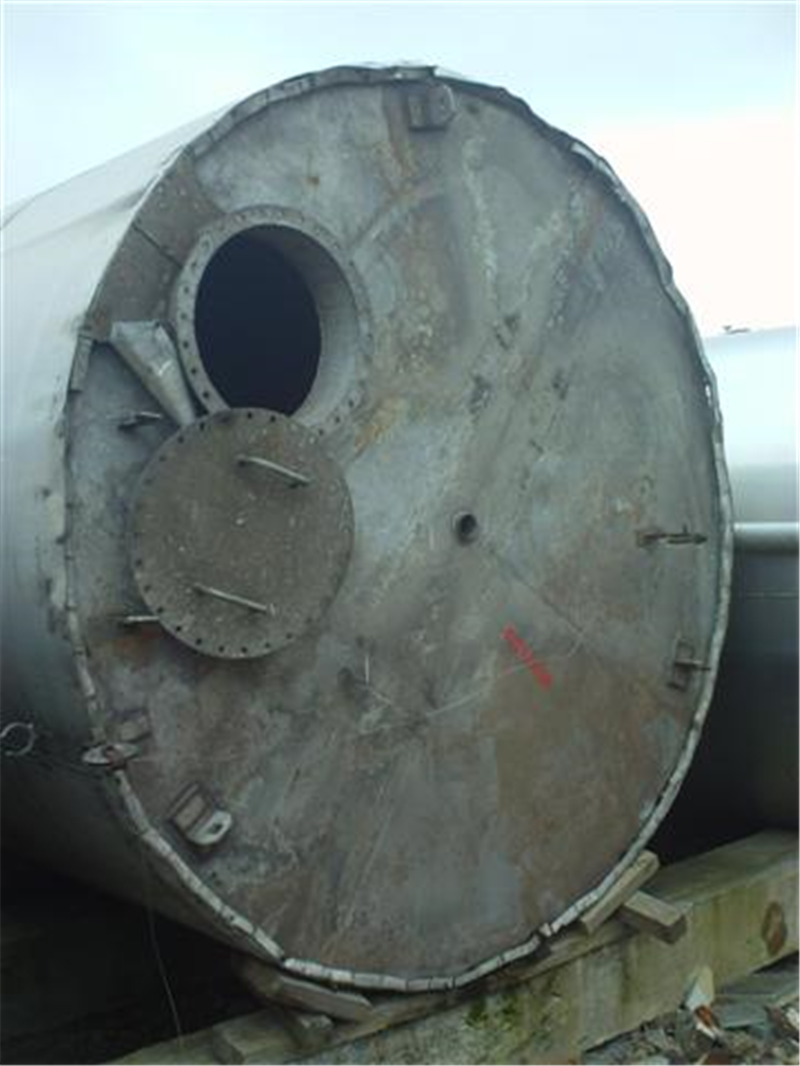

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500mm |
| Tank with total drain? | No |

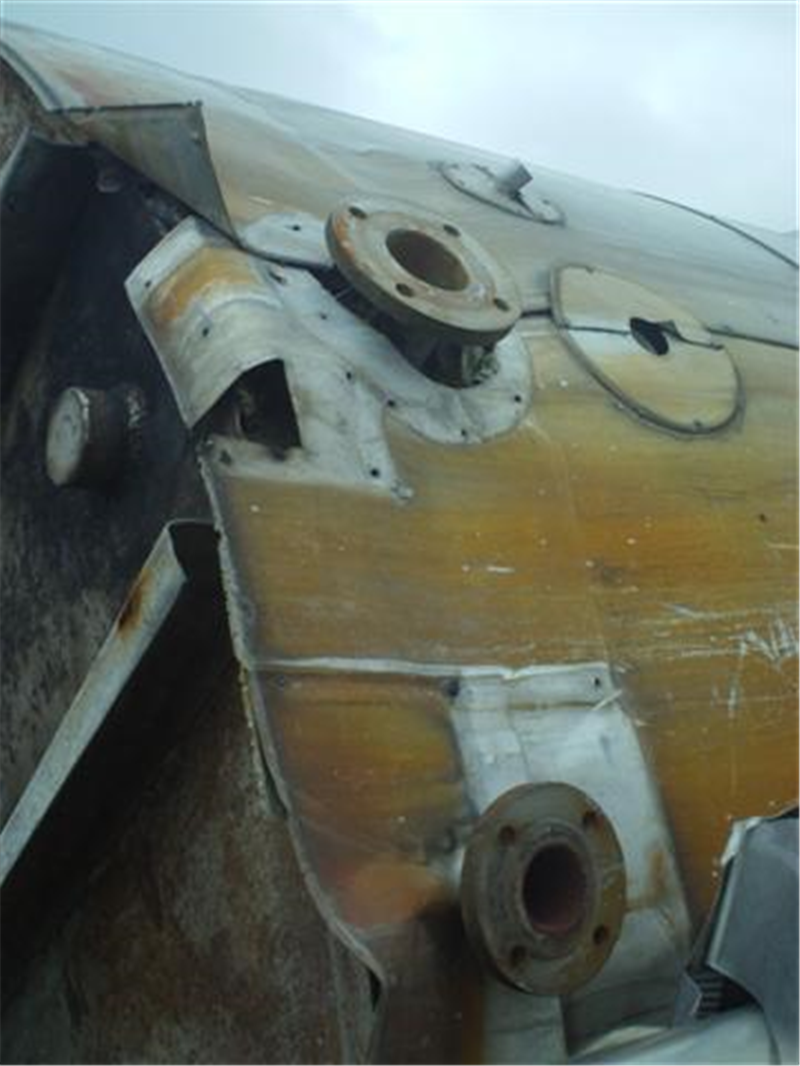

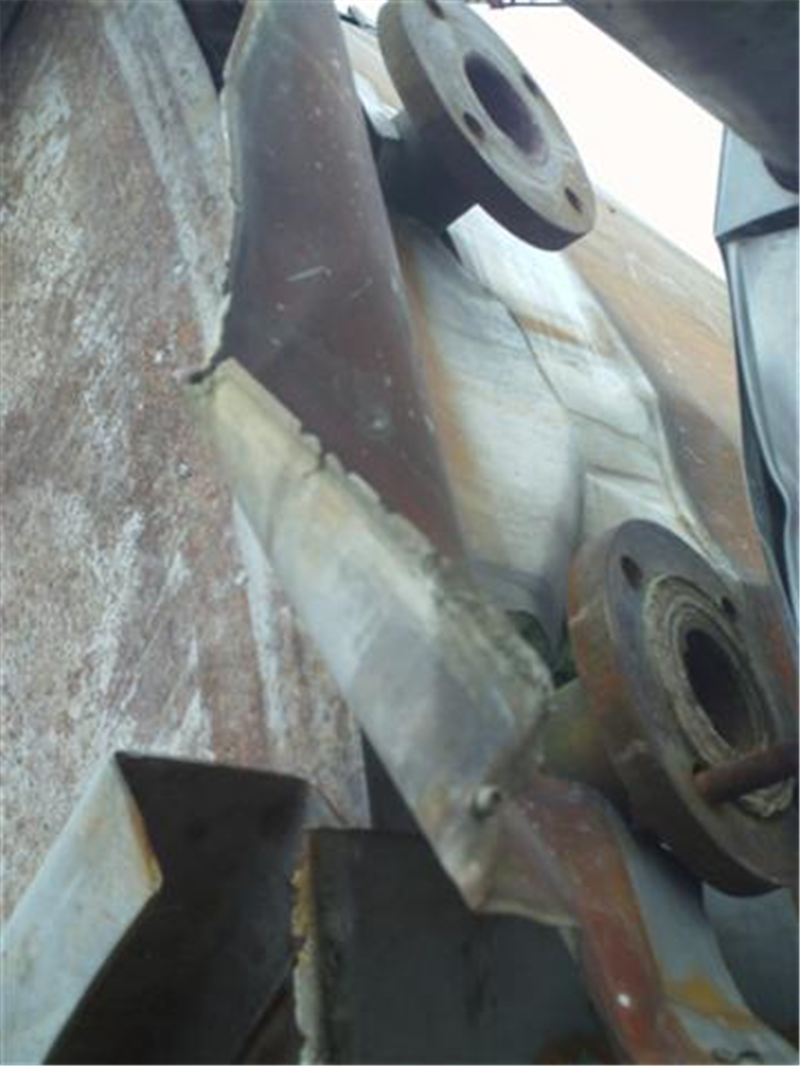

| Type of outlet (s) | flens NW100 |
| Diameter of outlet (mm) | 110 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0329LH04.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 4490 |
| Outside diameter tank (mm) | 2600 |
| Total height (mm) | 4630 |
| Diameter tank (mm) | 2400 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Heating coil only on the bottom |
