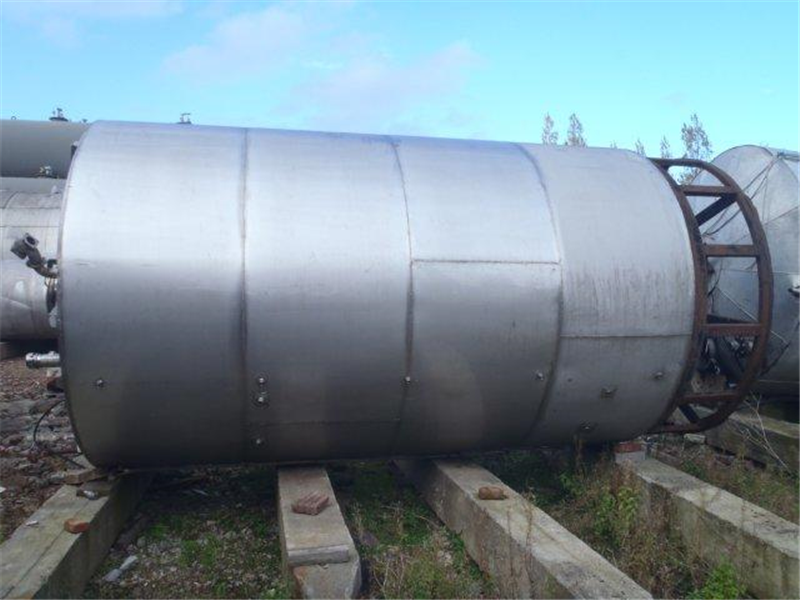

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 20000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.27.HO.06 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 20000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 2x Ø400mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | DIN NW80 |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0327HO06.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 1,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Cylindrical length (mm) | 4000 |
| Height bottom (mm) | 250 |
| Total height (mm) | 5210 |
| Diameter tank (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Skirt carbon steel |
