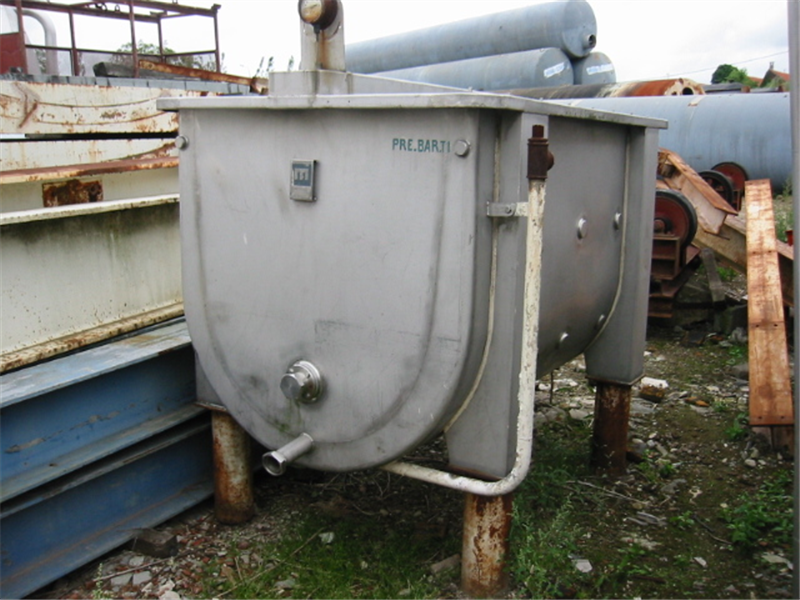

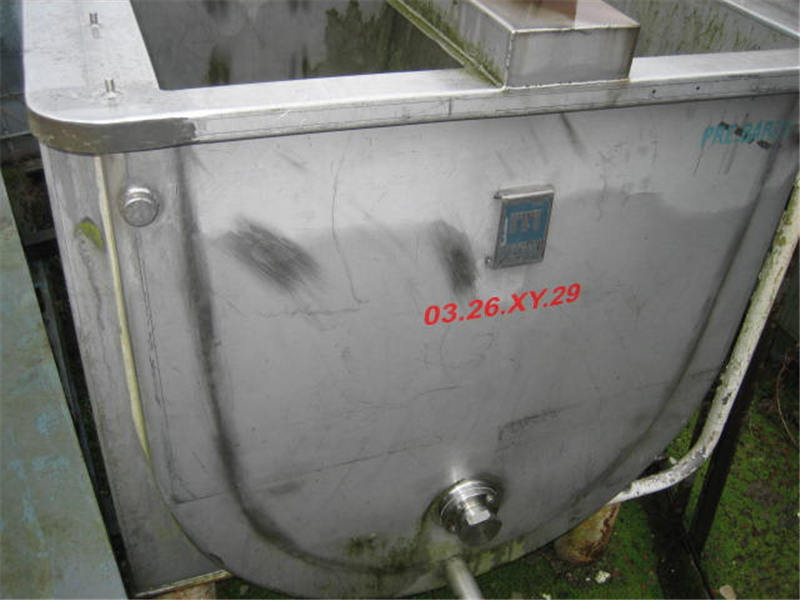

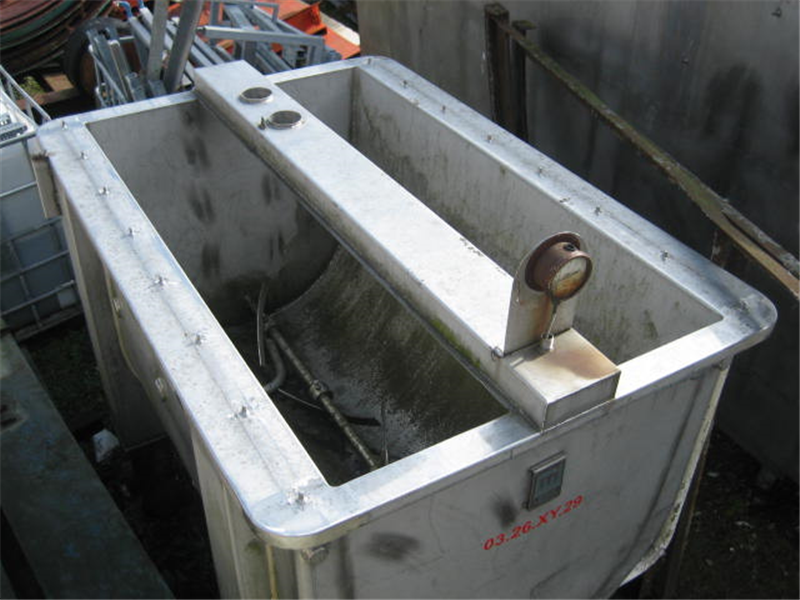

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1600 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.26.XY.29 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1600 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Semicircular |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0326XY29.pdf |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,2 |
| Total height (mm) | 2020 |
| Length (mm) | 2455 |
| Width (mm) | 1355 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

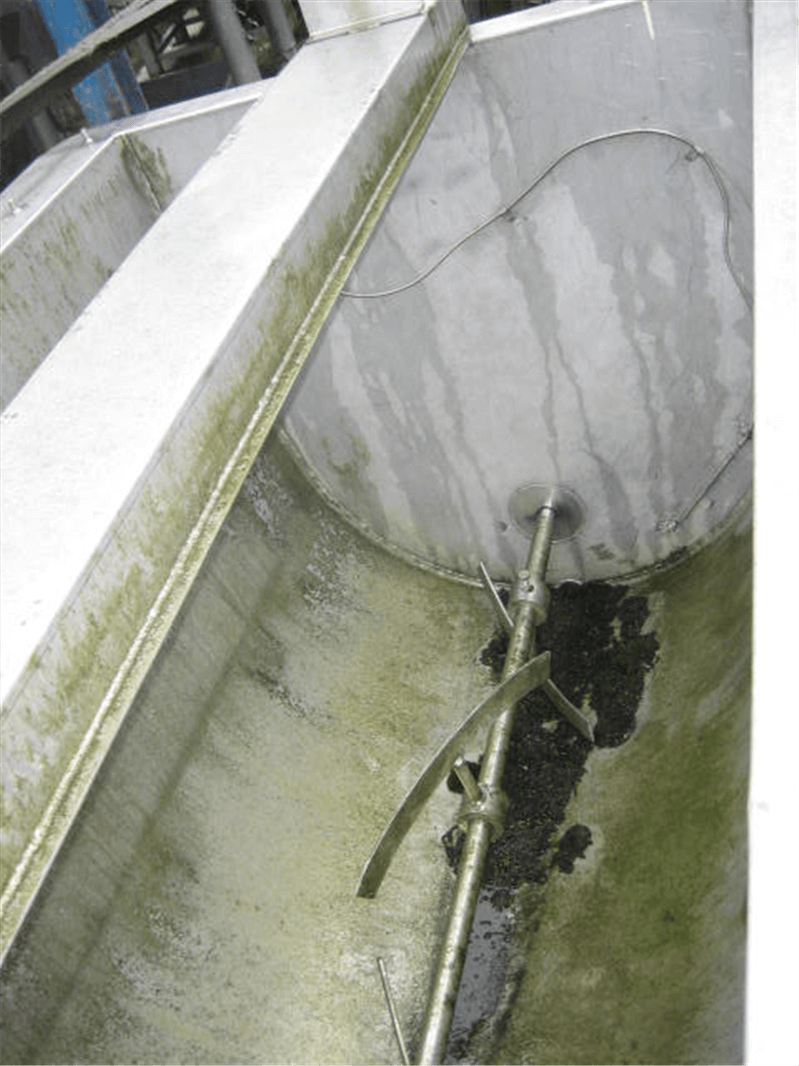

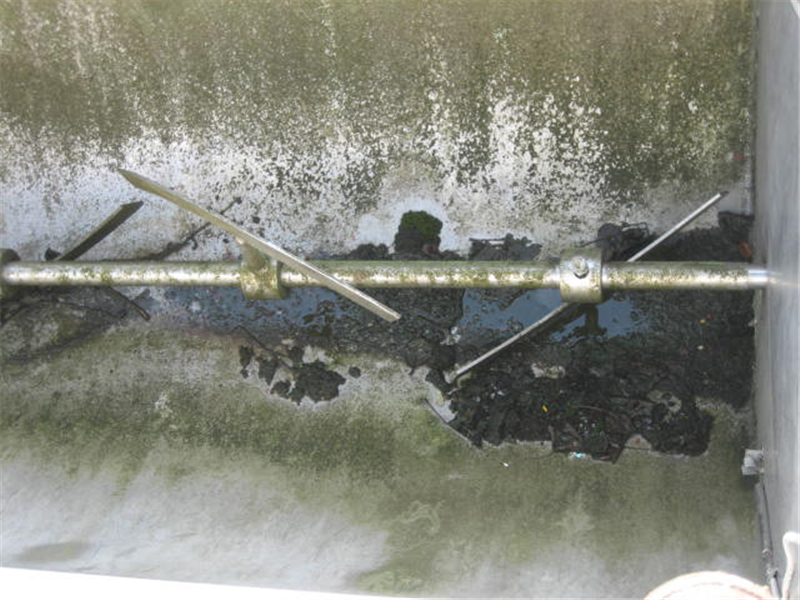

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Side -entry |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
