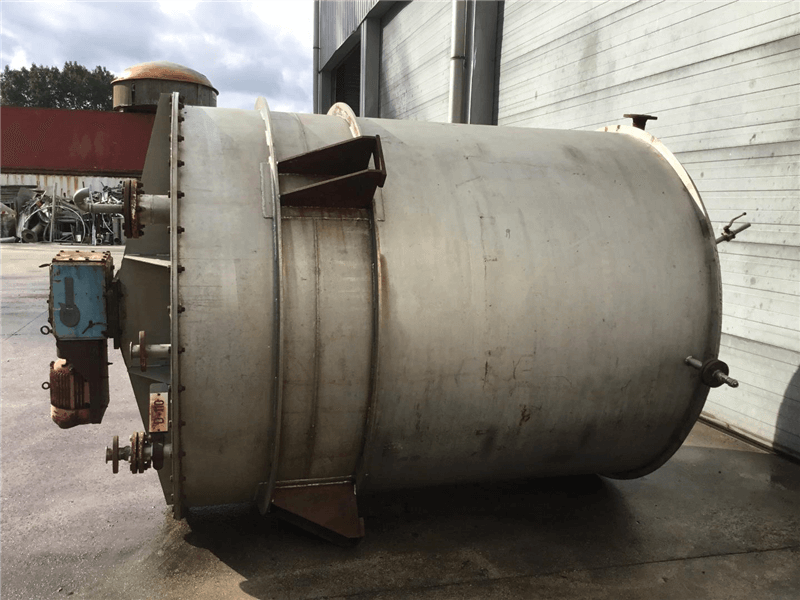

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 6200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.26.XY.26 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 6200 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

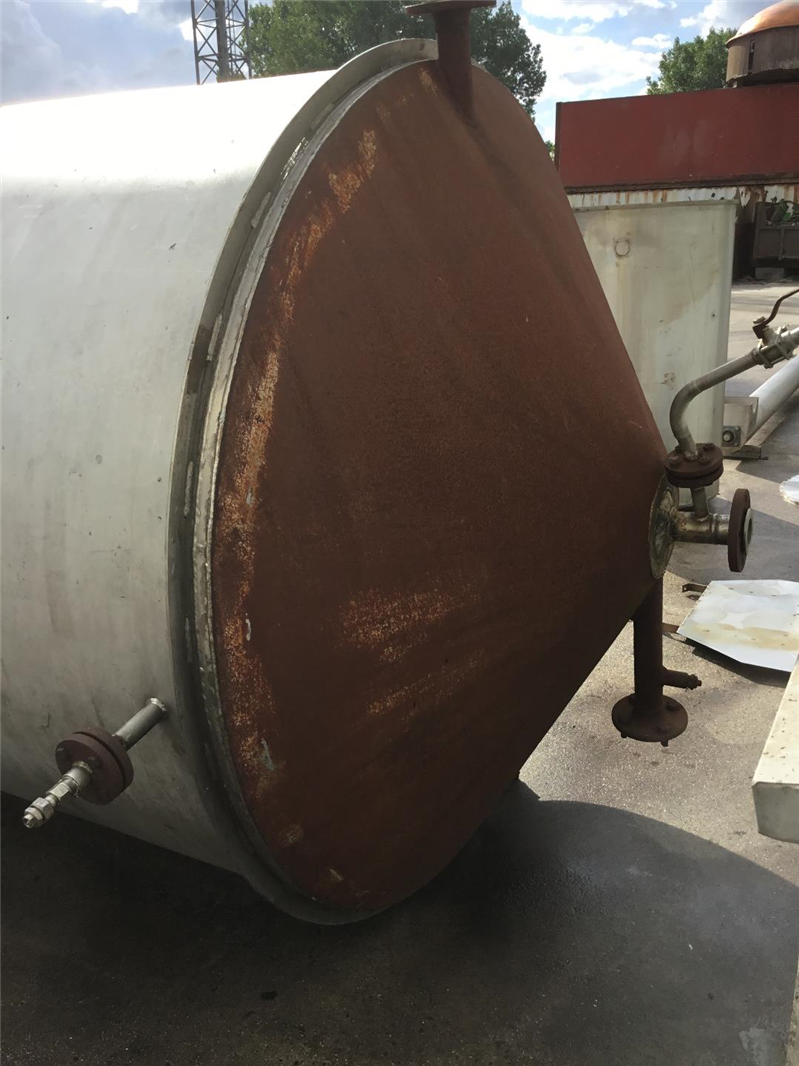

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN40 |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0326XY26.pdf |
| Top side | |
|---|---|

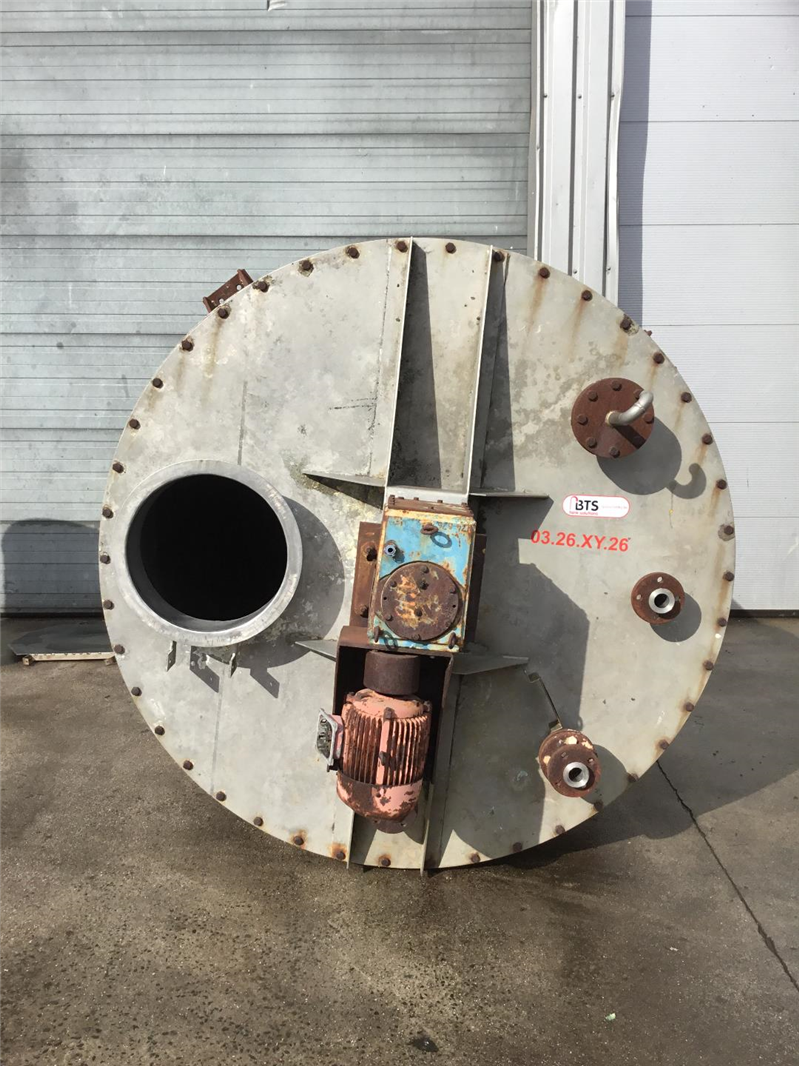

| Configuration top-side | Partly open |
| Detail top side | Bolted cover |
| Thickness of top side (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 2250 |
| Height bottom (mm) | 500 |
| Total height (mm) | 3480 |
| Diameter tank (mm) | 1860 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

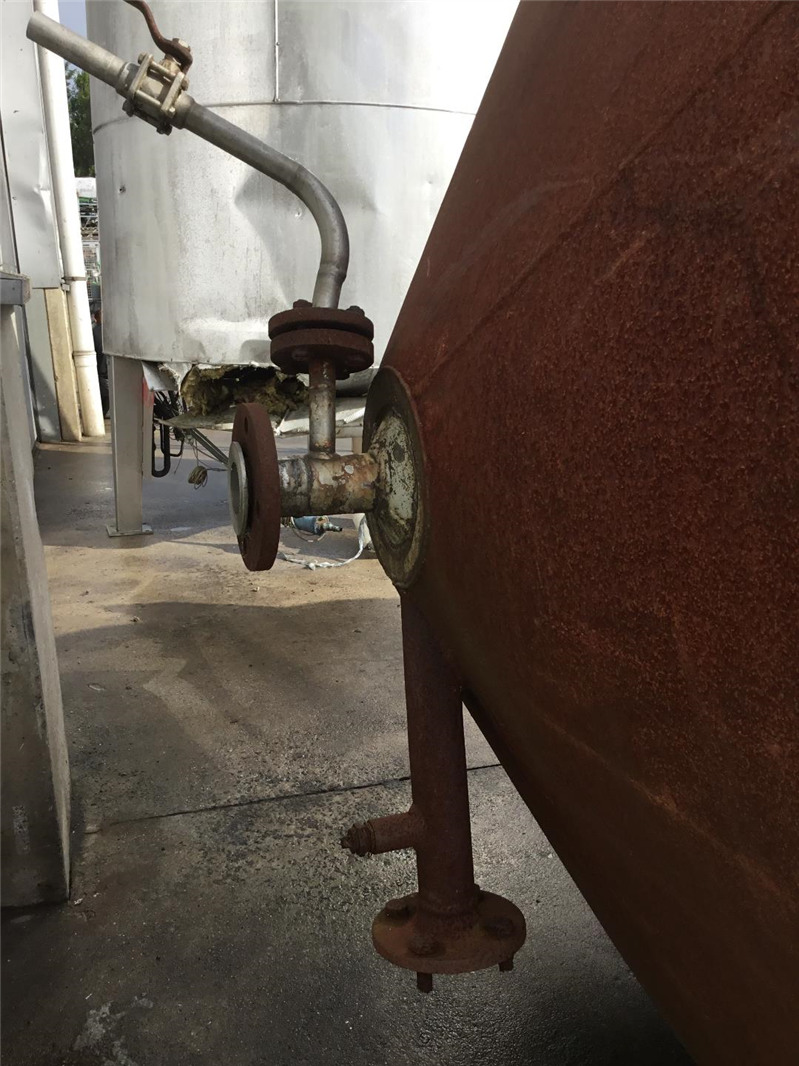

| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | on the top |
| Agitator 1: Number of baffles | 4 |
| Agitator 1: Material | Stainless steel 304 |

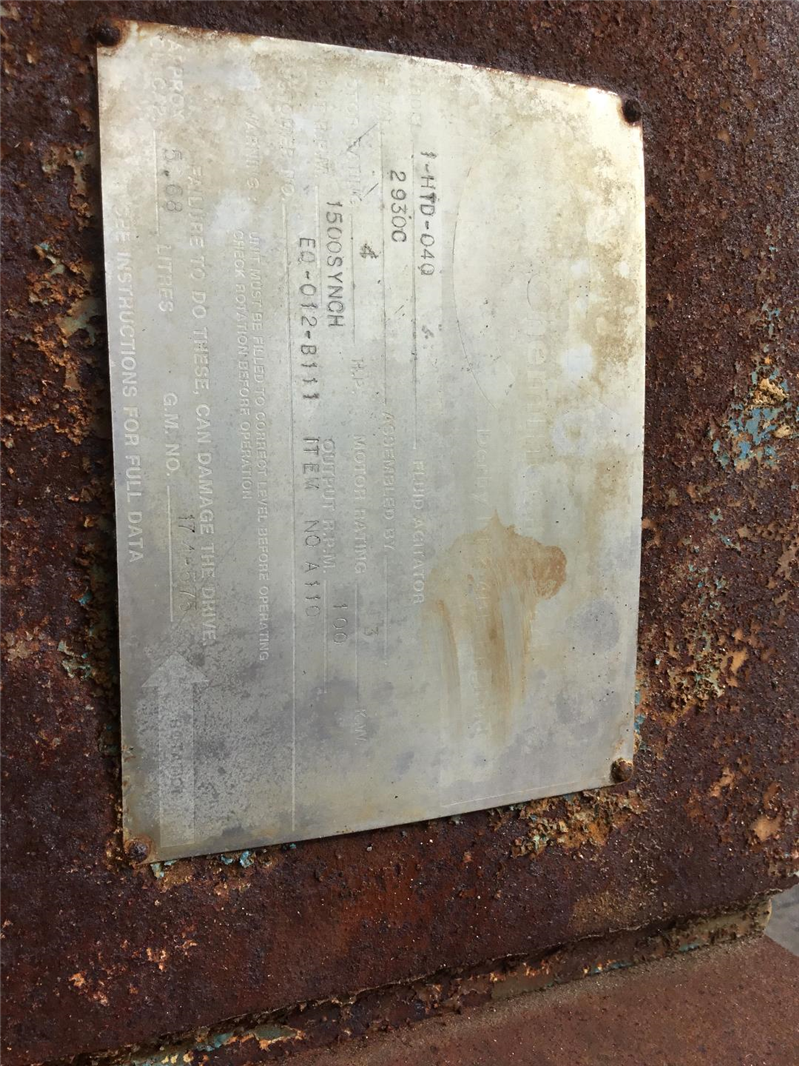

| Agitator 1: Constructor | Chemineer |

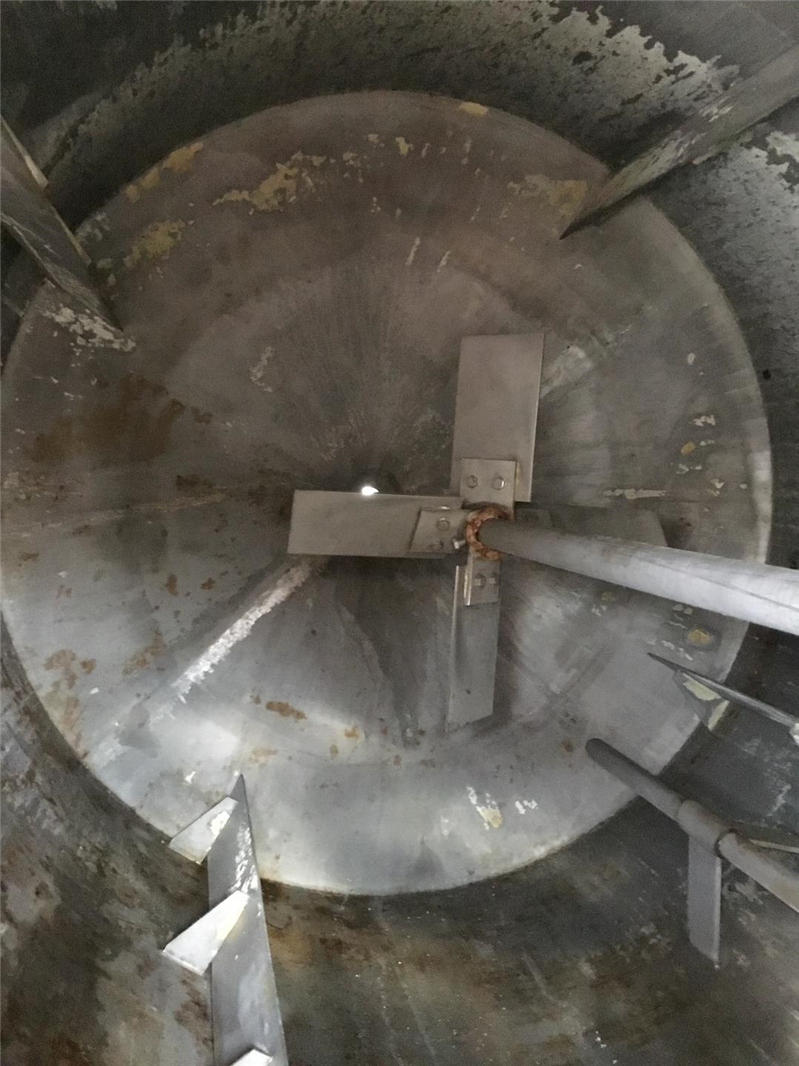

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 1700 |

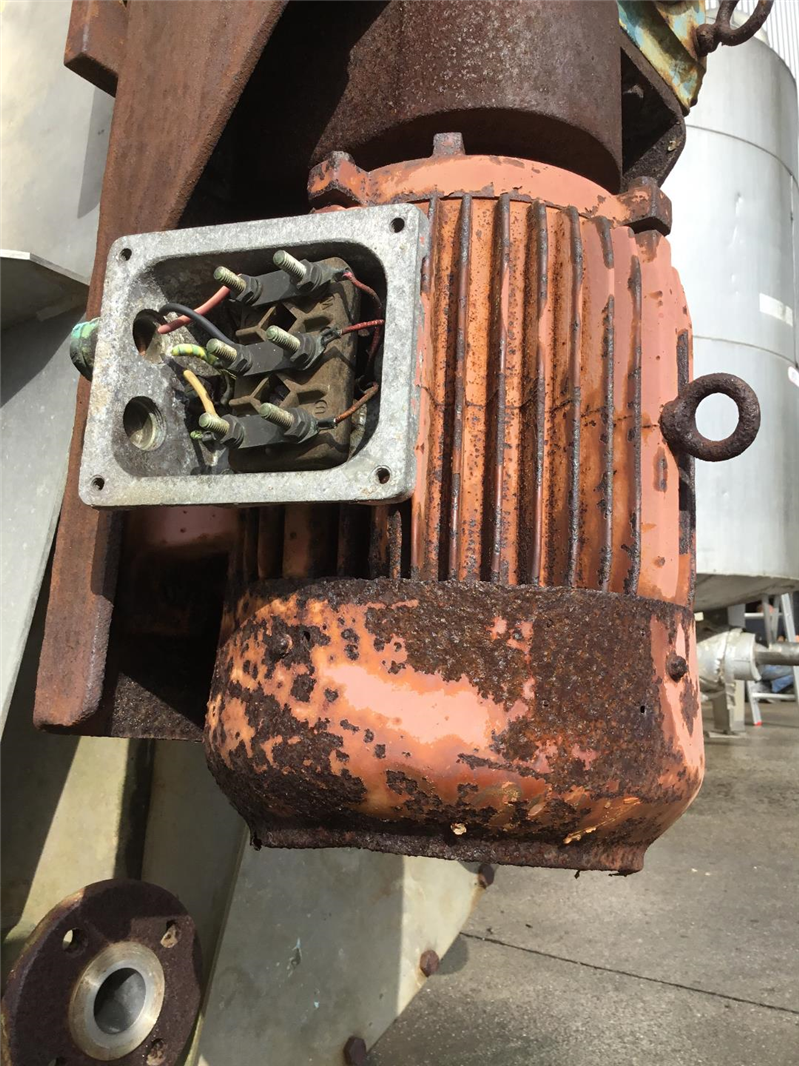

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |

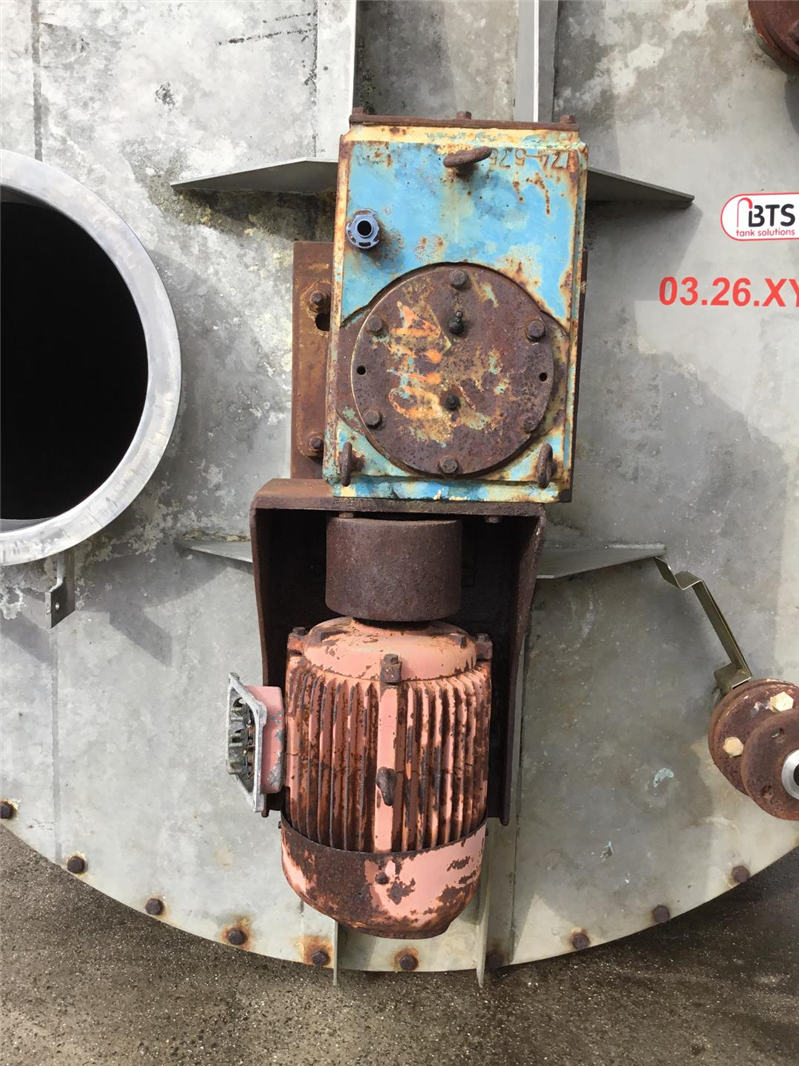

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 100 |
| Remarks | |
|---|---|
| Description (EN) | Engine stirring will probably no longer work, only conical bottom has a heating jacket (carbon steel) |
