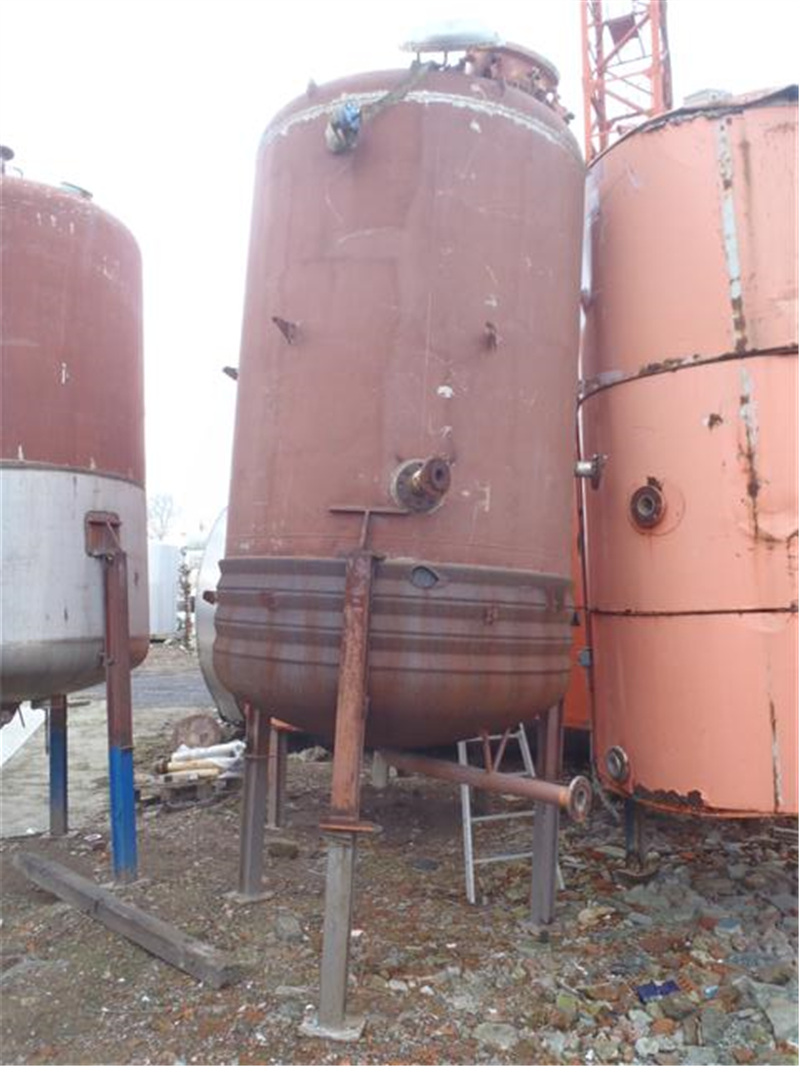

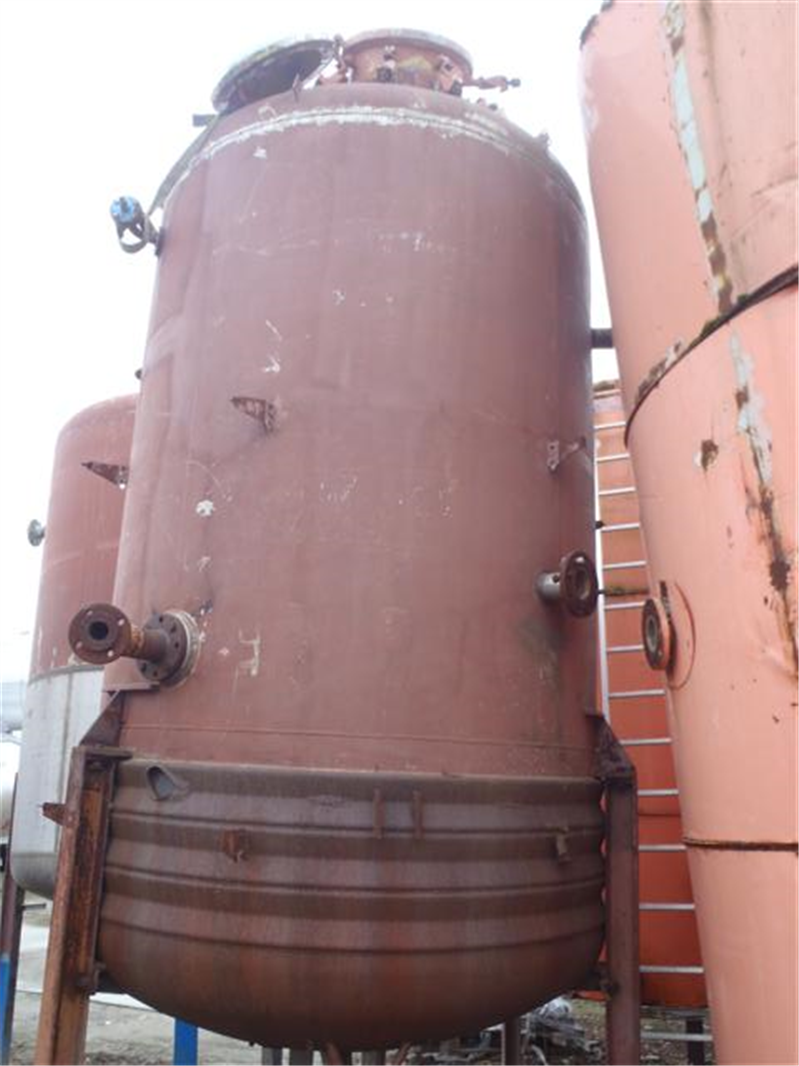

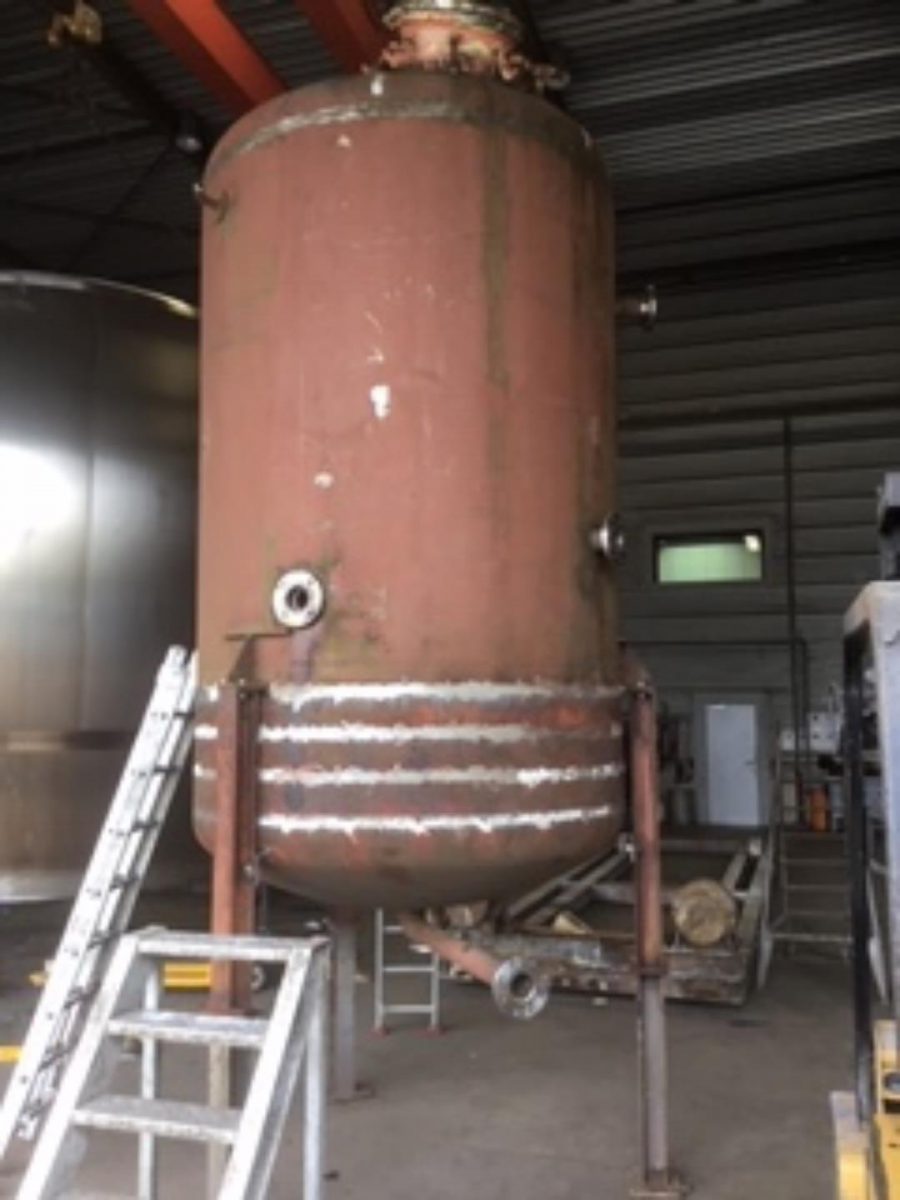

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8100 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Working temperature (° C) | 80 |
| Show Online? | Yes |
| Sticker | Yes |
| Drawing 1 | t0326HG12.pdf |
| Tank | |
|---|---|
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Capacity (Liters) | 8100 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 3 |

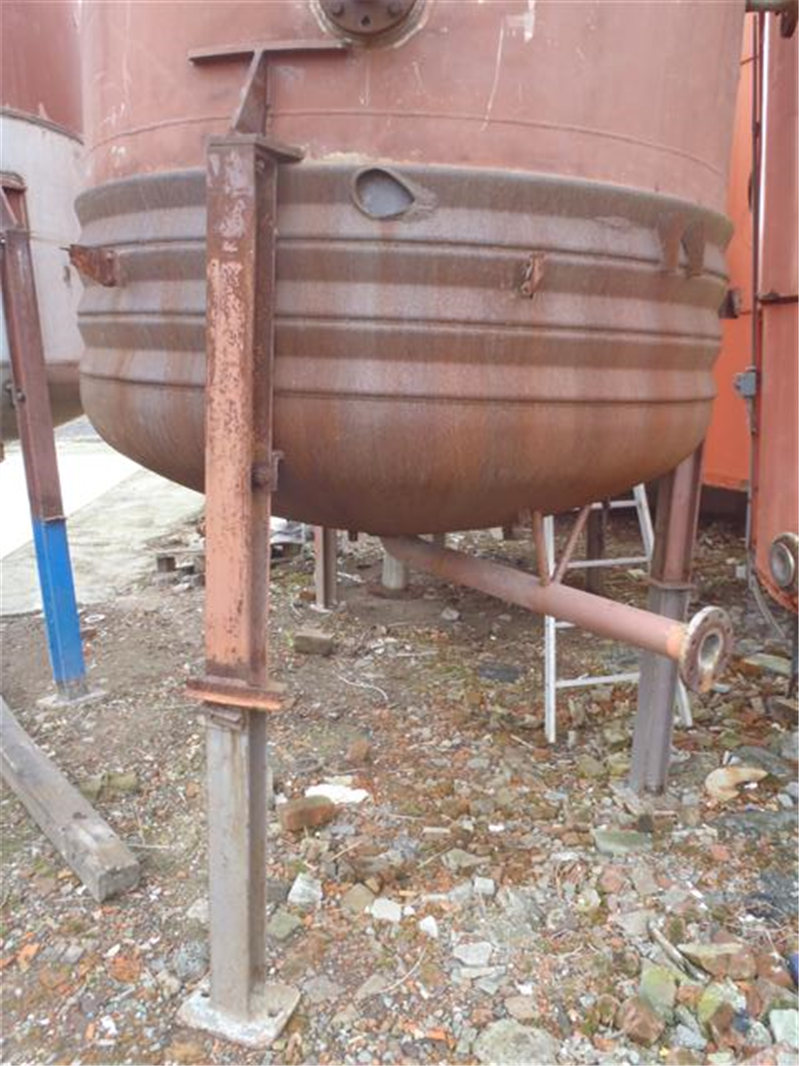

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

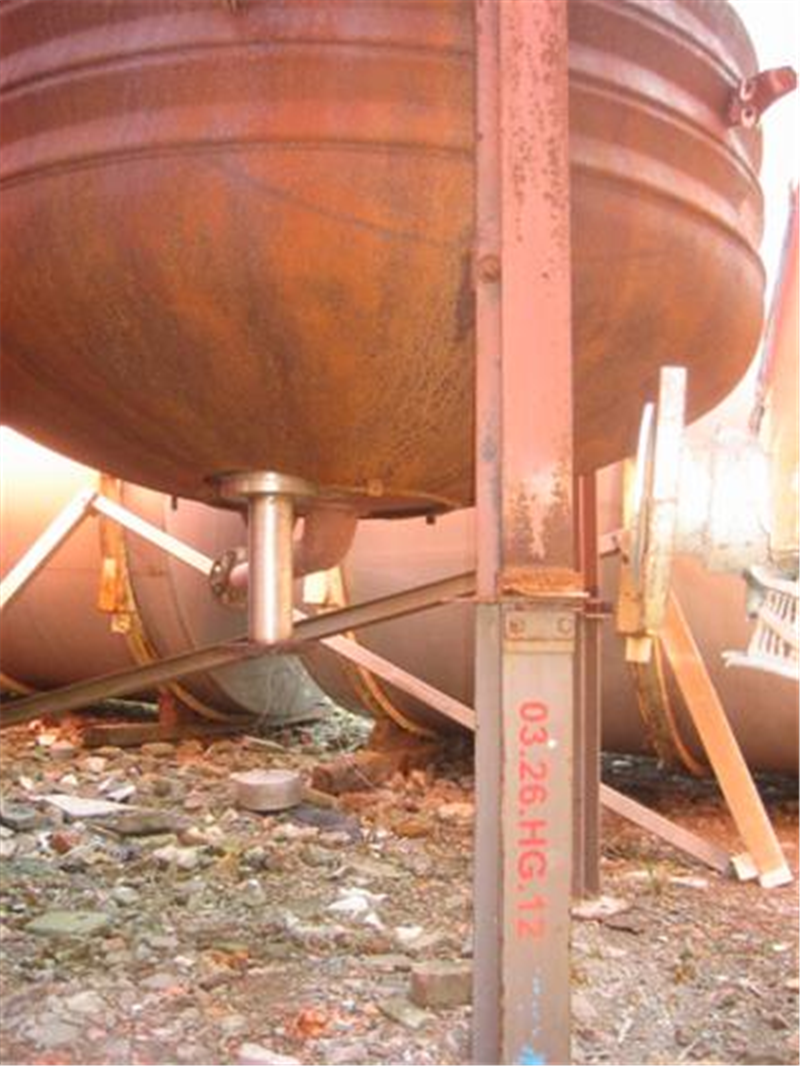

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |

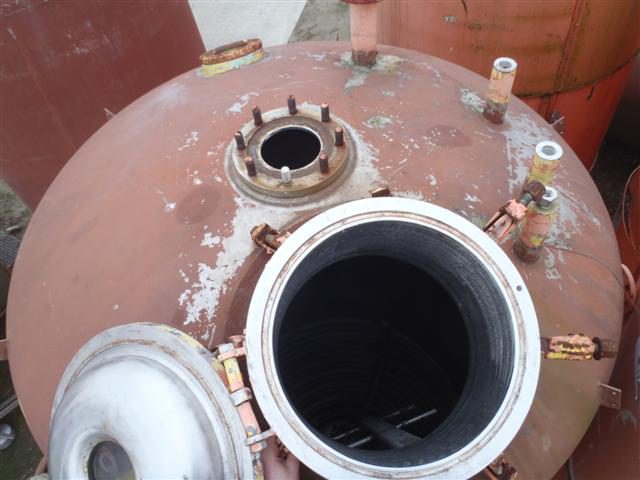

| Position of manhole (s) | Top |
| Dimensions of manholes | Ø420mm |
| Tank with total drain? | Yes |

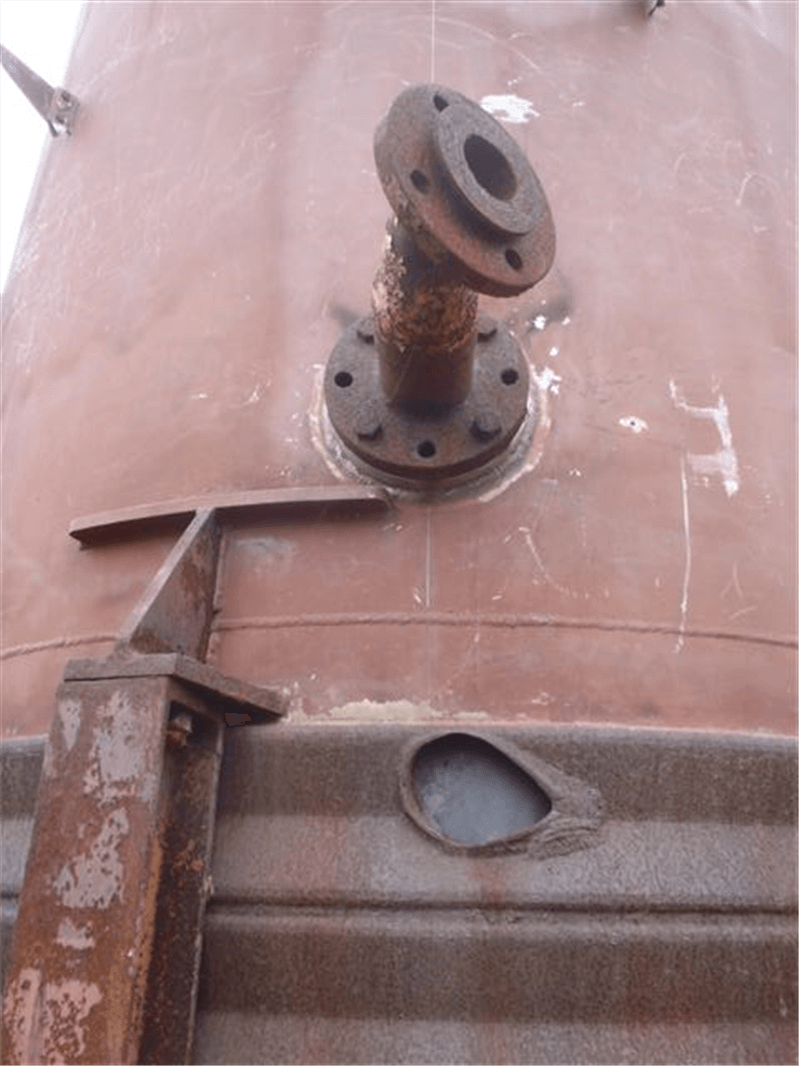

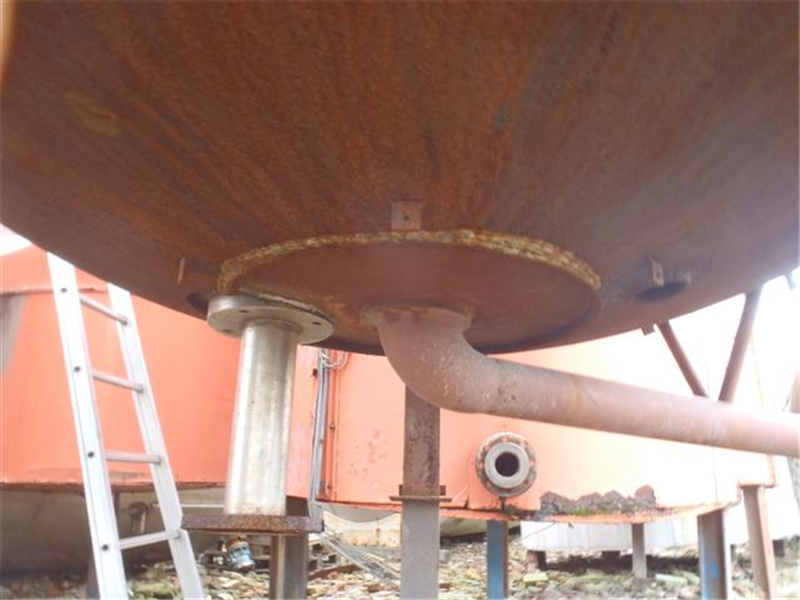

| Type of outlet (s) | Flens DN80 |
| Diameter of outlet (mm) | 88 |
| locality | B-7711 Belgium |
| Sector | 1/2 |
| Last application | Food |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 5 |
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 7 |
| Cylindrical length (mm) | 2530 |
| height bottom (mm) | 440 |
| height bottom (mm) | 440 |
| height bottom (mm) | 440 |
| Total height (mm) | 4650 |
| Diameter tank (mm) | 1800 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Heating | |
|---|---|
| Number of heating type | 1 |

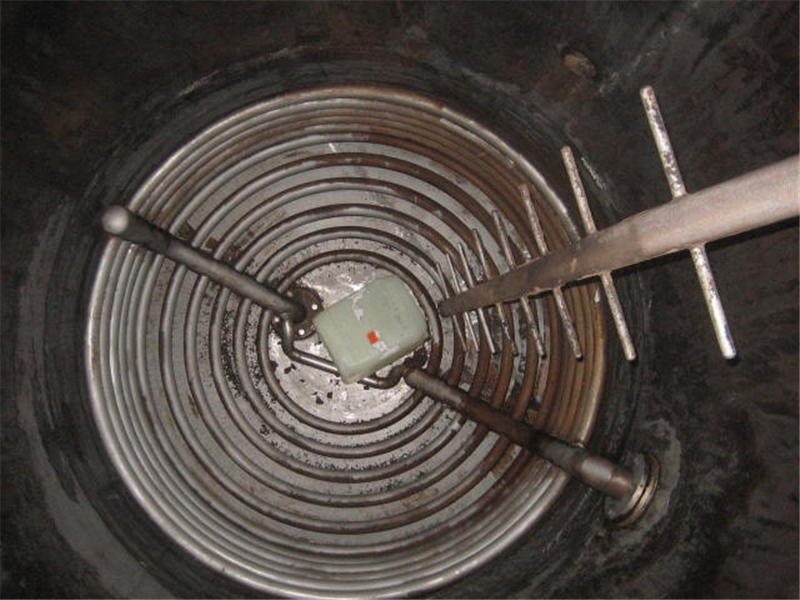

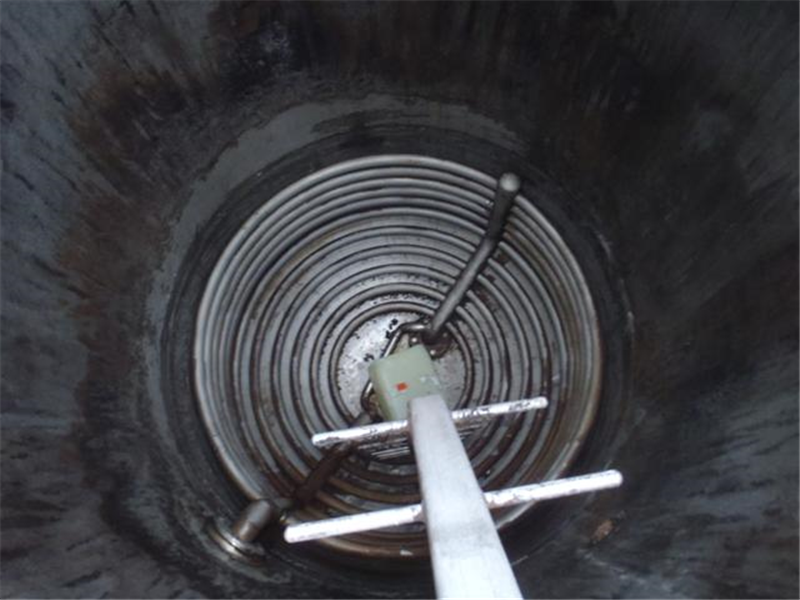

| Heating 1: Type | Heating coil on bottom and cylinder |
| Heating 1: Max. service pressure | 3 |
