Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.24.BS.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 3800 |
| Type tank | Storage tank |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN100 |
| Diameter of outlet (mm) | 114 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 800 |
| Condition | Used |
| Type plate manufacturer | No |
| Appendix 1 | t0324BS02.jpg |

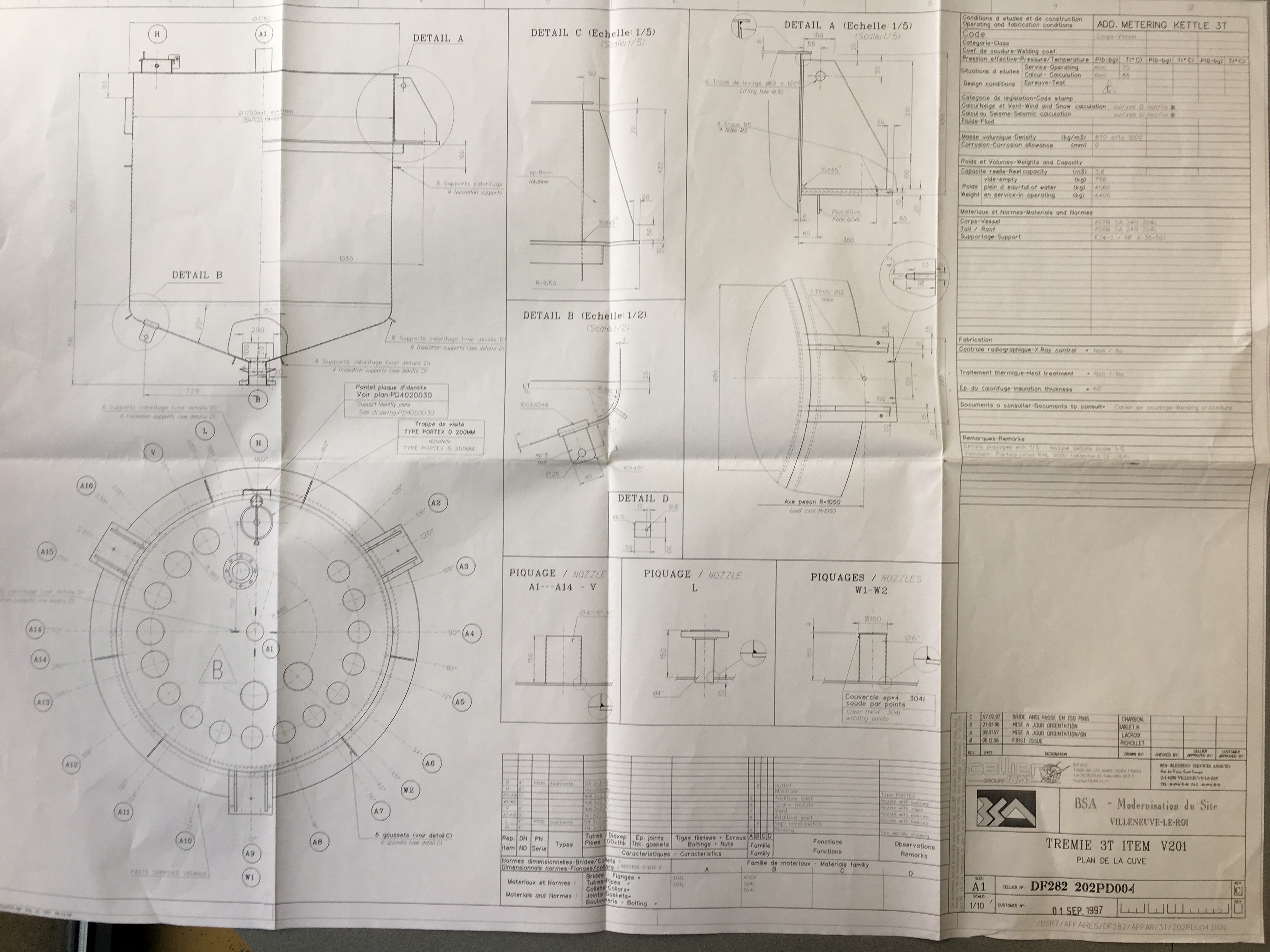

| Drawing 1 | t0324BS02.pdf |
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Slope bottom (°) | 20 |
| Outside diameter tank (mm) | 1700 |
| Total height (mm) | 2160 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 2100 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
