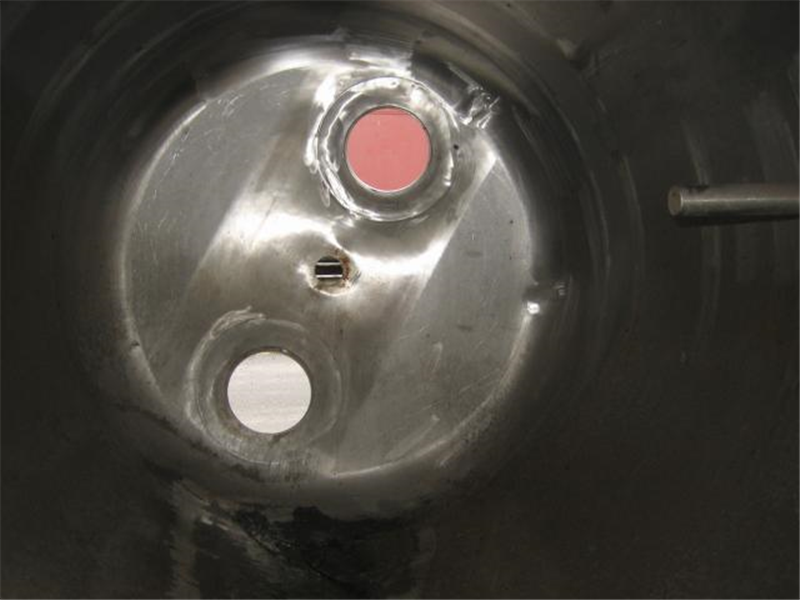

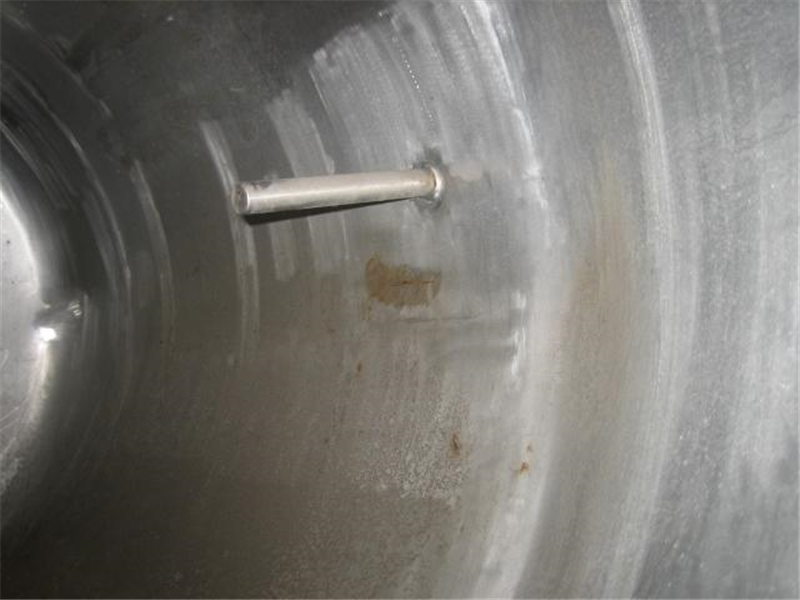

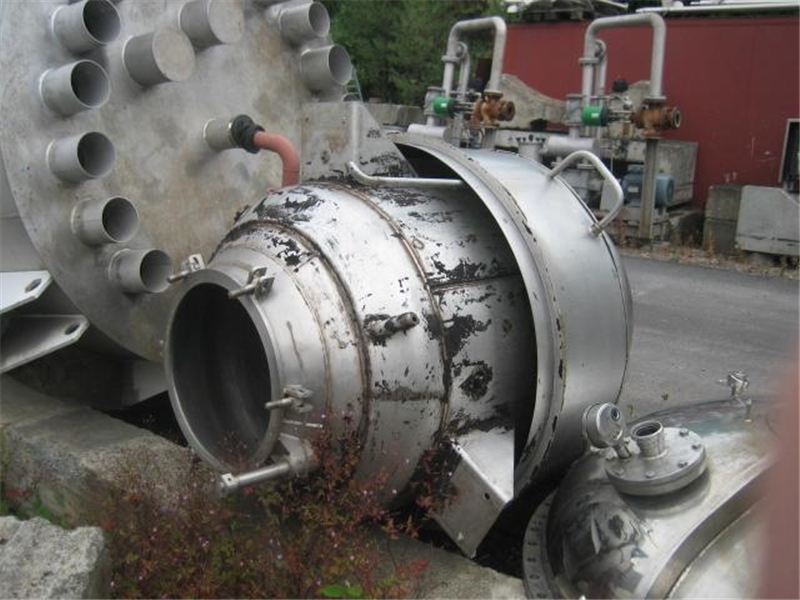

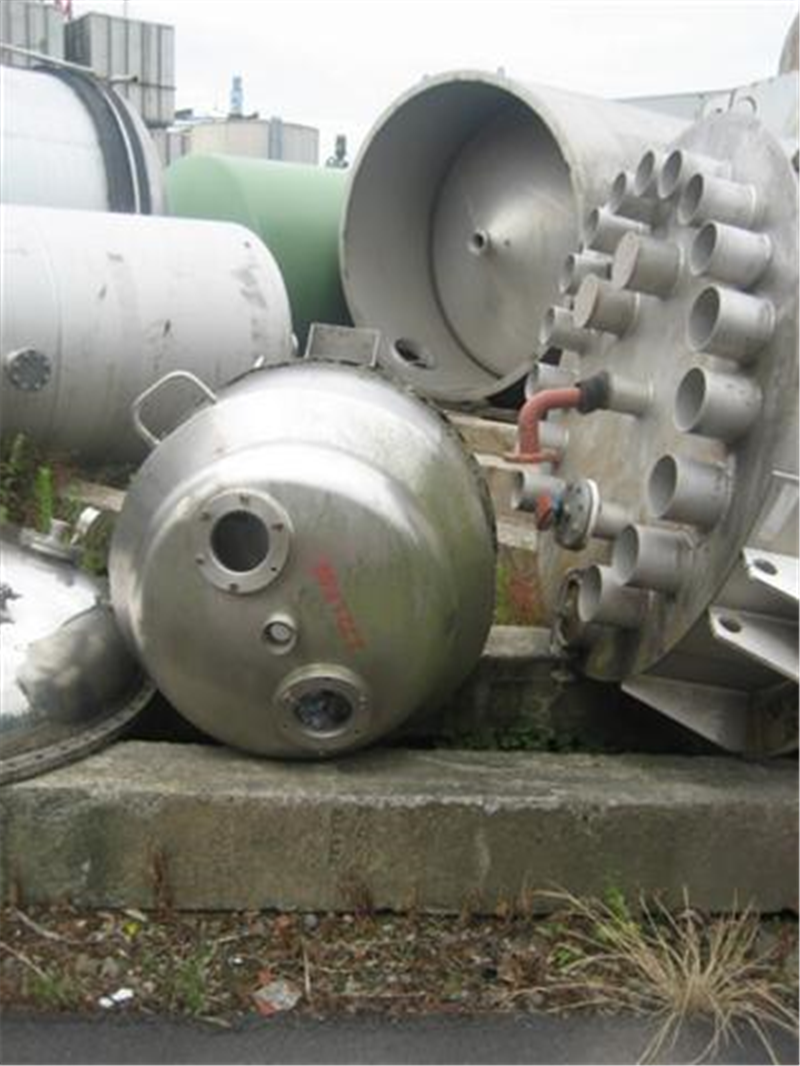

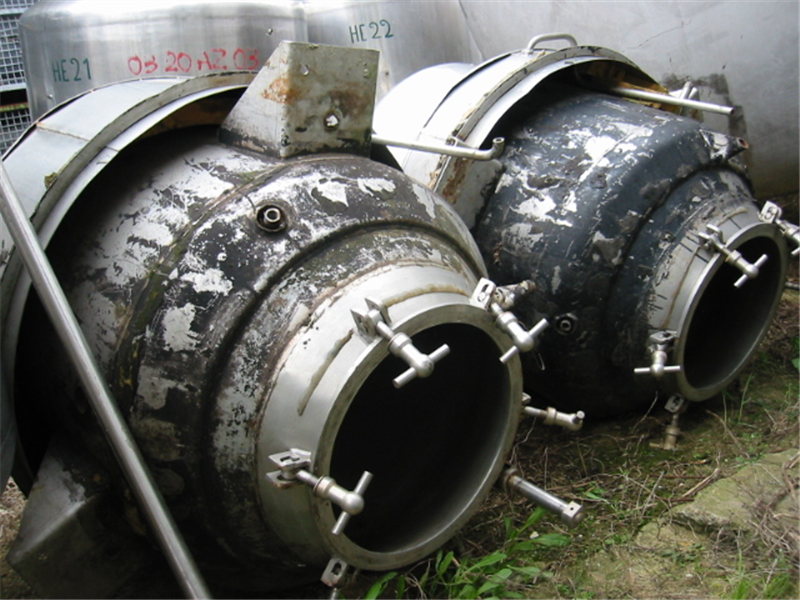

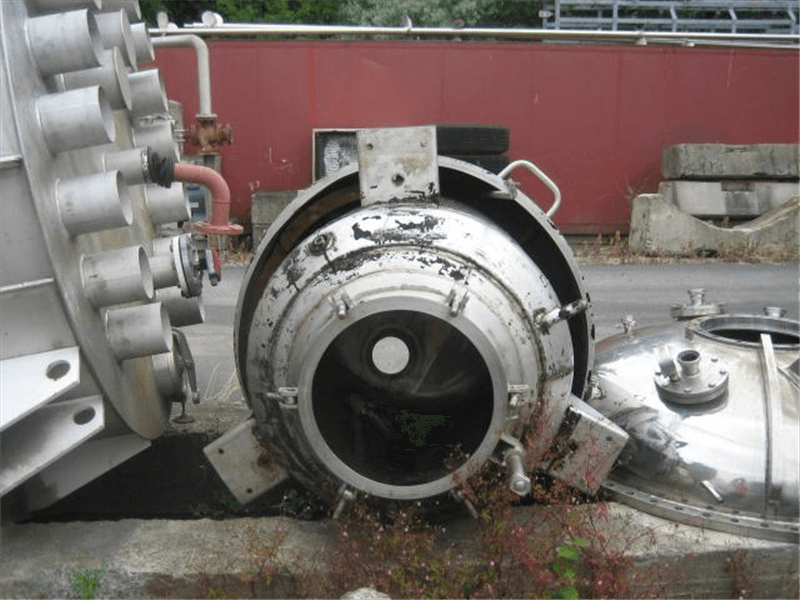

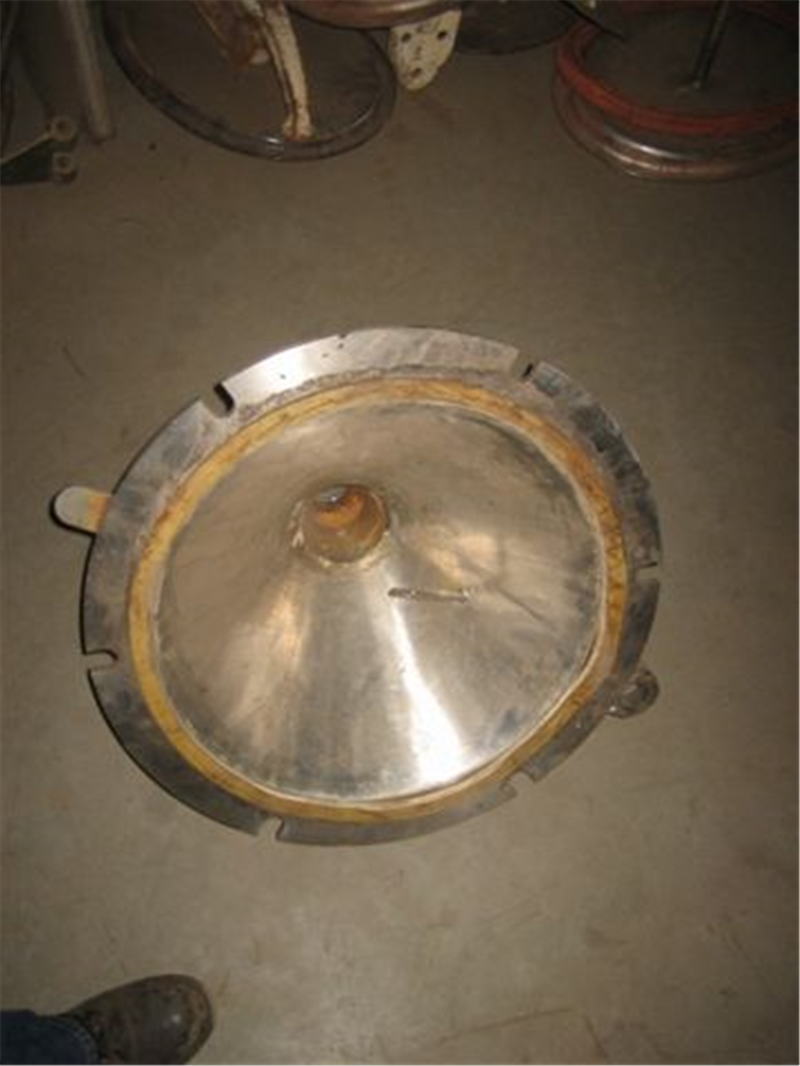

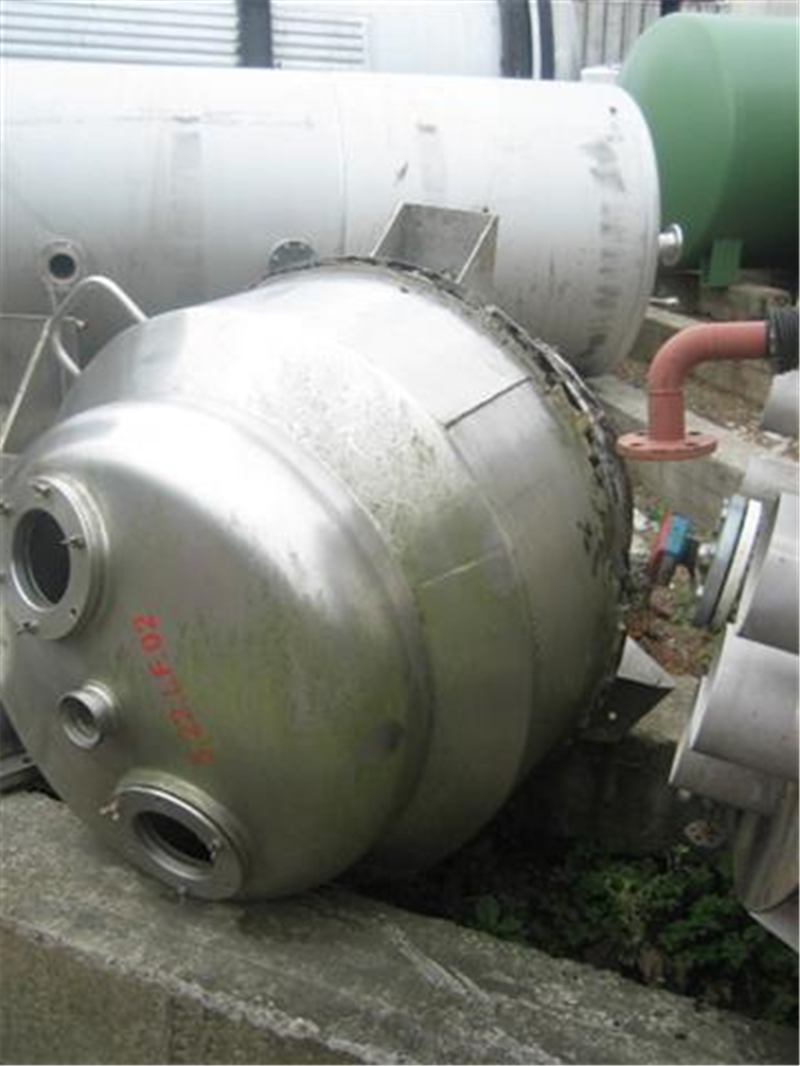

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 800 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Show Online? | Yes |
| Sticker | Yes |
| Drawing 1 | t0322LF02.pdf |
| Tank | |
|---|---|
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 800 |
| Type tank | Pressure Tank |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| Type of outlet (s) | DIN NW65 |
| Diameter of outlet (mm) | 65 |
| locality | B-7711 Belgium |
| Sector | 2 |
| Last application | Food |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Cylindrical length (mm) | 1000 |
| Slope bottom (°) | 60 |
| Slope bottom (°) | 60 |
| Outside diameter tank (mm) | 940 |
| Total height (mm) | 1460 |
| Diameter tank (mm) | 900 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
