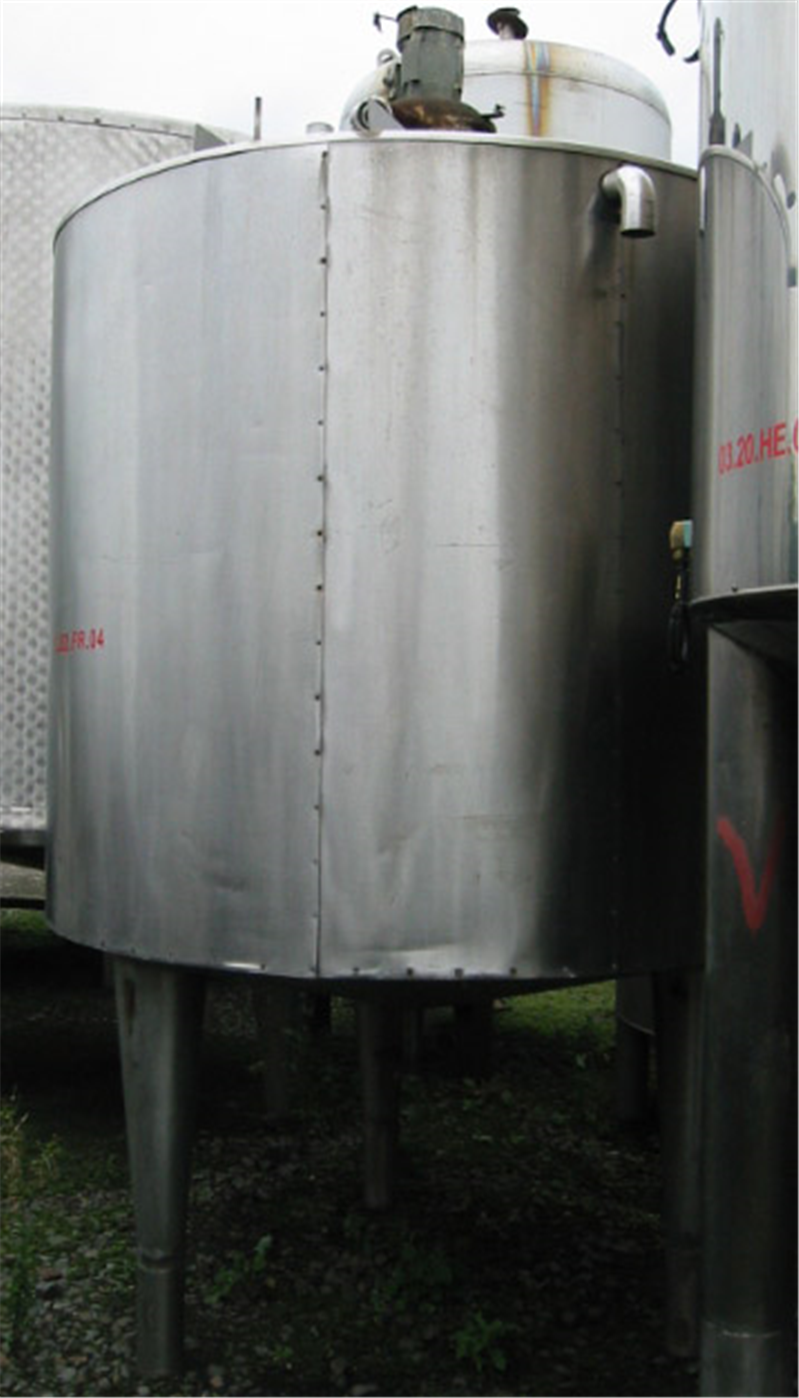

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.22.FR.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 3300 |
| Type tank | Mixing vessel |

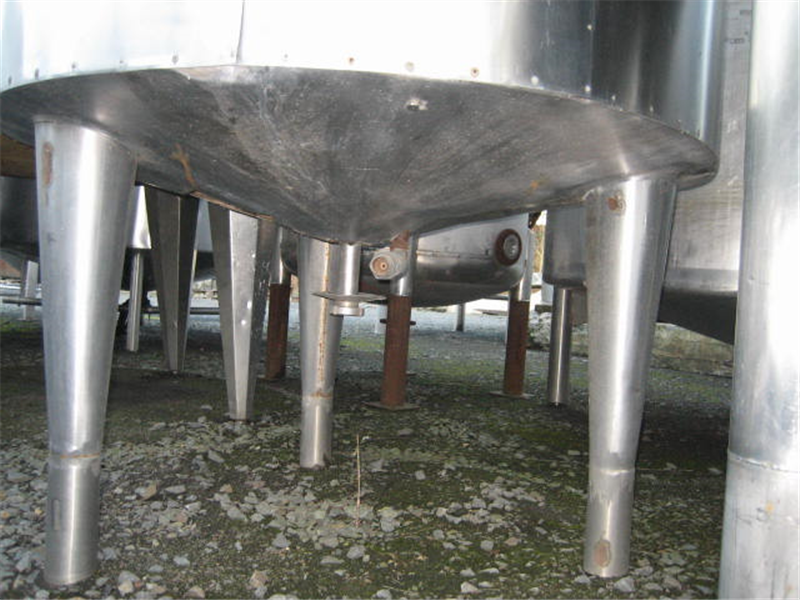

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

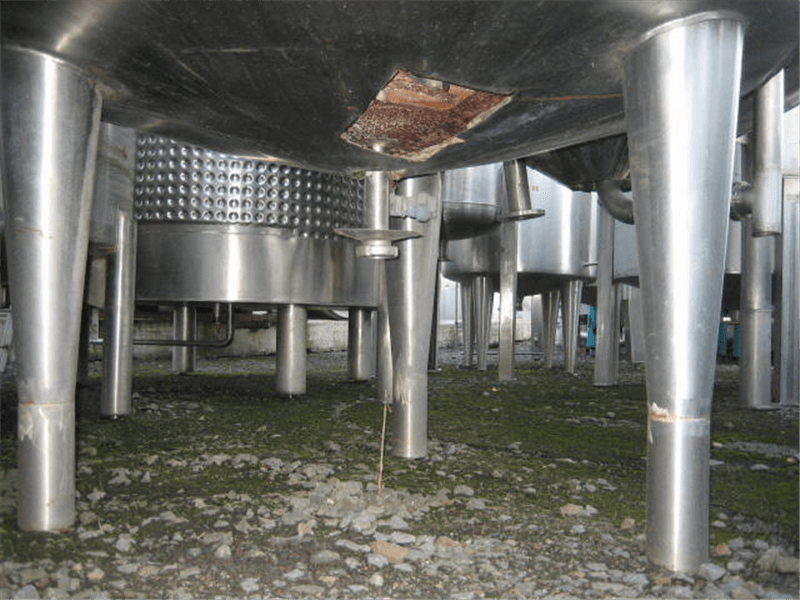

| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | DIN NW50 |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0322FR04.pdf |
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | 2x flap lid |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Cylindrical length (mm) | 1545 |
| Outside diameter tank (mm) | 1740 |
| Total height (mm) | 3070 |
| Diameter tank (mm) | 1600 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |

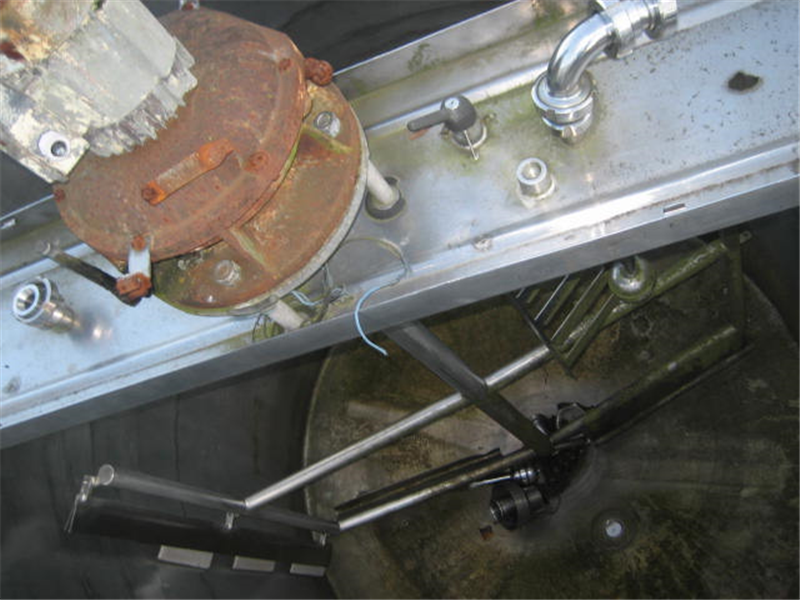

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Anchor |
