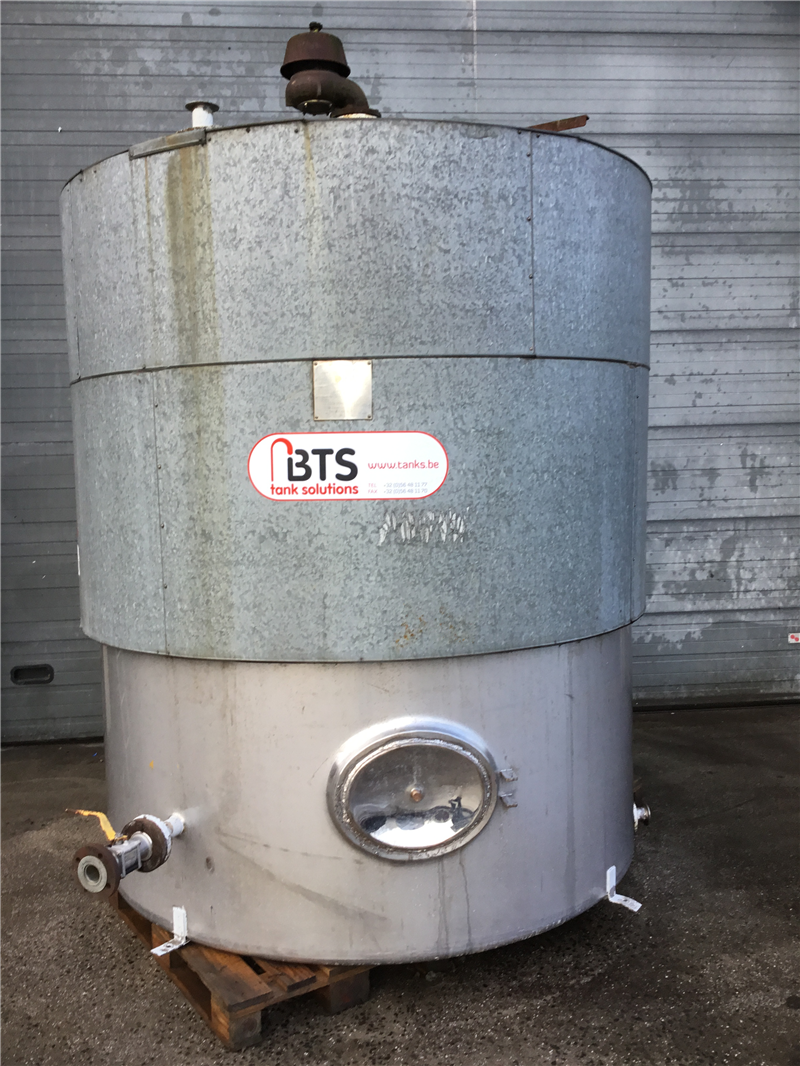

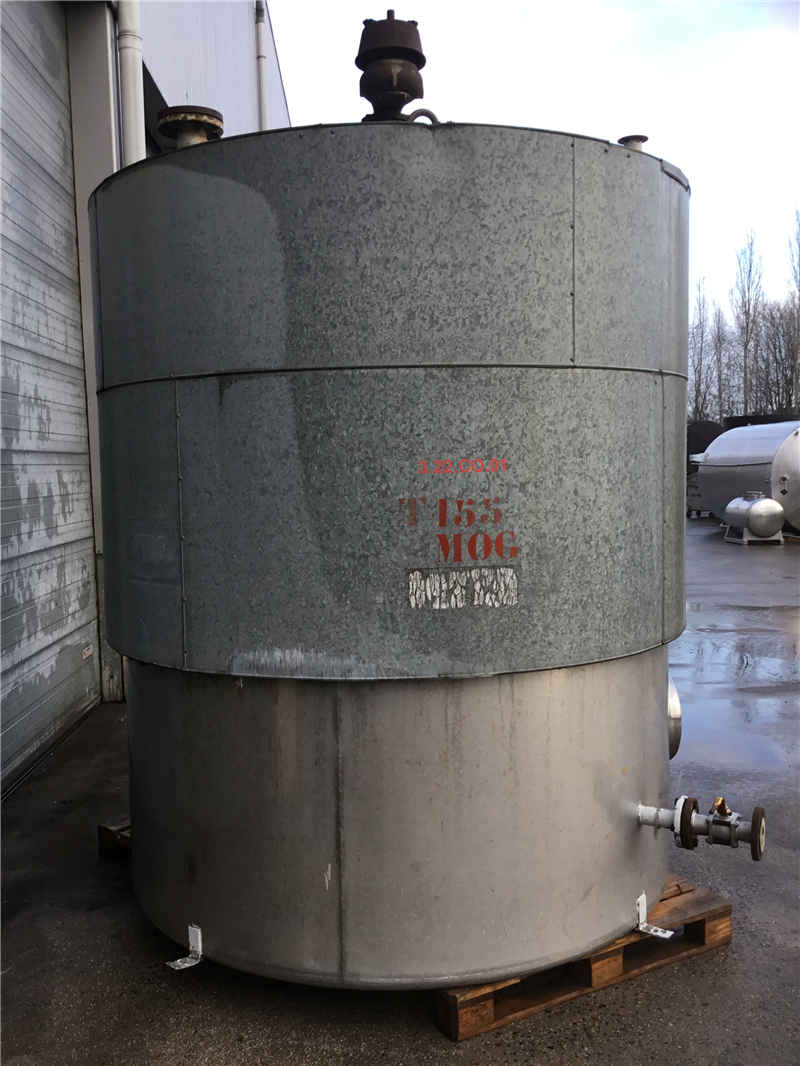

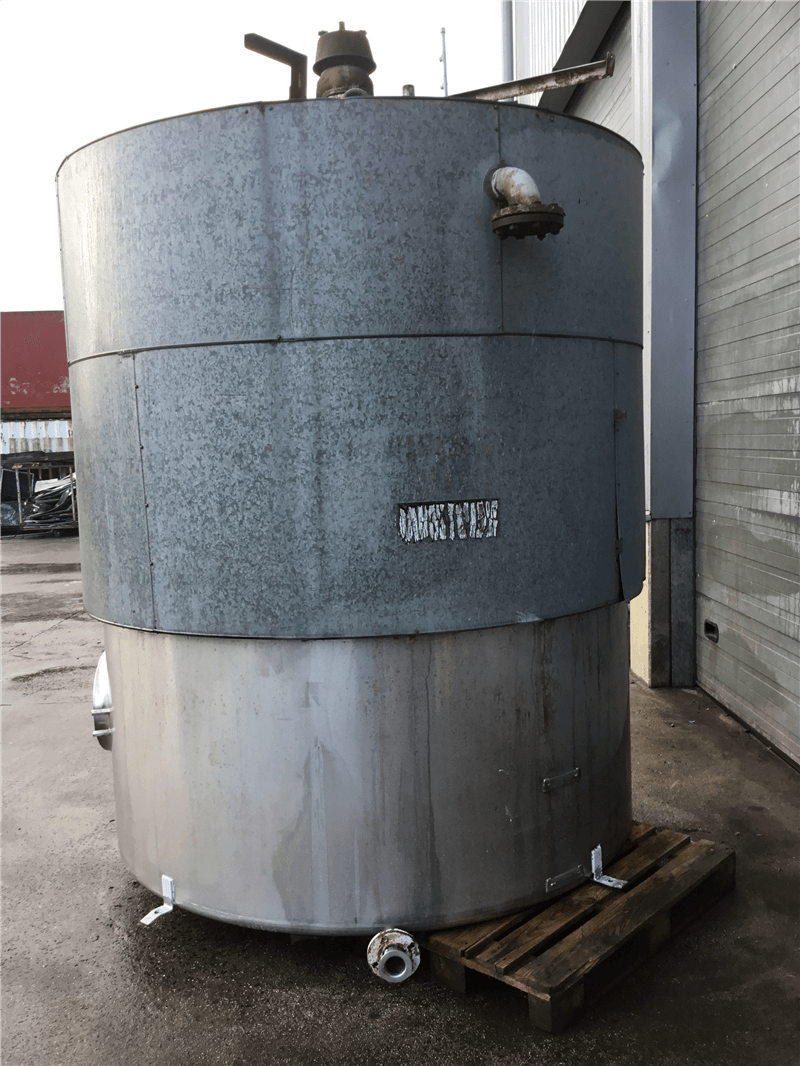

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 7790 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.22.CO.01 |
| Material | Stainless steel 316 |

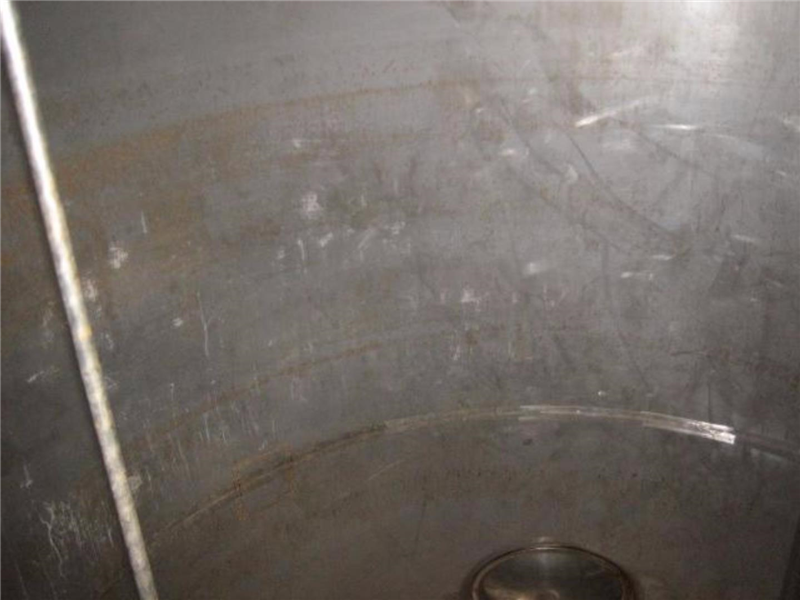

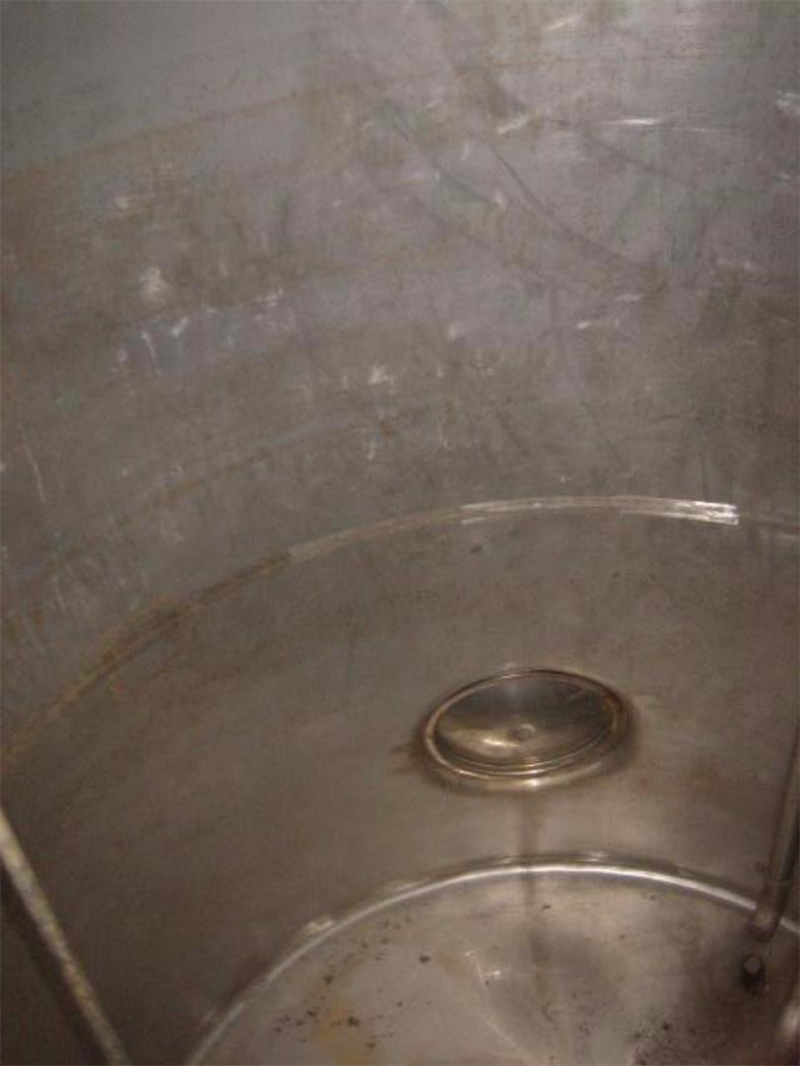

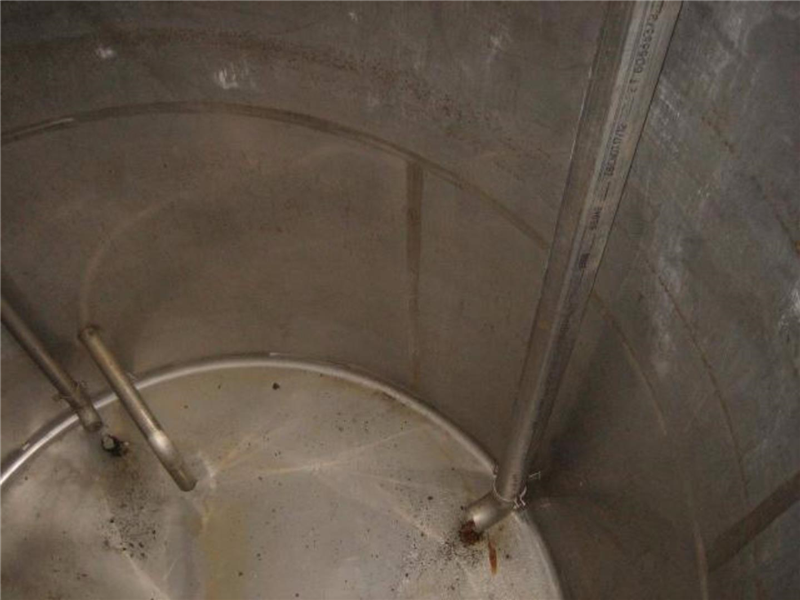

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 7790 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

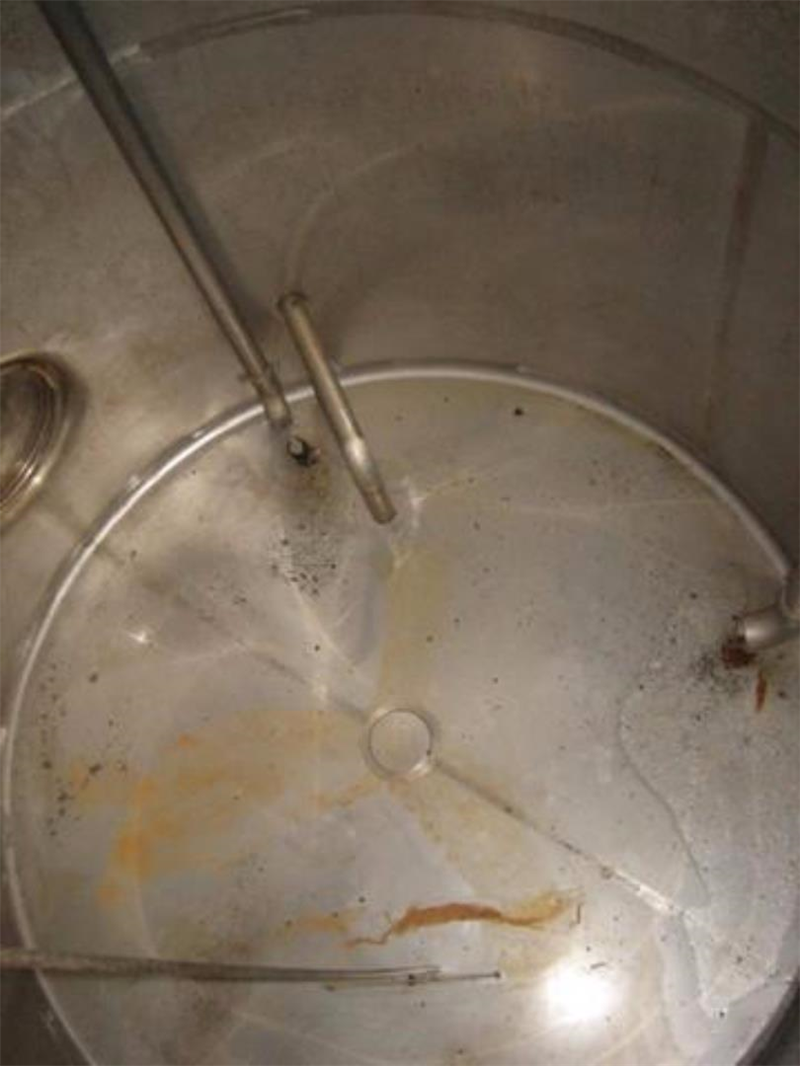

| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450mm |

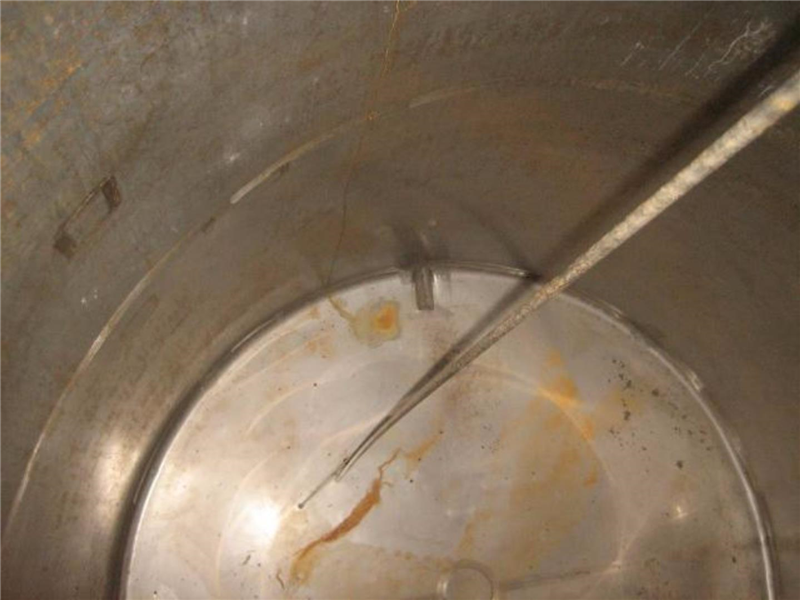

| Tank with total drain? | Yes |

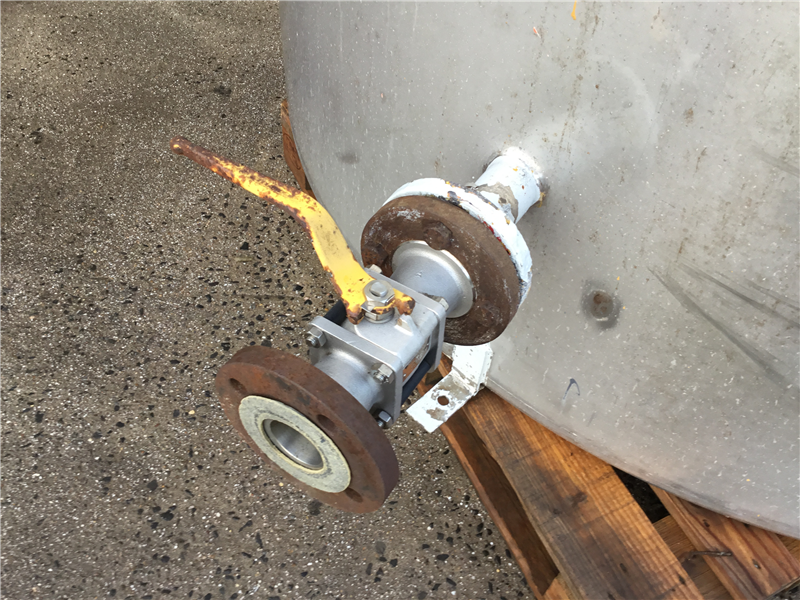

| Type of outlet (s) | flensaansluiting NW50 |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 500 |
| Condition | Used |

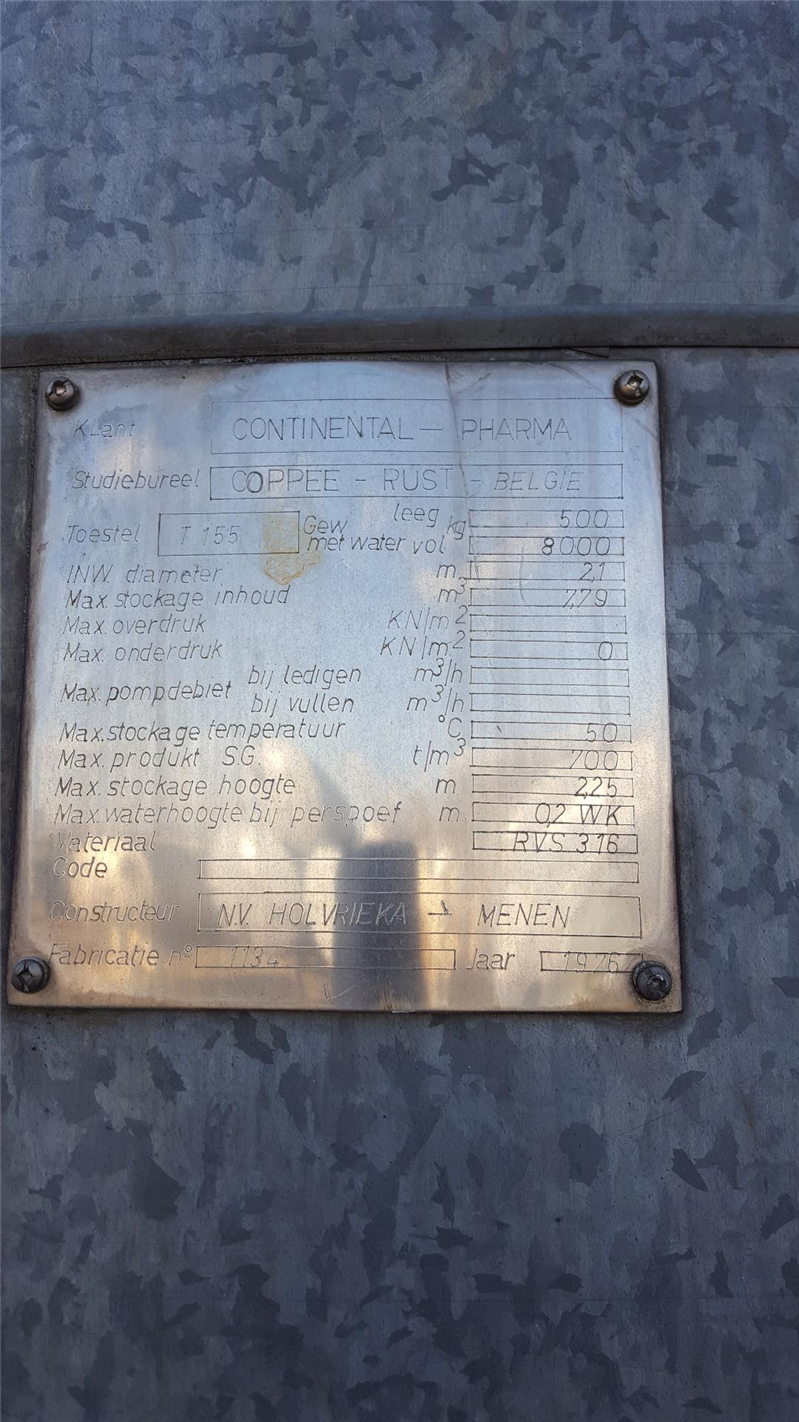

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 1976 |
| Design Code | T155 |
| Construction data available | No |
| Drawing 1 | t0322CO01.pdf |

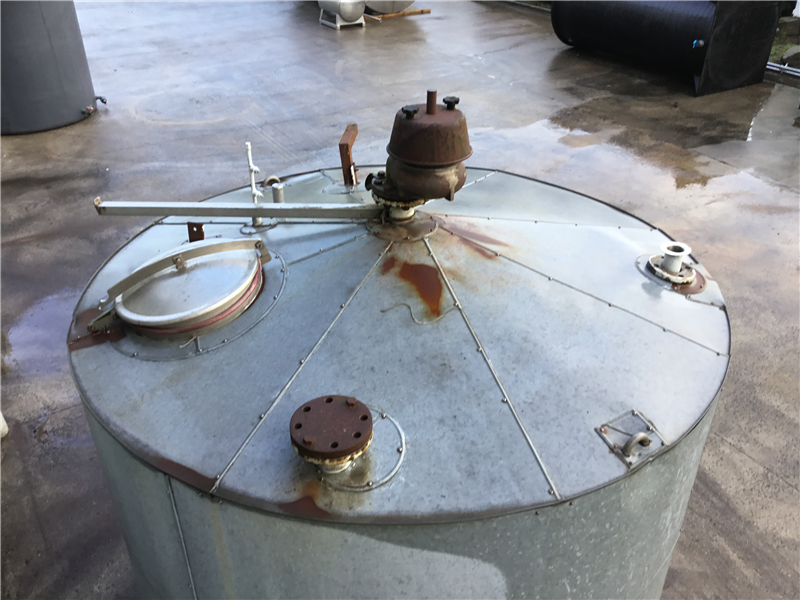

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,7 |
| Cylindrical length (mm) | 2470 |
| Outside diameter tank (mm) | 2200 |
| Total height (mm) | 3080 |
| Diameter tank (mm) | 2100 |
| Width (mm) | 2300 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | galvanised |
| Remarks | |
|---|---|

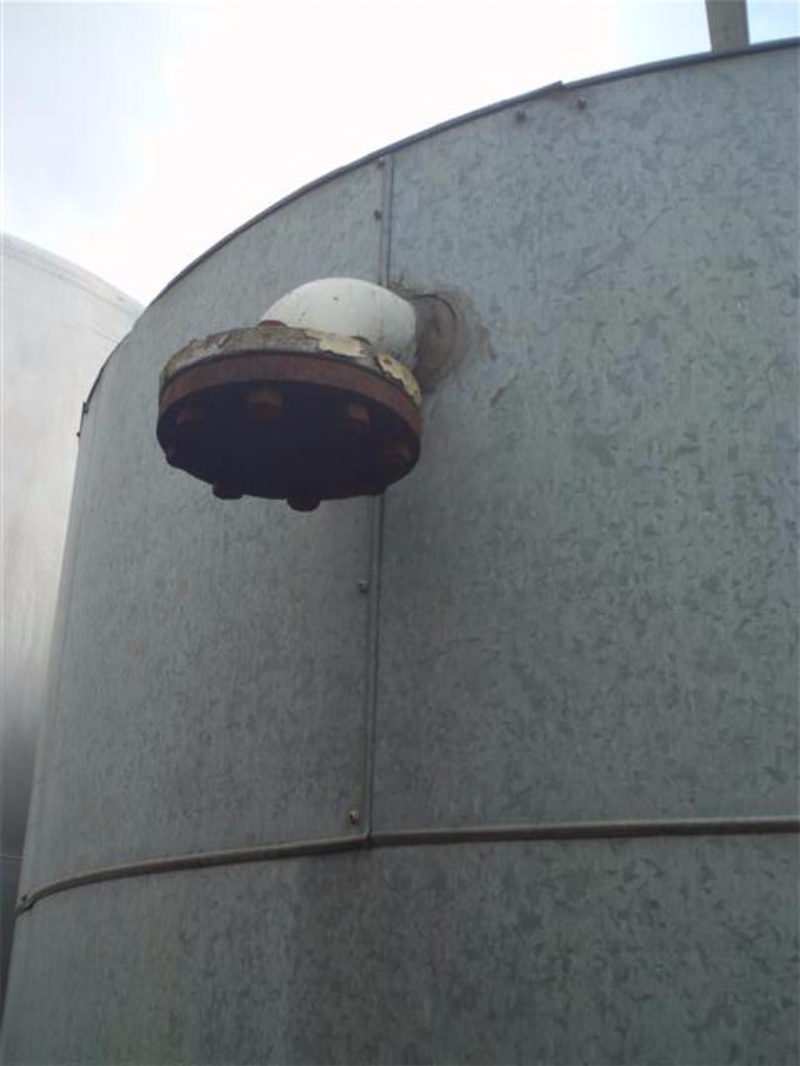

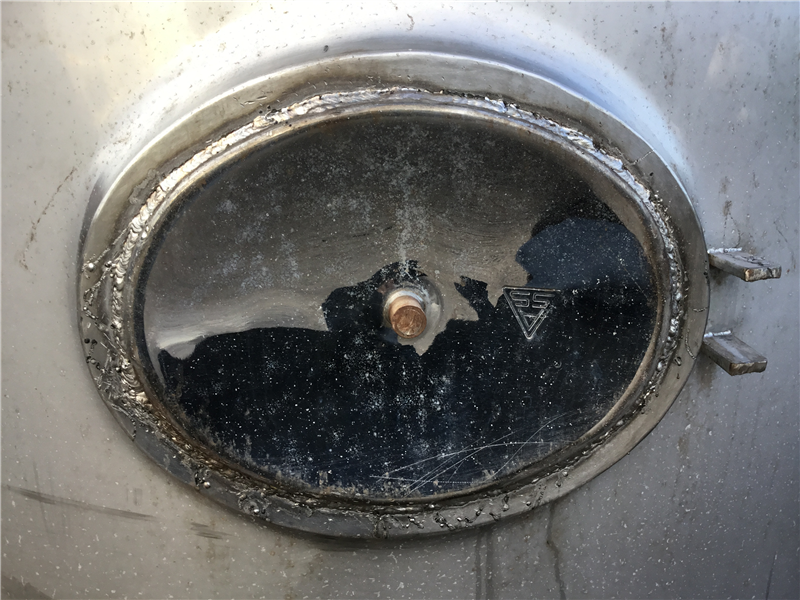

| Description (EN) | Manhole on side is sealed (welded) • Insulation on the mantle is partly gone |
