Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 9000 L
- In stock: 1
| General | |
|---|---|

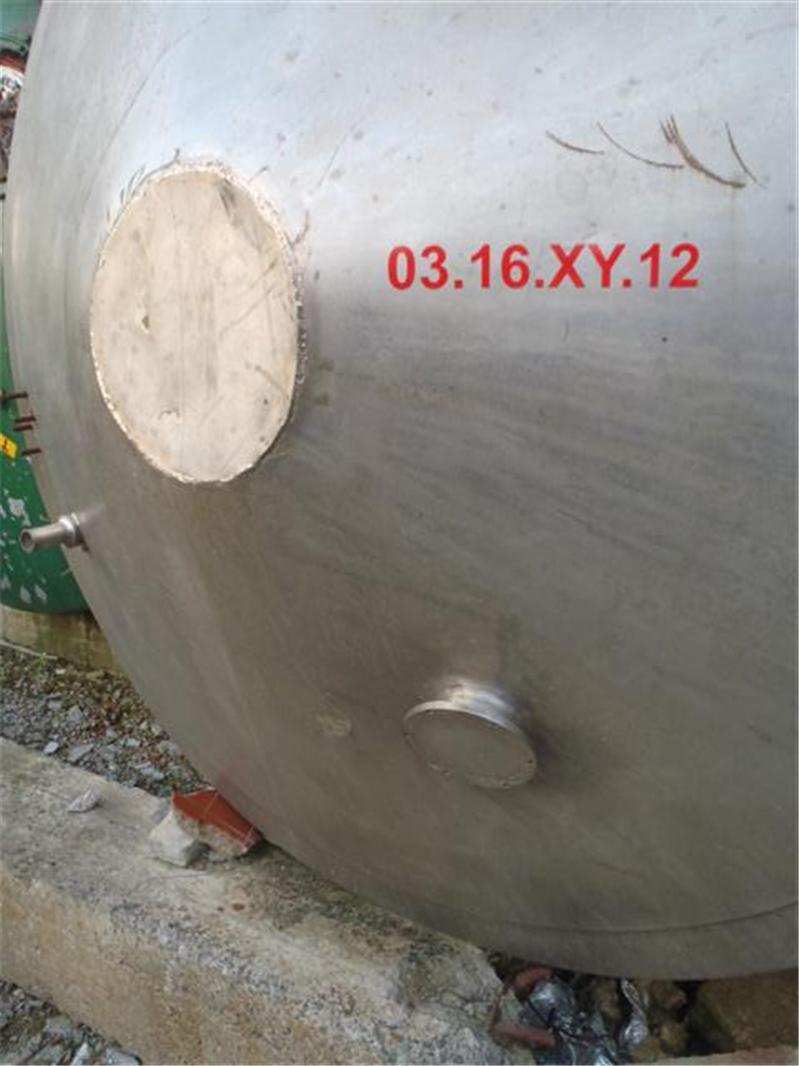

| Item number | 03.16.XY.12 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 9000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (Heating/Cooling) |

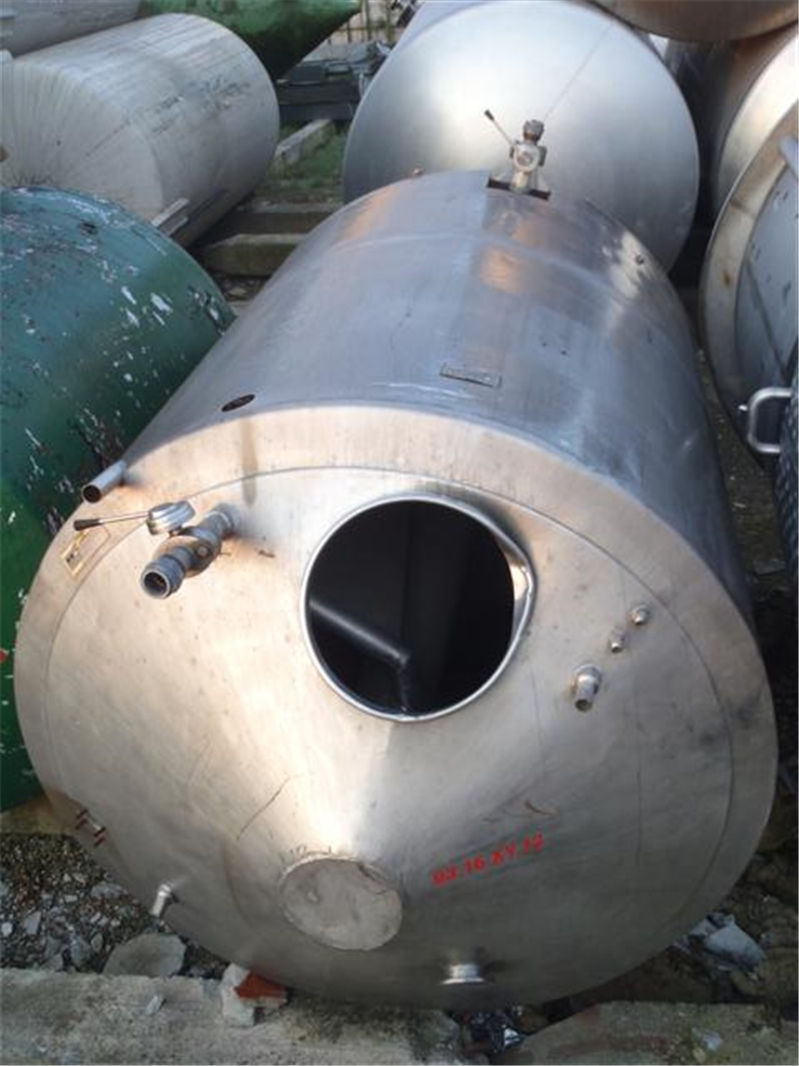

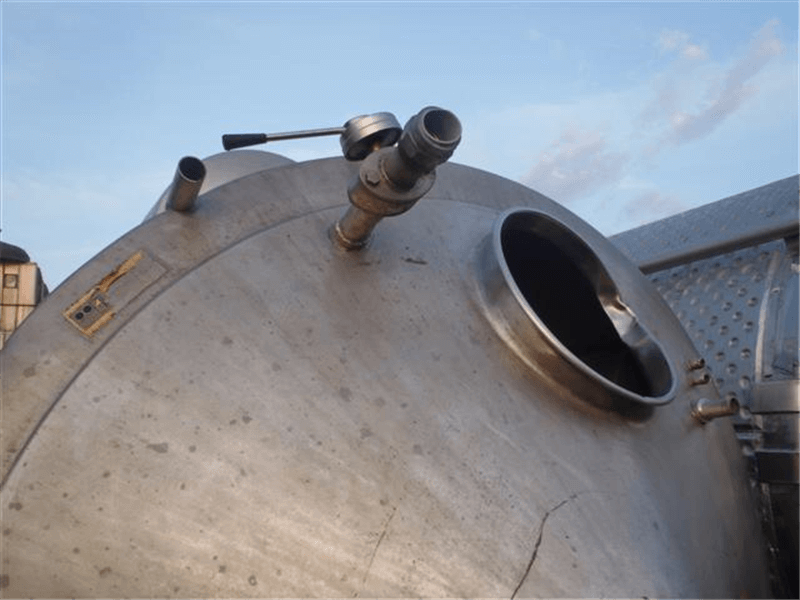

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500mm |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Food |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0316XY12.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Cylindrical length (mm) | 2550 |
| Outside diameter tank (mm) | 2100 |
| Total height (mm) | 3600 |
| Diameter tank (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Cork |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 0,5 |

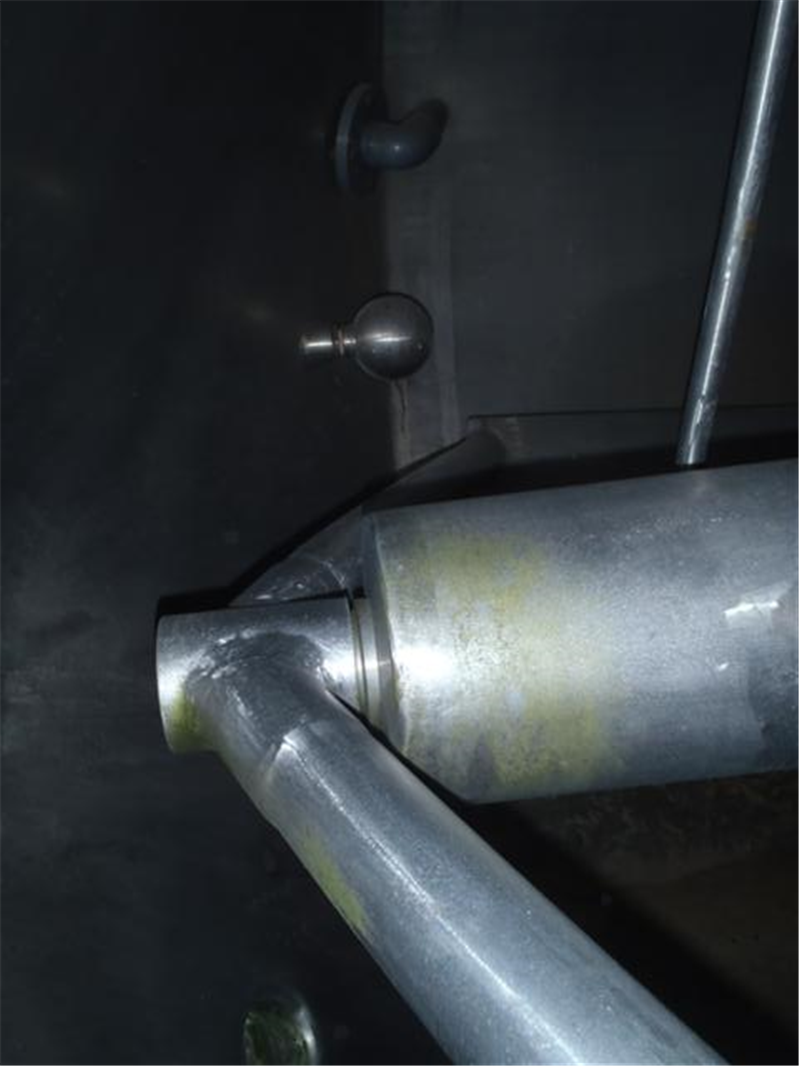

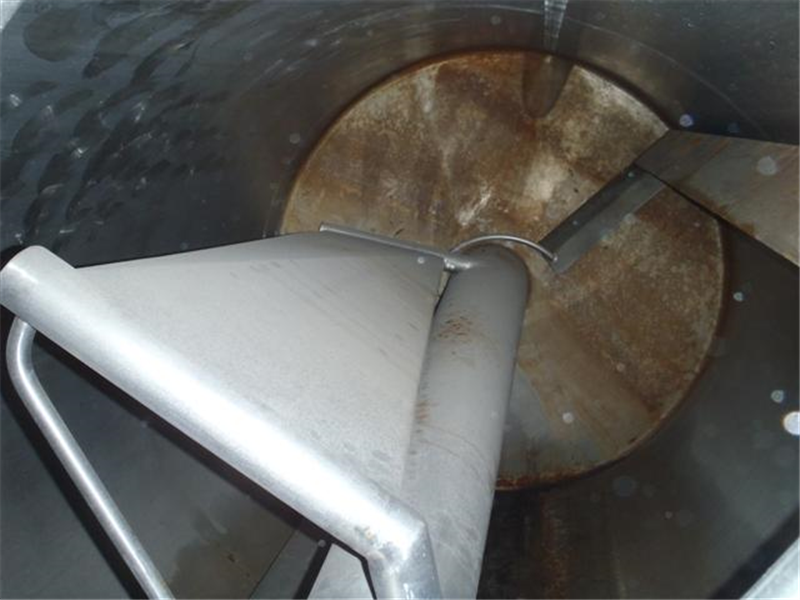

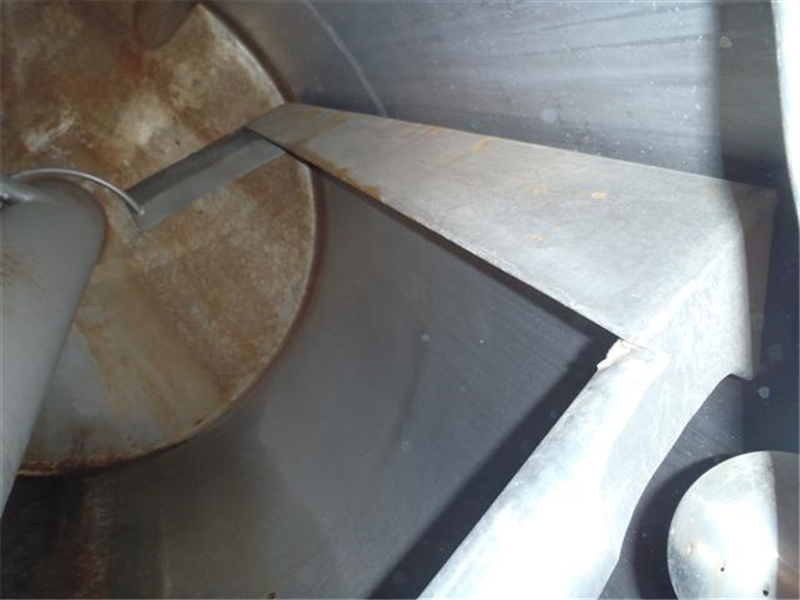

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Position | Centrally in the bottom |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Anchor |

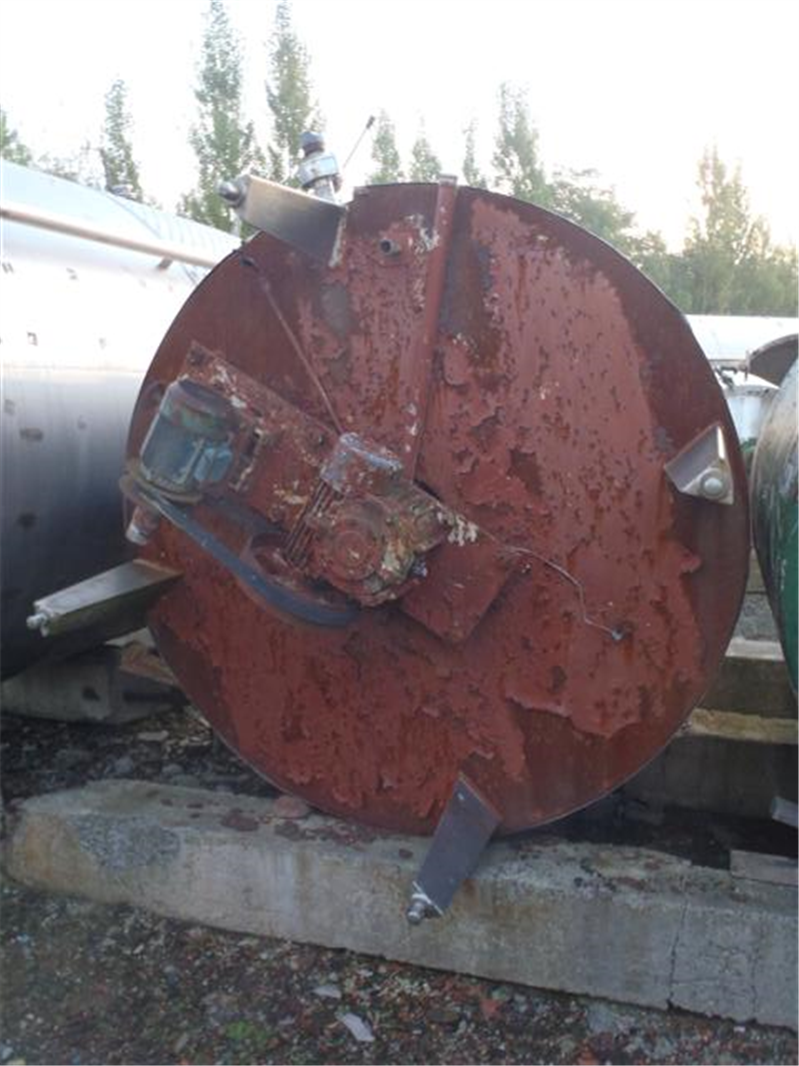

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Power (kw) | 3 |
| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|
| Description (EN) | Manhole cover not available |
