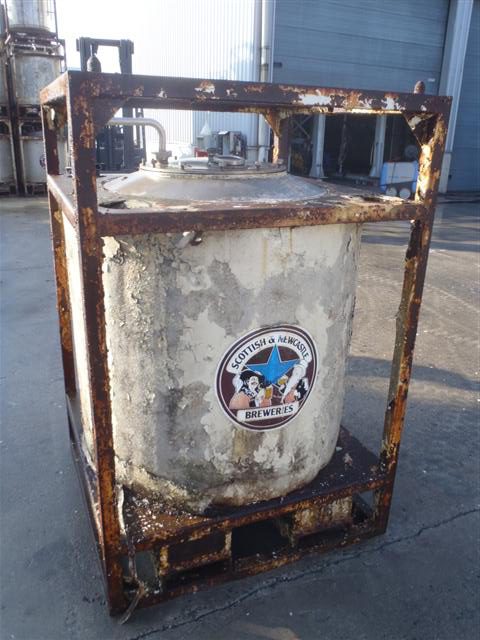

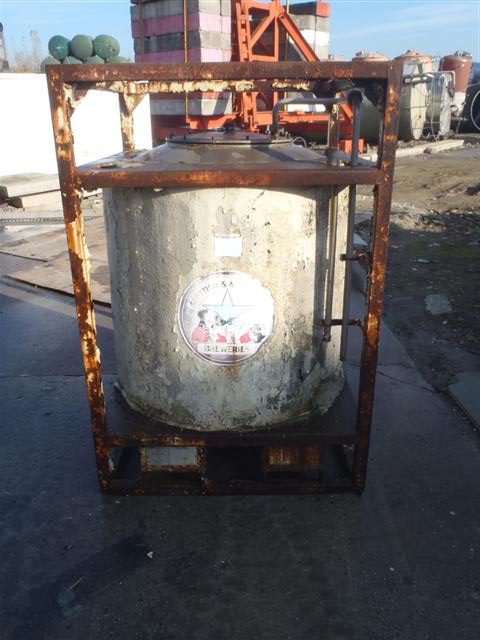

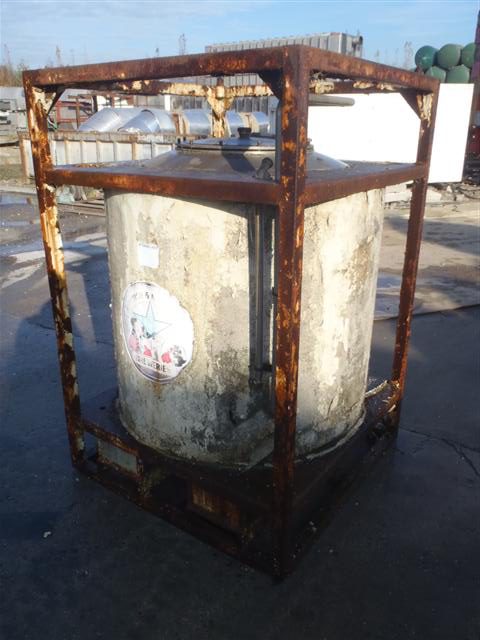

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 830 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.16.GB.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 830 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 2 |
| Fixation | framework |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450mm |
| Tank with total drain? | Yes |

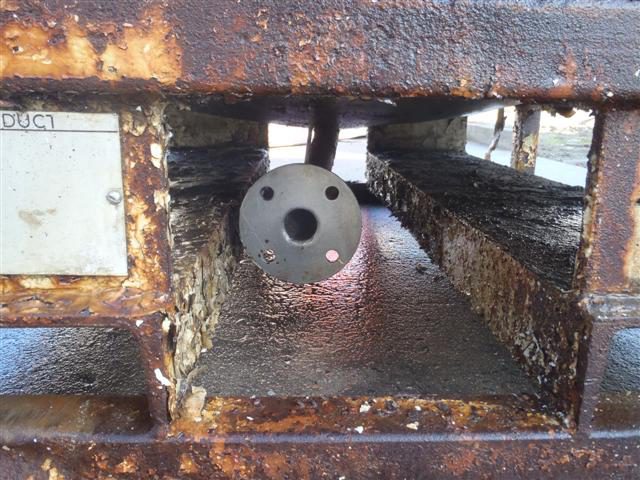

| Type of outlet (s) | Flens 1" |
| Diameter of outlet (mm) | 25 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 395 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Construction data available | No |
| Drawing 1 | t0316GB01.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Cylindrical length (mm) | 990 |
| Height bottom (mm) | 75 |
| Outside diameter tank (mm) | 1020 |
| Total height (mm) | 1640 |
| Length (mm) | 1112 |
| Diameter tank (mm) | 900 |
| Width (mm) | 1112 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Fiberglass |
