Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 660 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.12.FB.11 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 660 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 1,5 |
| Test pressure tank (Barg) | 3,5 |

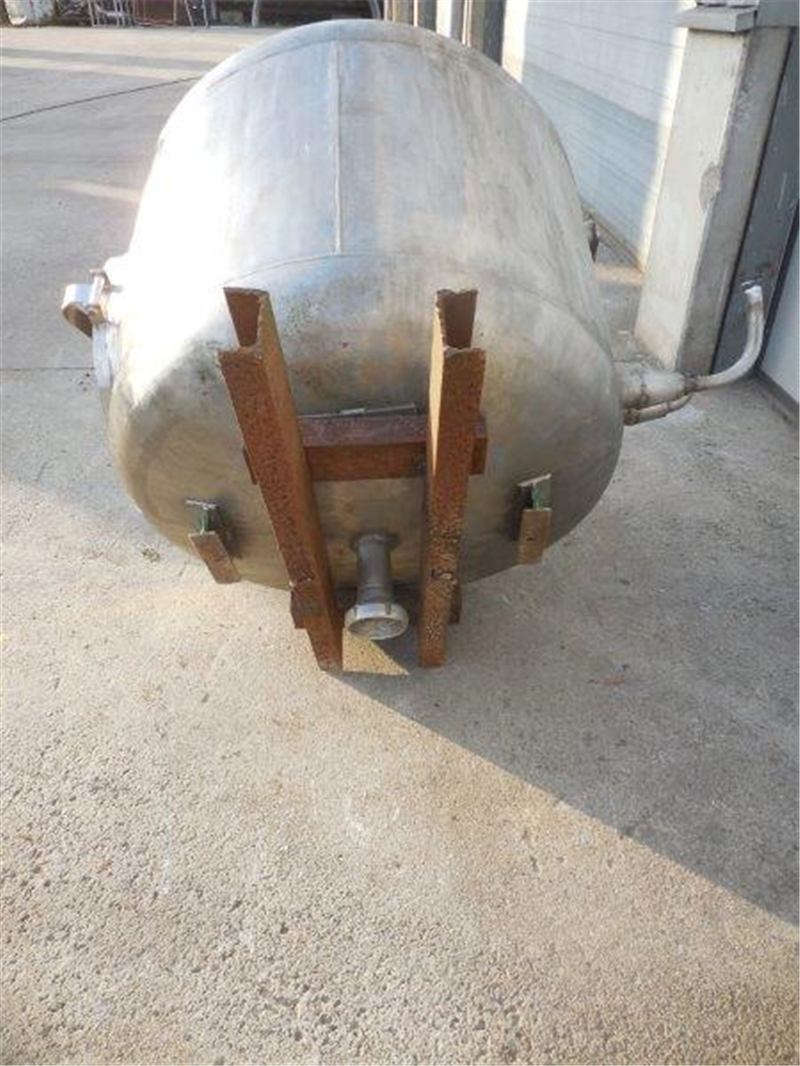

| Fixation | chassis |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

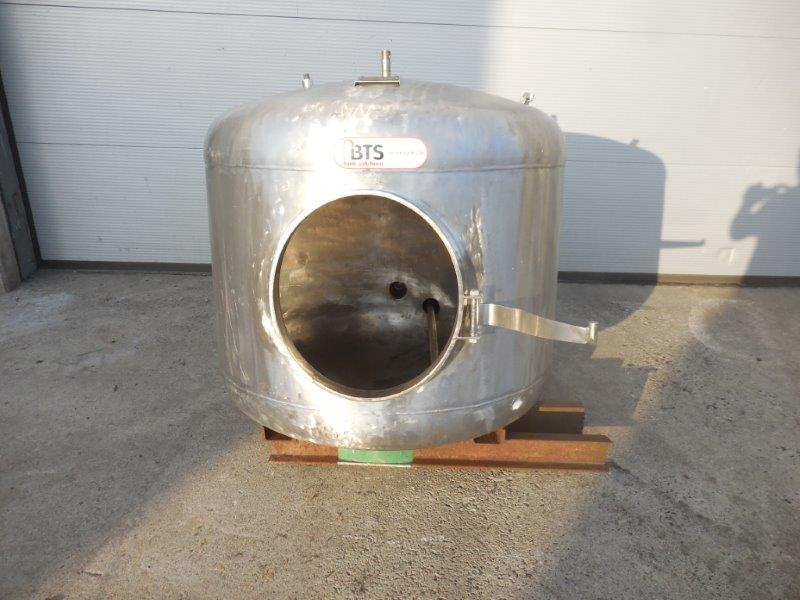

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 400x450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Melkkoppeling wartelmoer |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |

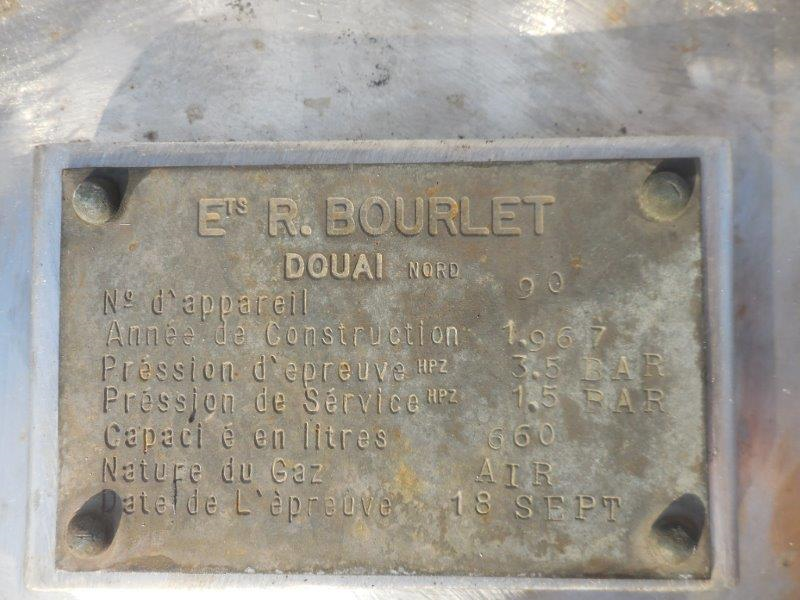

| Type plate manufacturer | Yes |
| Manufacturer | R. BOURLET |
| Year Built | 1967 |
| Construction data available | No |
| Drawing 1 | t0312FB11.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Cylindrical length (mm) | 700 |
| Height bottom (mm) | 150 |
| Total height (mm) | 1000 |
| Diameter tank (mm) | 970 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | no cover for manhole |
