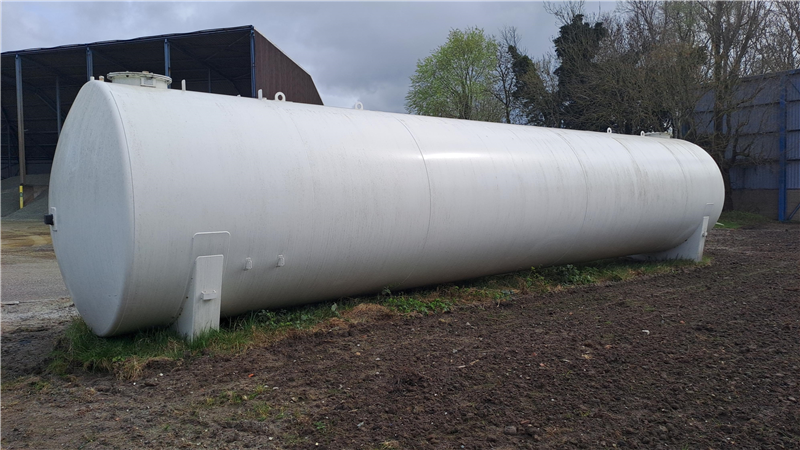

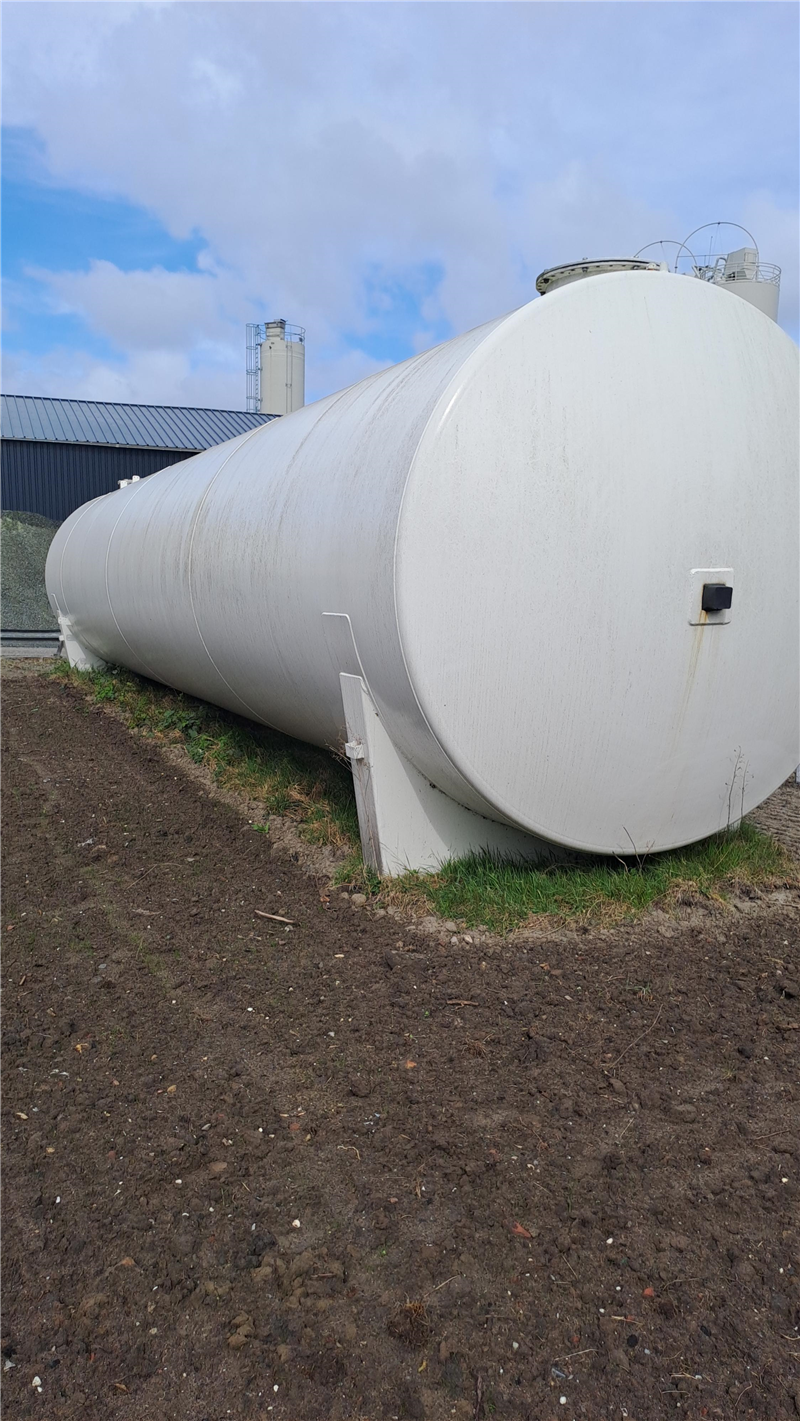

New storage tank
- Material: steel-epoxy
- Condition: New
- Volume (in litres): 100000 L
- In stock: 1
| General | |
|---|---|
| Item number | 02.46.NL.01 |
| Material | steel-epoxy |
| Number | 1 |
| Capacity (Liters) | 100000 |
| Type tank | Storage tank |
| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1,3 |
| Number of manhole | 2 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 600 |
| Tank with total drain? | No |
| Type of outlet (s) | Dompelbuis |
| Diameter of outlet (mm) | 2" |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 18350 |
| Condition | New |
| Type plate manufacturer | Yes |
| Manufacturer | TAB De Blesse |
| Year Built | 2022 |
| Design Code | BRL-K21051/1B-1/EN12285-2 |
| Construction data available | Yes |
| Appendix 1 | Tankconformiteitsbewijs BRL-K21051-01 - tank 49349.pdf |
| Appendix 2 | Tank nr 49349 - 100 m3.pdf |
| Appendix 3 | Keuringsrapport coating applicatie BRL-K790 - tank 49349.pdf |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 9 |
| Bottom thickness (mm) | 9 |
| Periphery (mm) | 9420 |
| Cylindrical length (mm) | 14000 |
| Height bottom (mm) | 475 |
| Outer wall thickness (mm) | 4 |
| Total height (mm) | 3250 |
| Length (mm) | 14950 |
| Diameter tank (mm) | 3000 |
| Width (mm) | 3000 |
| Insulation | |
|---|---|
| Insulation | No |
