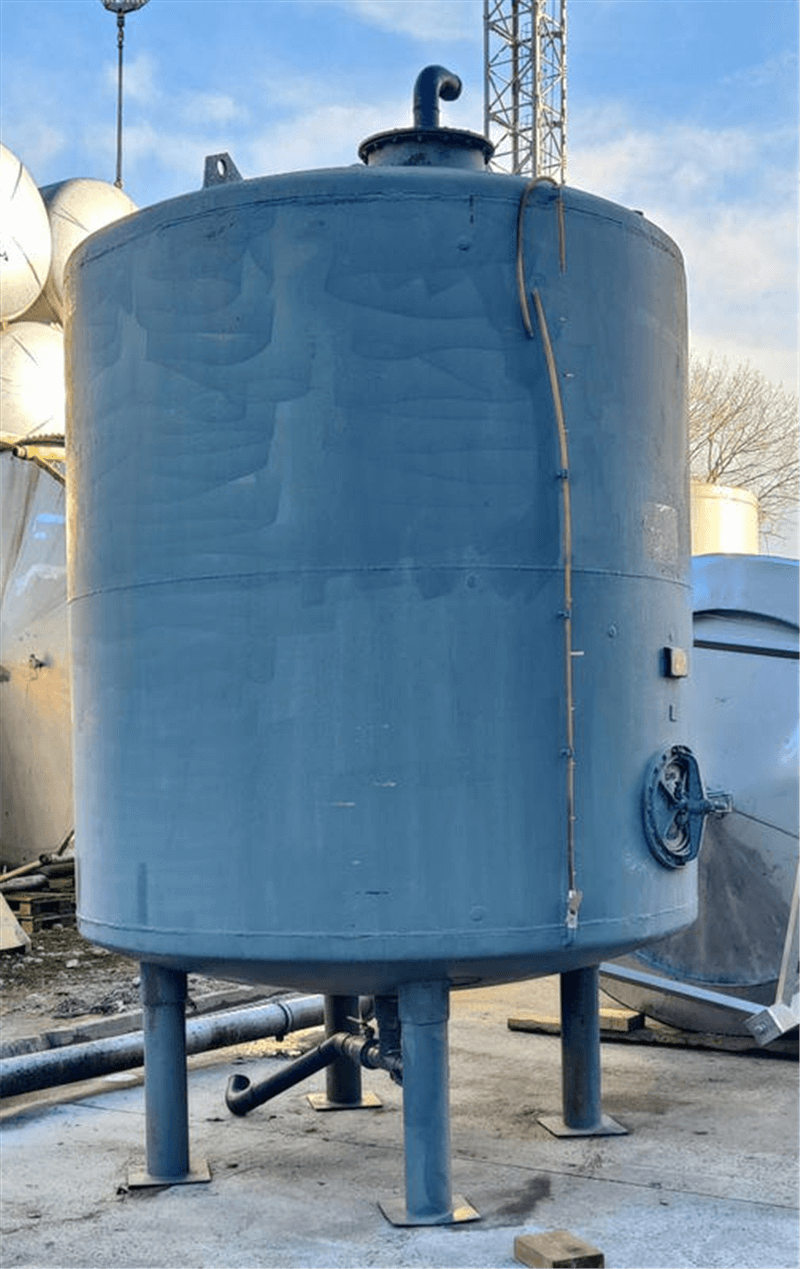

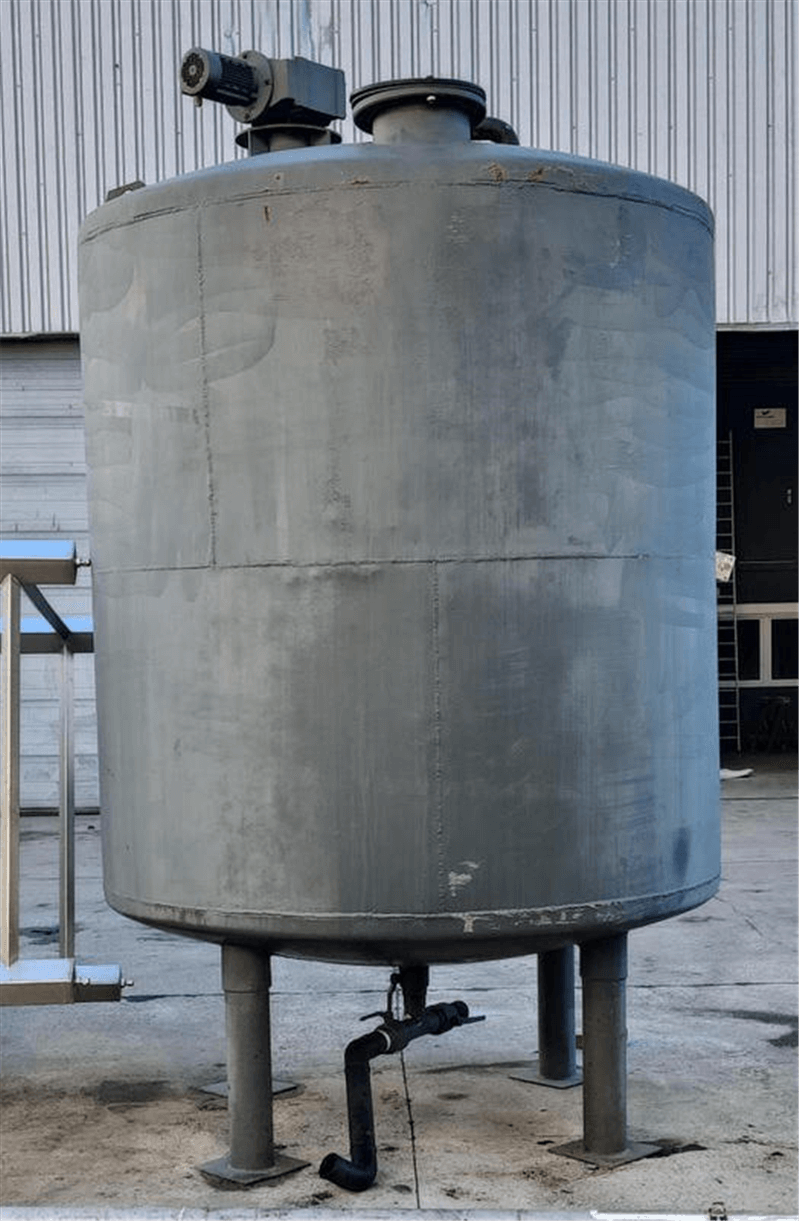

Used mixing vessel
- Material: steel-epoxy
- Condition: Used
- Volume (in litres): 13000 L
- In stock: 1
| General | |
|---|---|
| Item number | 02.44.MA.01 |
| Material | steel-epoxy |
| Number | 1 |
| Capacity (Liters) | 13000 |
| Type tank | Mixing vessel |

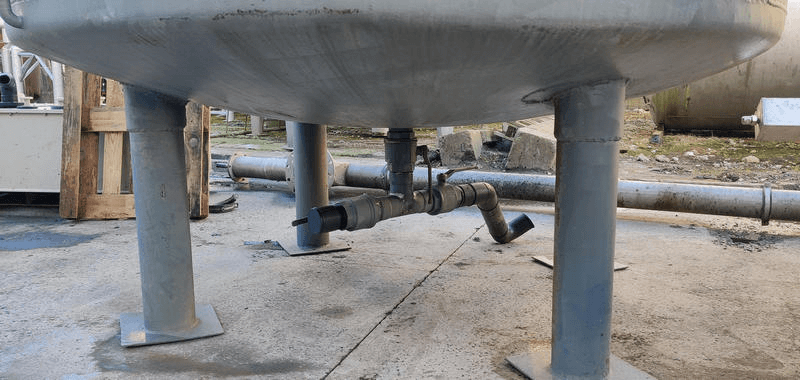

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 430x330mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | DN75 |
| locality | B-7711 Belgium |
| Last application | Agriculture |
| Provision tank cleaning | None |
| Weight (kg) | 2200 |
| Condition | Used |

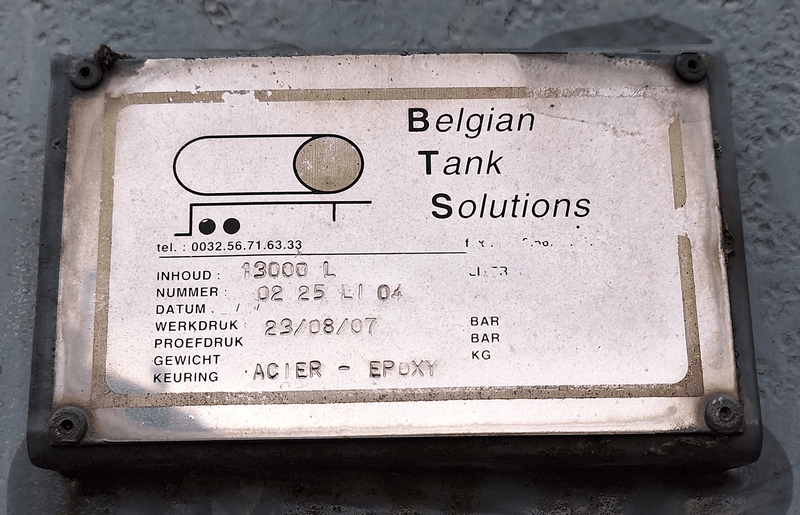

| Type plate manufacturer | Yes |
| Appendix 1 | 0244MA01_draw.pdf |
| Appendix 2 | 0244MA01_reinigingsatest.pdf |
| Top side | |
|---|---|

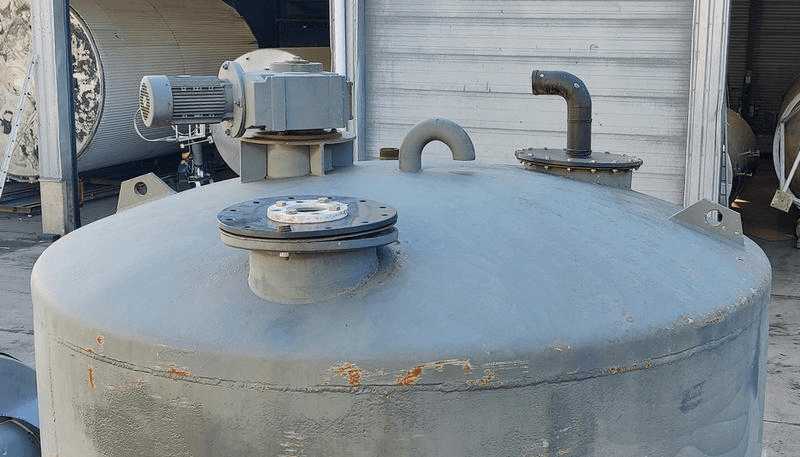

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6,2 |
| Bottom thickness (mm) | 8,6 |
| Periphery (mm) | 7550 |
| Cylindrical length (mm) | 2350 |
| Height bottom (mm) | 350 |
| Total height (mm) | 4050 |
| Length (mm) | 2405 |
| Diameter tank (mm) | 2390 |
| Width (mm) | 2405 |
| Insulation | |
|---|---|
| Insulation | No |

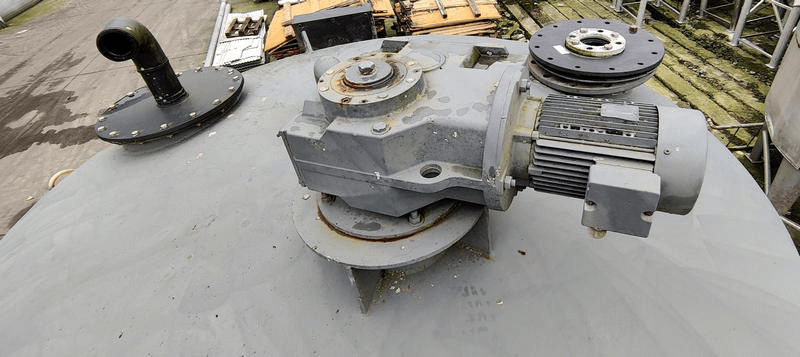

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

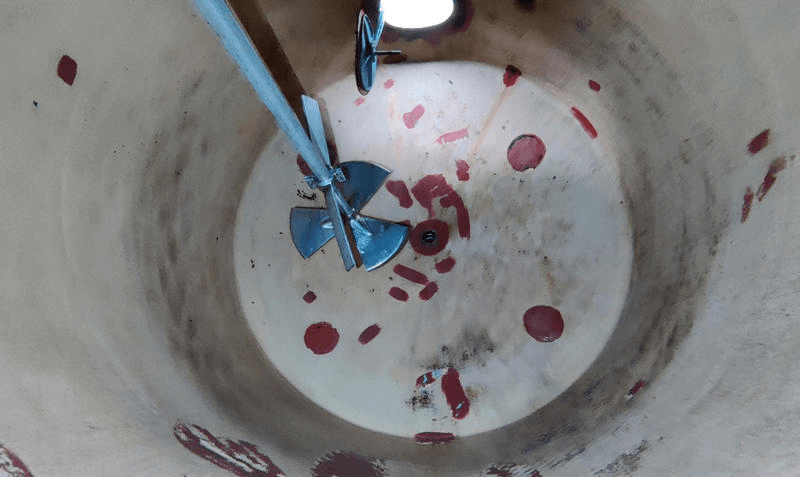

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2500 |

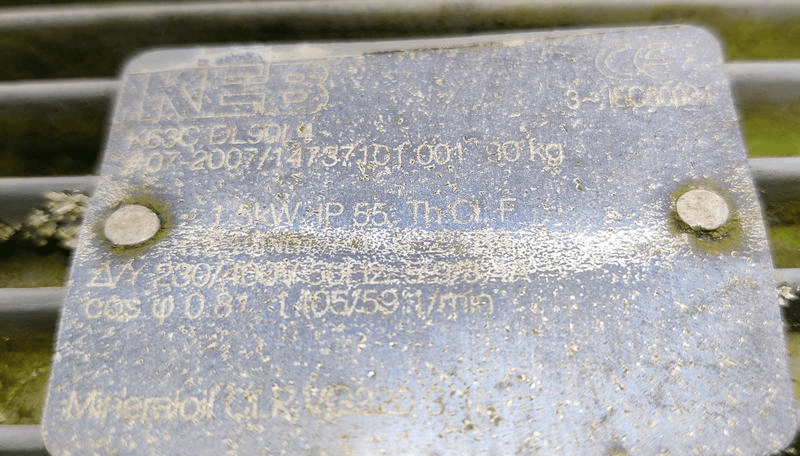

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 59 |
