Used storage tank
- Material: steel-epoxy
- Condition: Used
- Volume (in litres): 2130 L
- In stock: 1
| General | |
|---|---|
| Item number | 02.37.JA.08 |
| Material | steel-epoxy |
| Number | 1 |
| Capacity (Liters) | 2130 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 375x285mm |

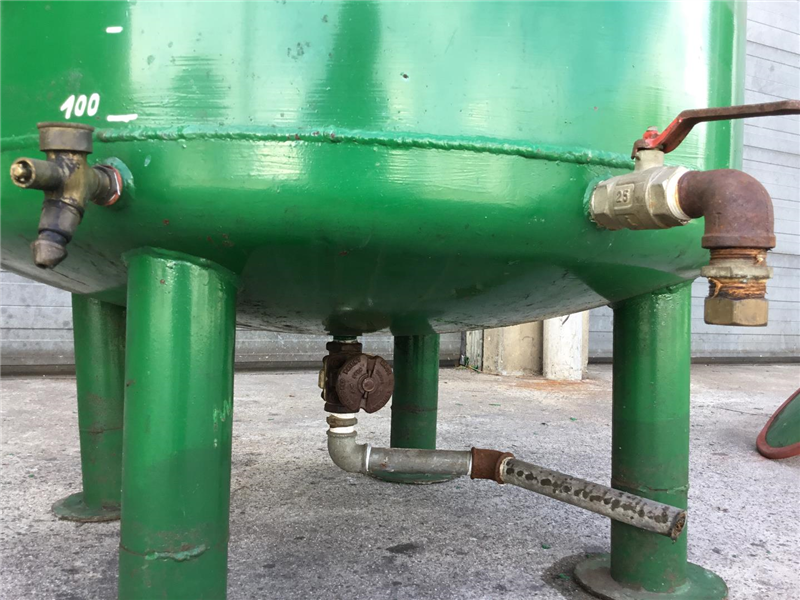

| Tank with total drain? | Yes |
| Type of outlet (s) | Draadaansluiting |
| Diameter of outlet (mm) | 30 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Partly open |

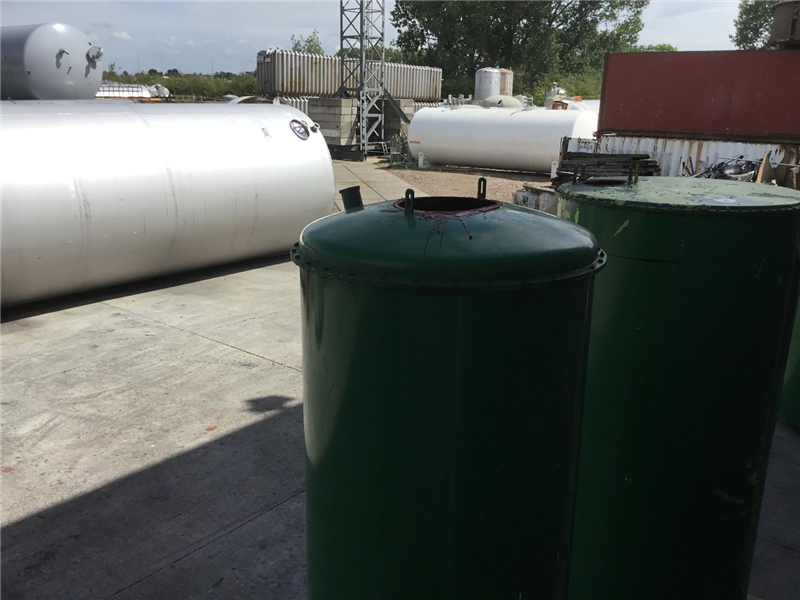

| Detail top side | Bolted cover |
| Thickness of top side (mm) | 4,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,5 |
| Bottom thickness (mm) | 4,5 |
| Periphery (mm) | 3150 |
| Cylindrical length (mm) | 2750 |
| Height bottom (mm) | 150 |
| Total height (mm) | 3400 |
| Diameter tank (mm) | 993 |
| Insulation | |
|---|---|
| Insulation | No |
