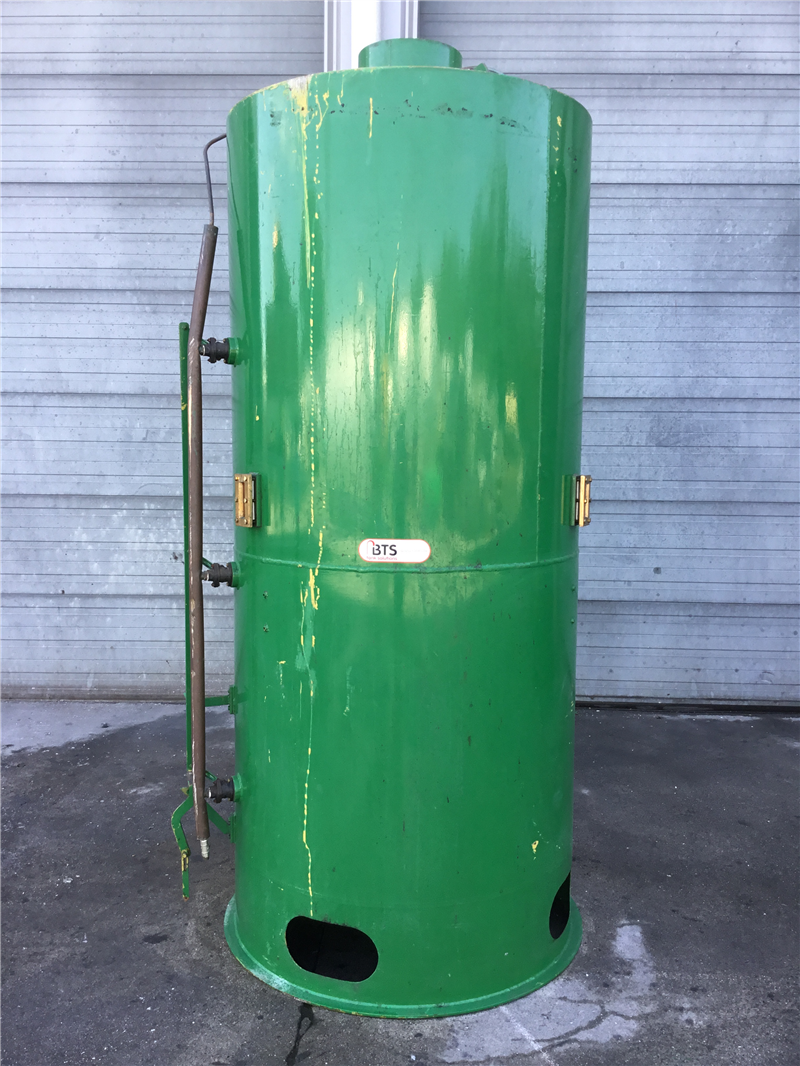

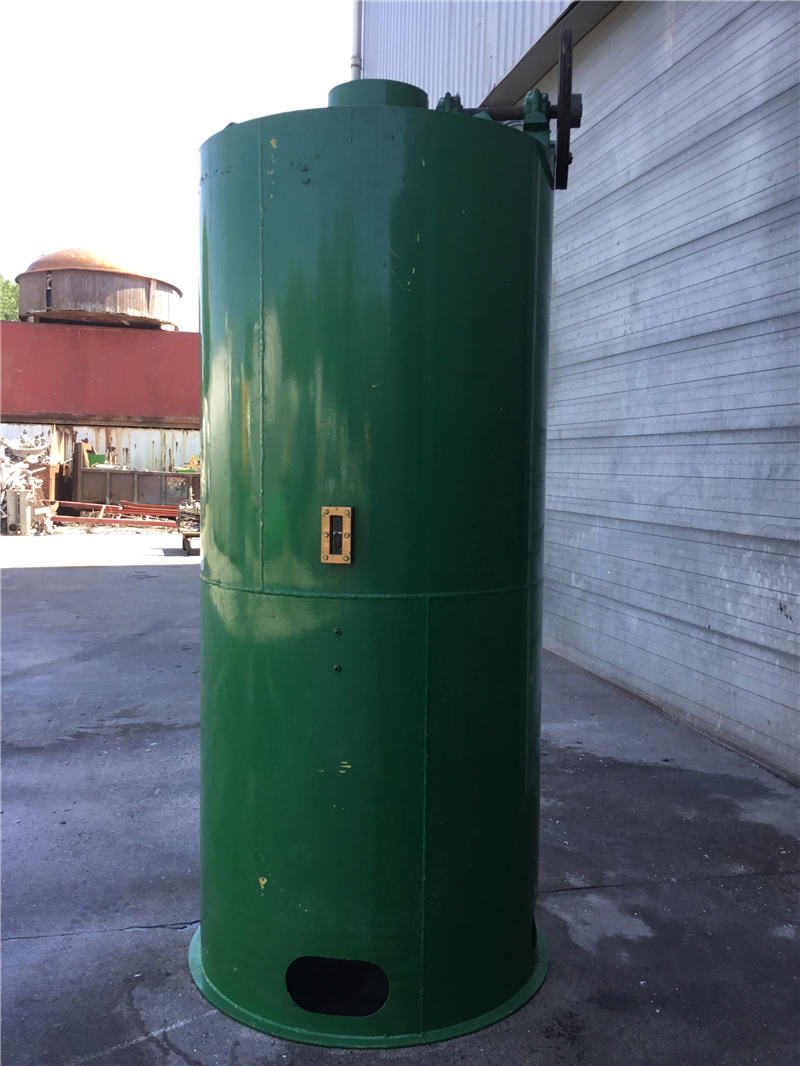

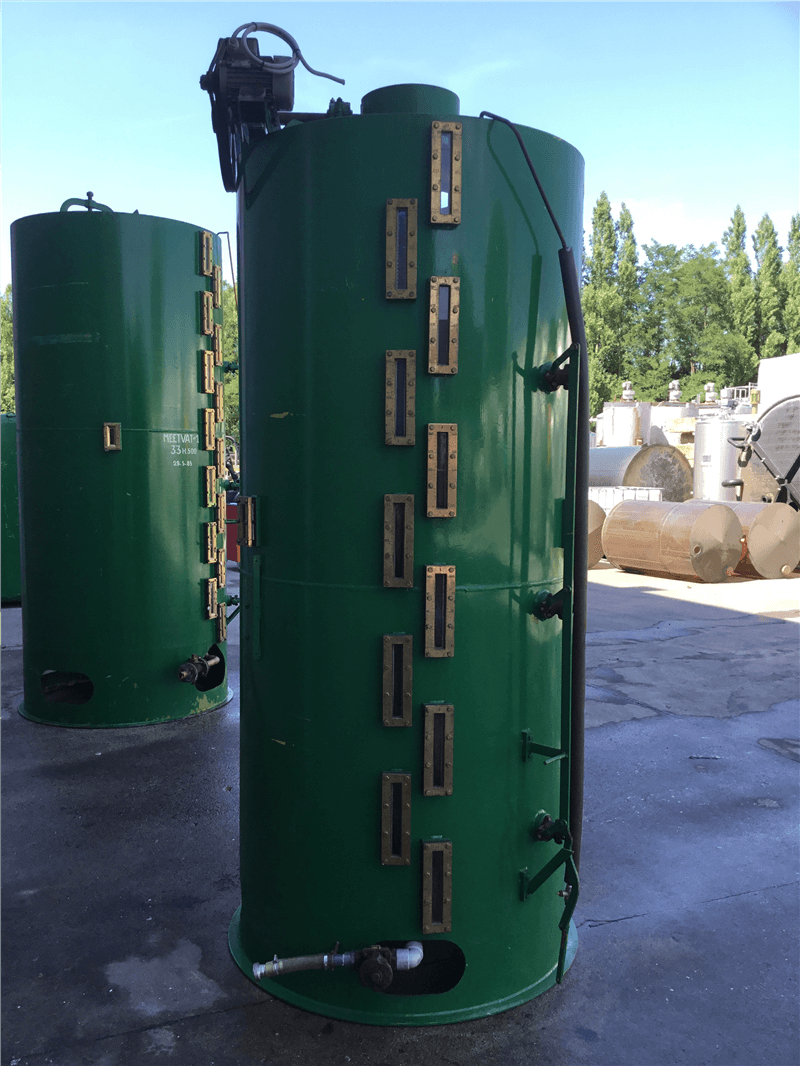

Used mixing vessel
- Material: steel-epoxy
- Condition: Used
- Volume (in litres): 2000 L
- In stock: 1
| General | |
|---|---|
| Item number | 02.37.JA.05 |
| Material | steel-epoxy |
| Number | 1 |
| Capacity (Liters) | 2000 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Number of manhole | 2 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 370x295mm |
| Tank with total drain? | No |
| Type of outlet (s) | Buis |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 5 |
| Periphery (mm) | 3550 |
| Cylindrical length (mm) | 2250 |
| Total height (mm) | 3000 |
| Diameter tank (mm) | 1122 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2200 |

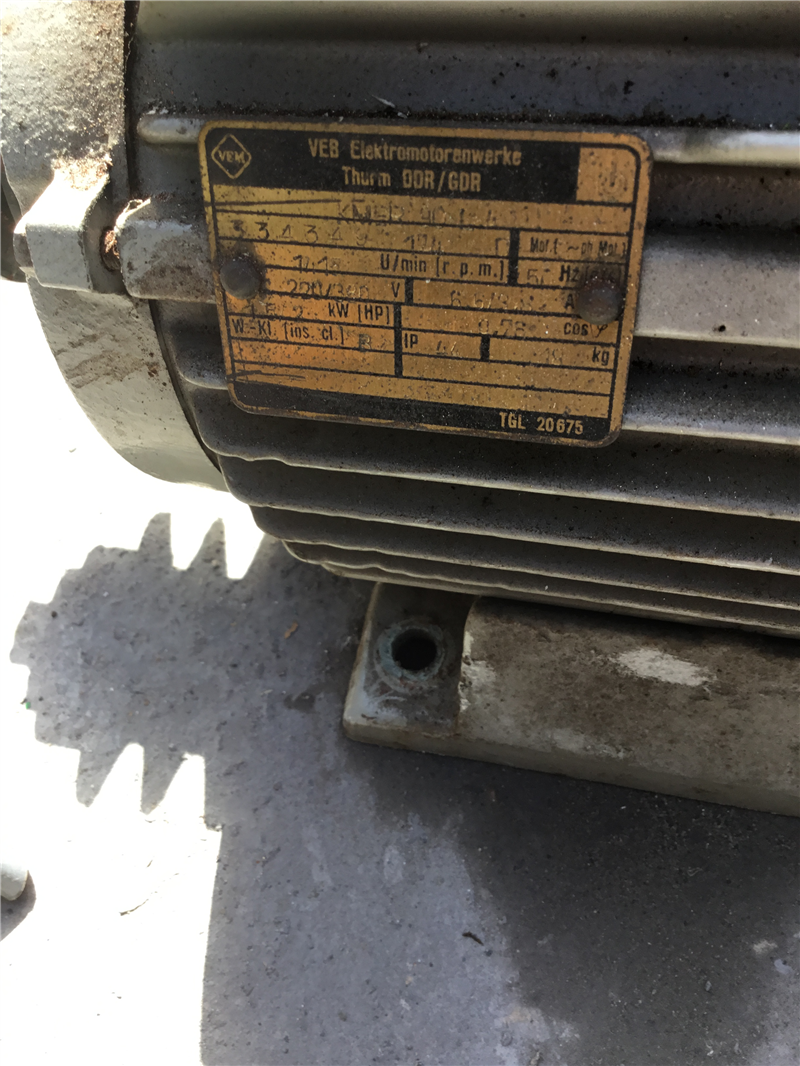

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
