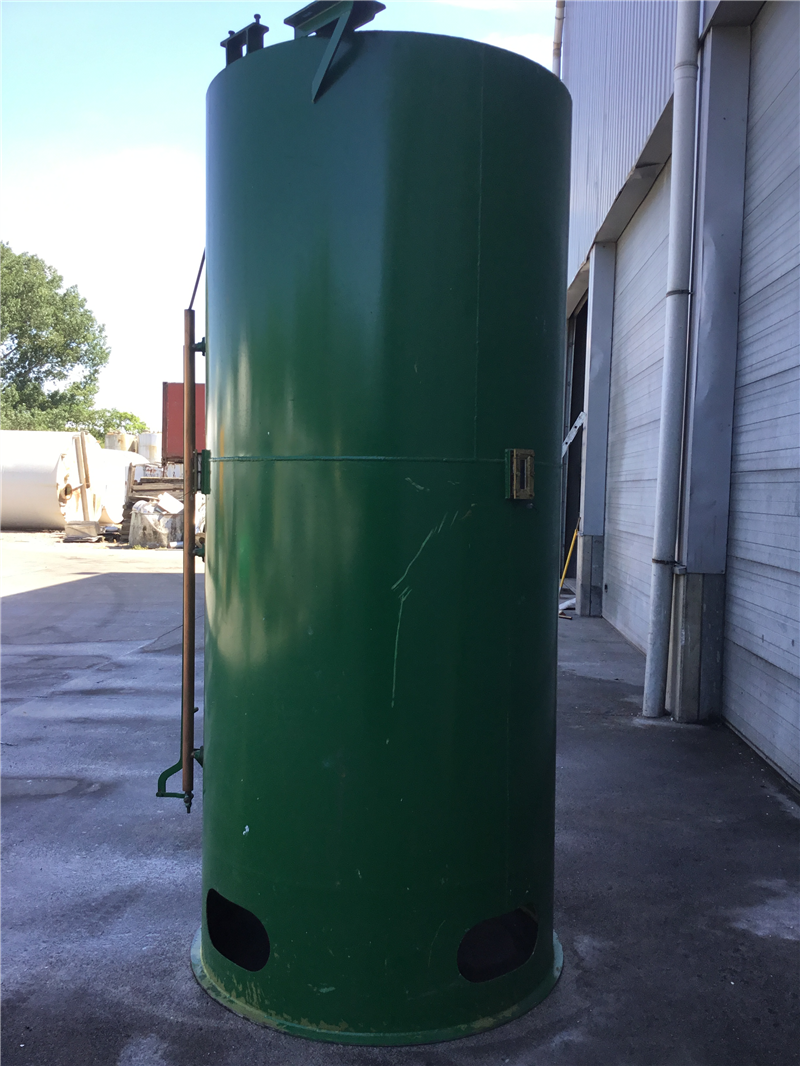

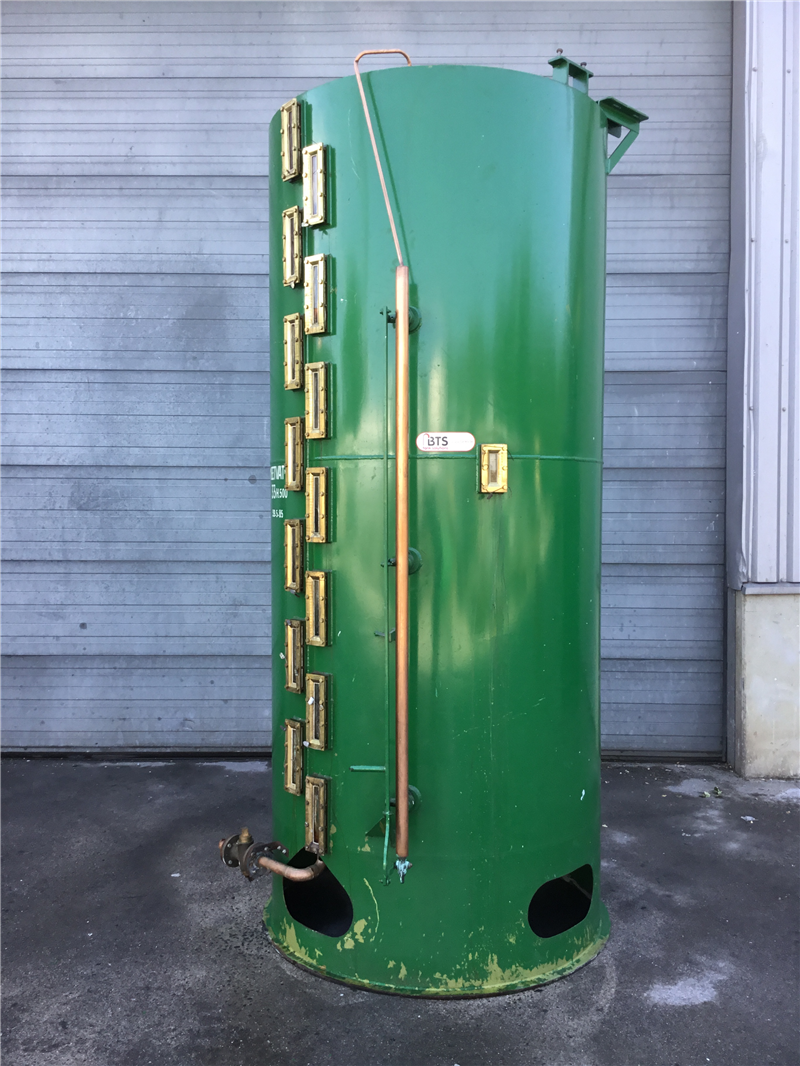

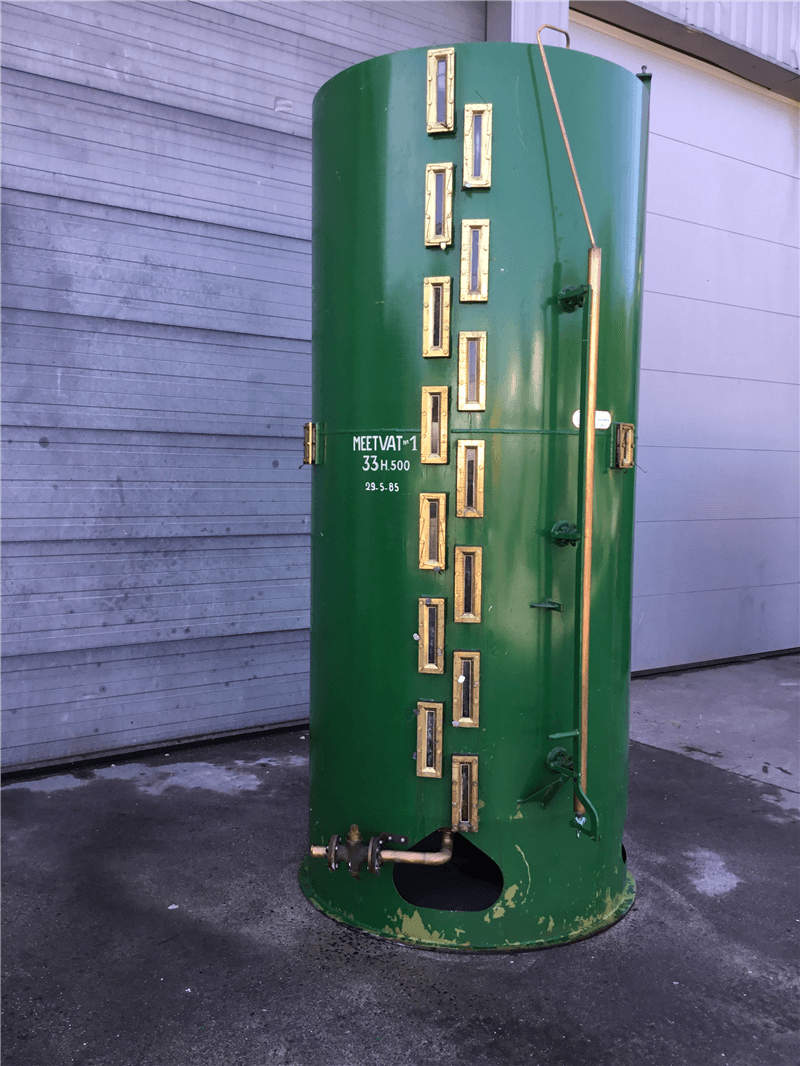

Used mixing vessel

  • Material: steel-epoxy
  • Condition: Used
  • Volume (in litres): 3400 L
  • In stock: 2
General
Item number 02.37.JA.03
Material steel-epoxy
Number 2
Capacity (Liters) 3400
Type tank Mixing vessel
Fixation Skirt
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Flat bottom
Tank model Single wall
Number lifting lugs 1
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes 370x295mm
Tank with total drain? No

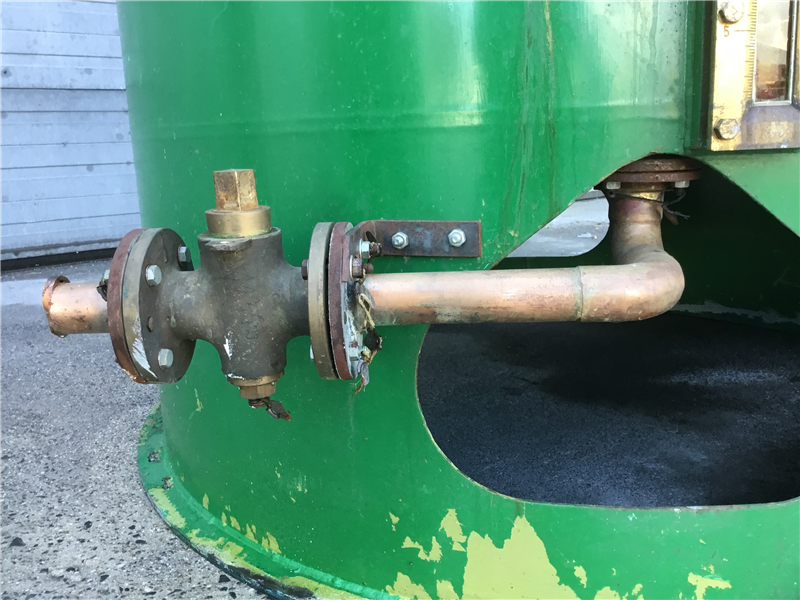

Type of outlet (s) Flensaansluiting
Diameter of outlet (mm) 35
locality B-7711 Belgium
Last application Food
Provision tank cleaning None
Condition Used
Type plate manufacturer No
Construction data available No
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
02.37.JA.03 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Flat bottom
Thickness closed dome (mm) 4
Dimensions
Cylinder Thickness (mm) 4
Bottom thickness (mm) 5
Periphery (mm) 4130
Cylindrical length (mm) 2600
Total height (mm) 3500
Diameter tank (mm) 1307
Insulation
Insulation No

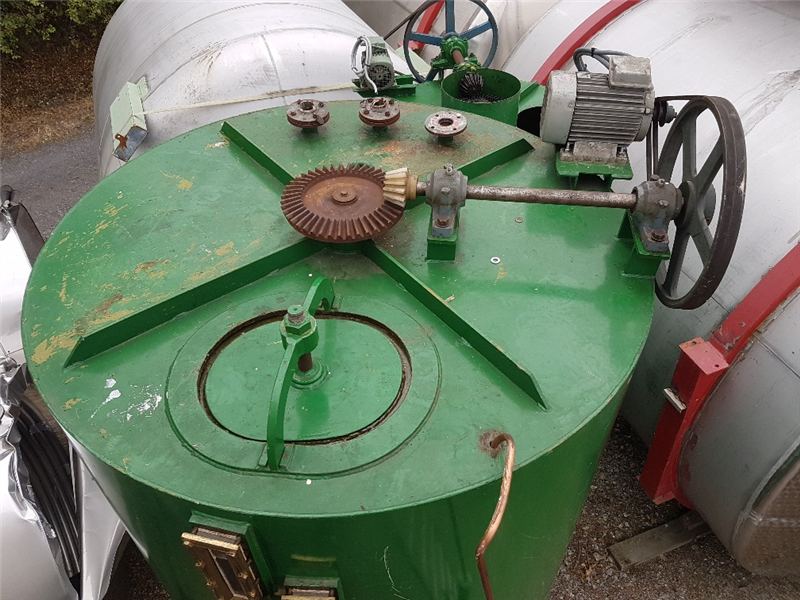

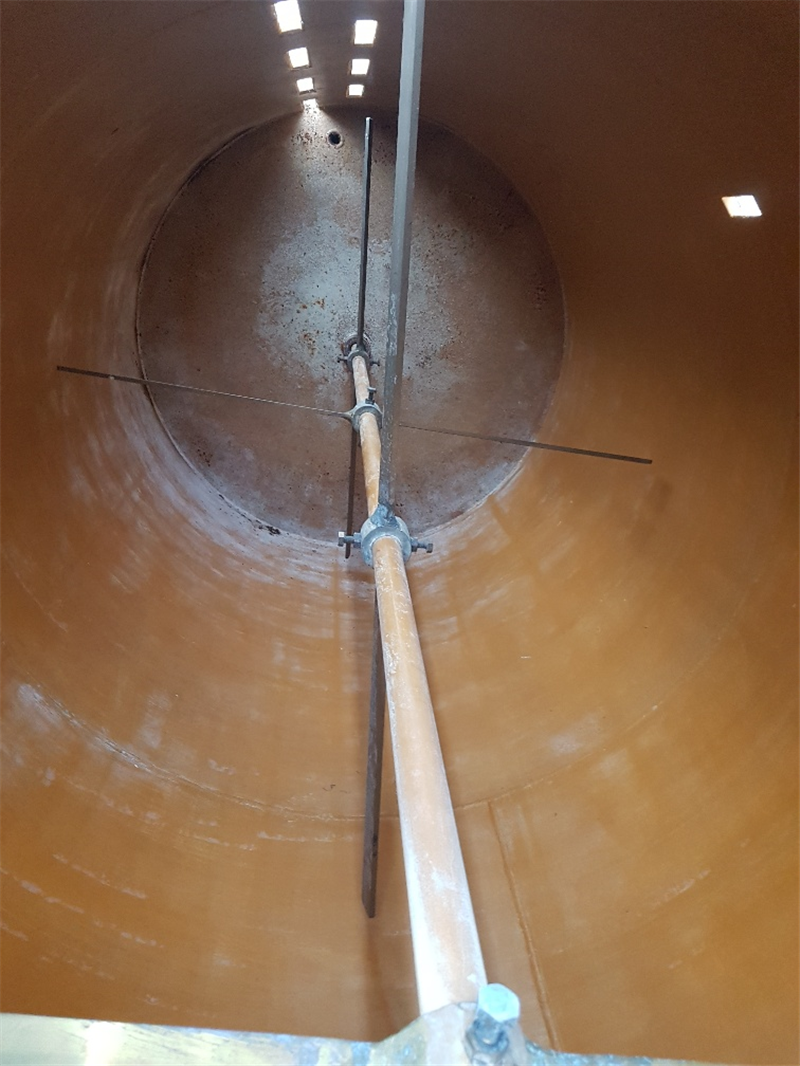

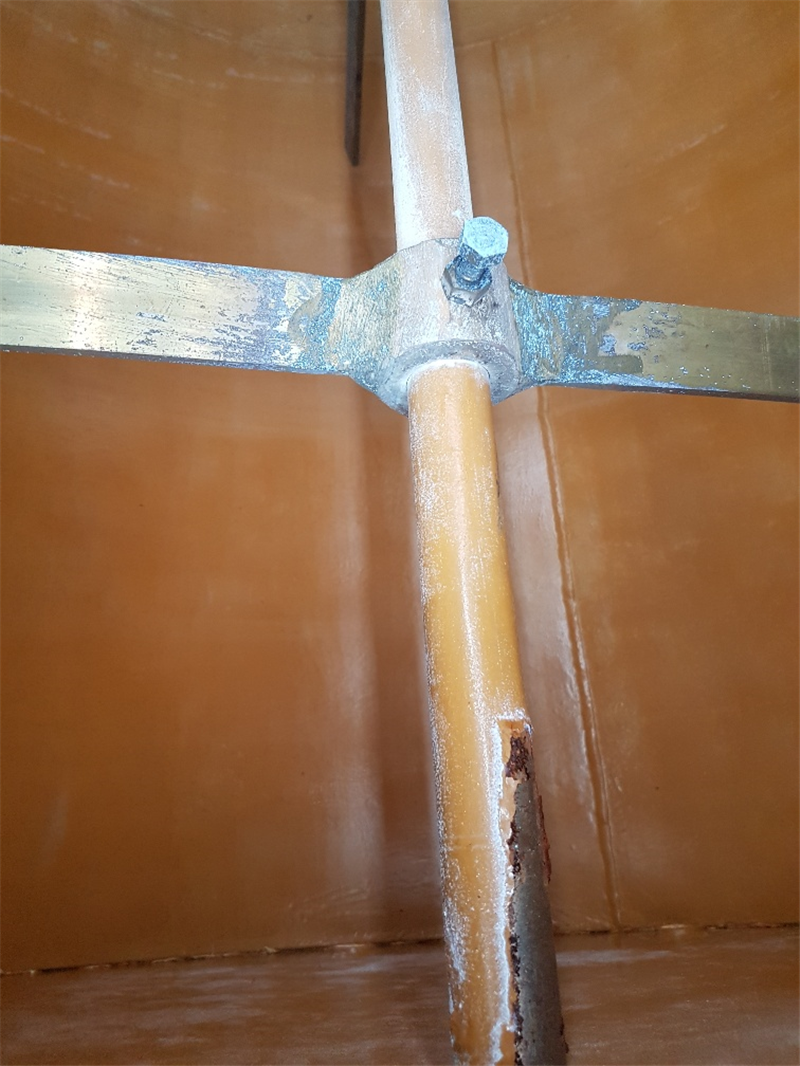

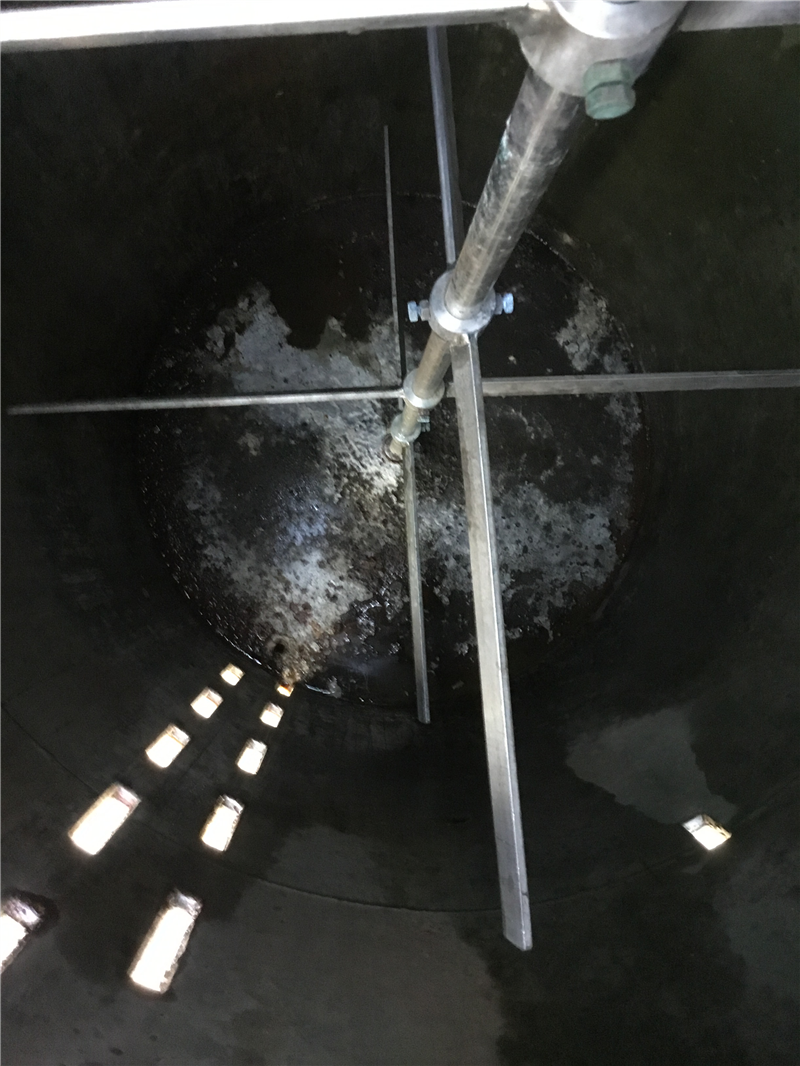

Agitators
Number of agitators 1
Agitator 1: Type Slowly rotating mixer
Agitator 1: Position Centrally on the top
Agitator 1: Material Stainless steel 304
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 2500

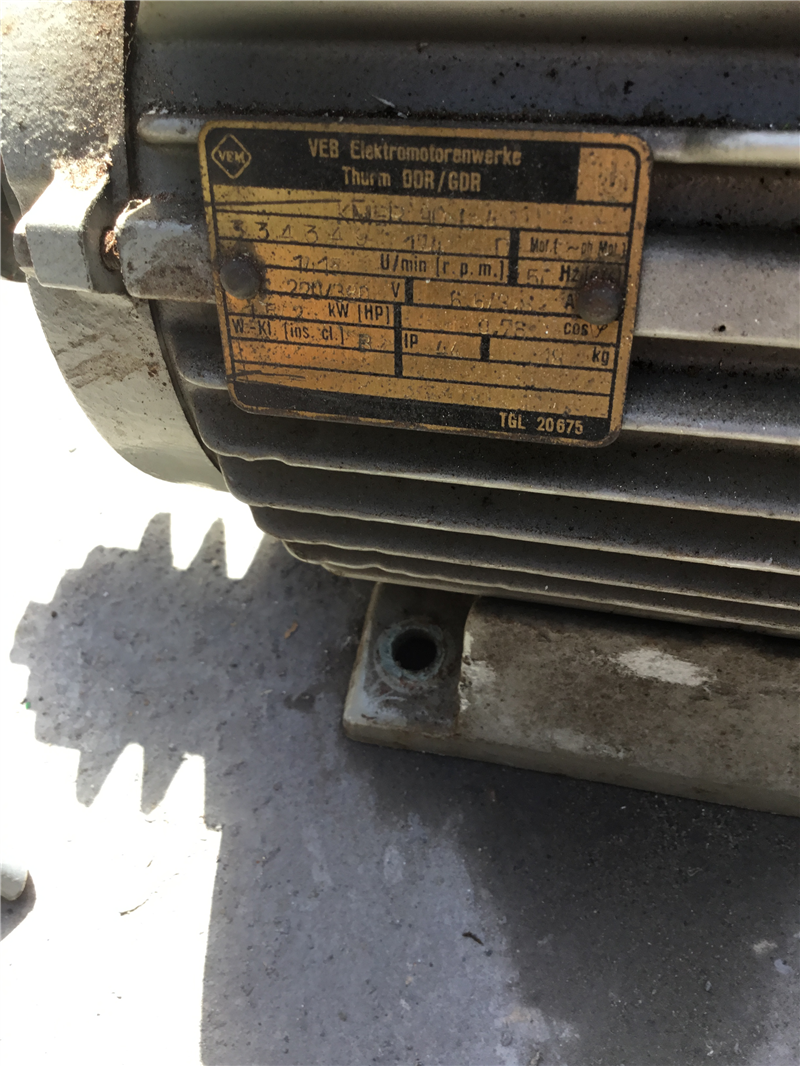

Agitator 1: Engine Type electric motor
Agitator 1: Atex/Ex? No
Agitator 1: Voltage (V) 380
Agitator 1: Power (kw) 1,5
Agitator 1: Drive Type Reductor
