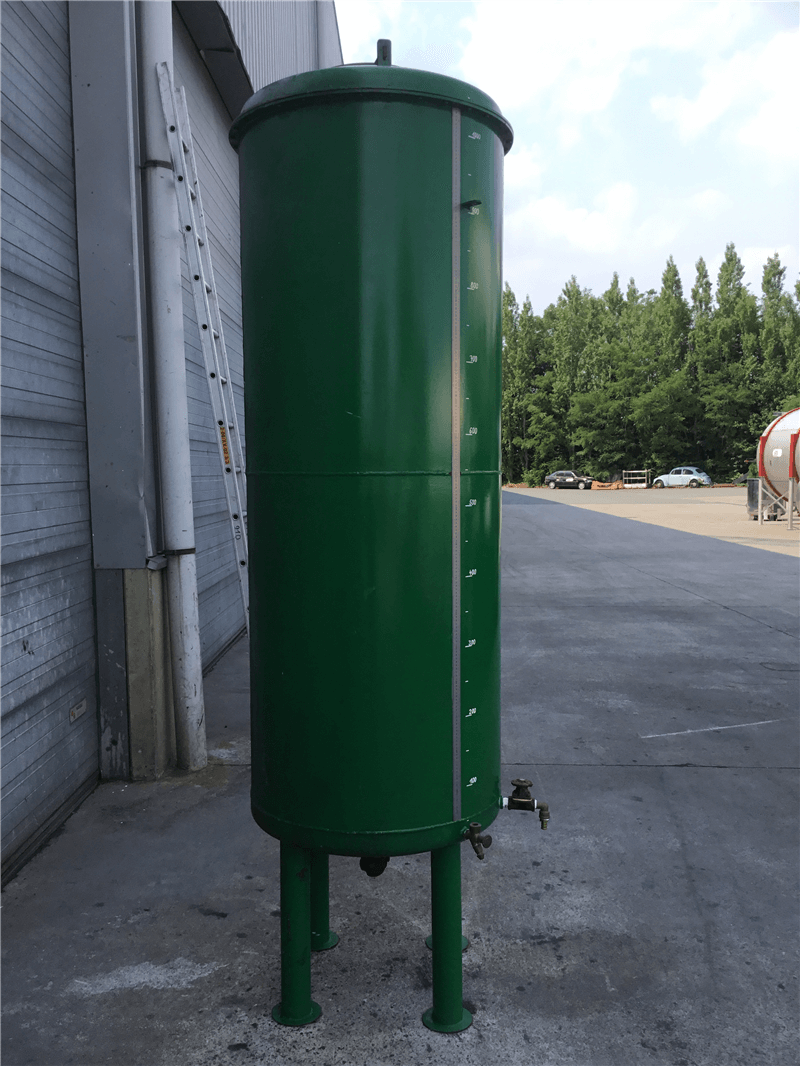

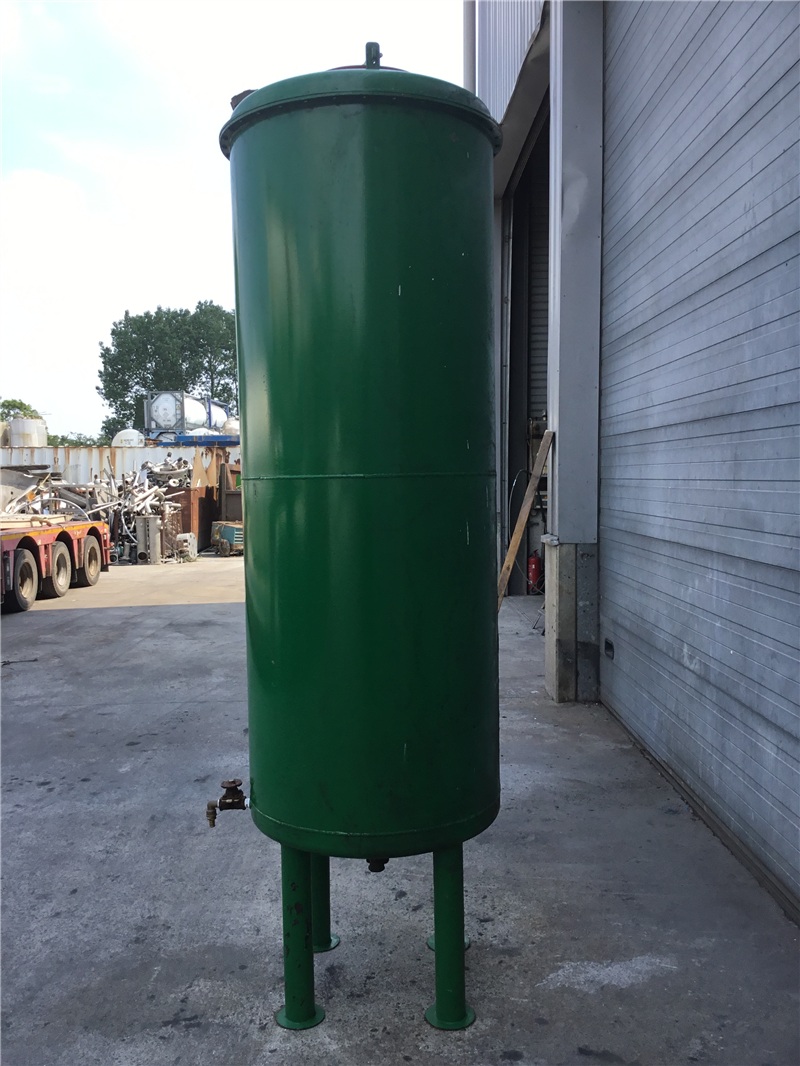

Used storage tank
- Material: steel-epoxy
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 3
| General | |
|---|---|
| Item number | 02.37.JA.02 |
| Material | steel-epoxy |
| Number | 3 |
| Capacity (Liters) | 1000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

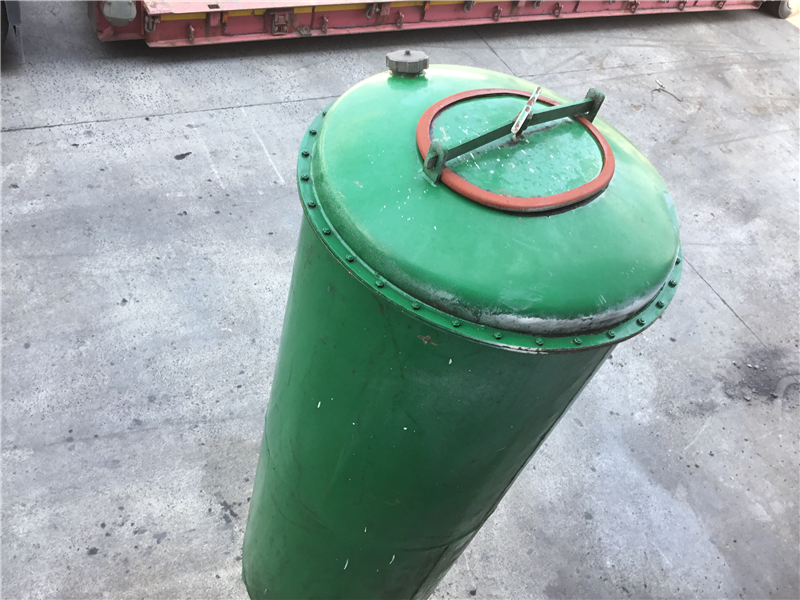

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 370x300 |

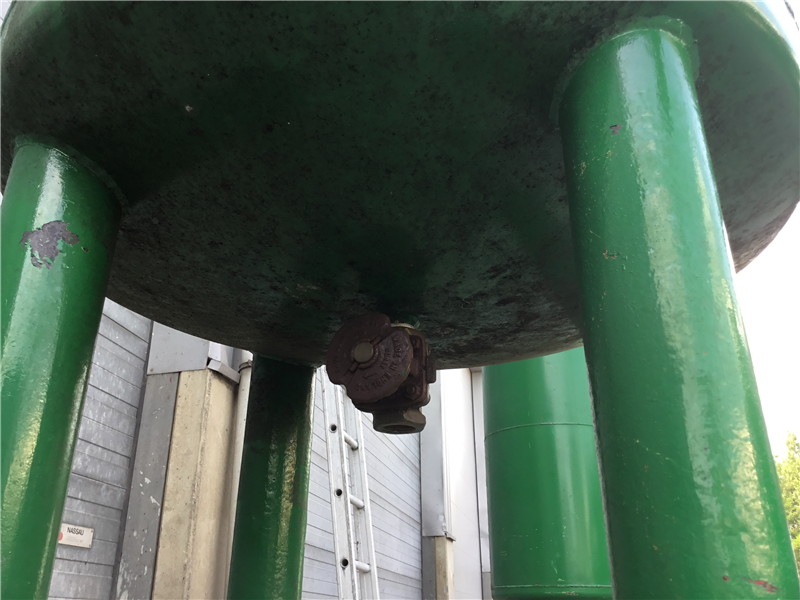

| Tank with total drain? | Yes |

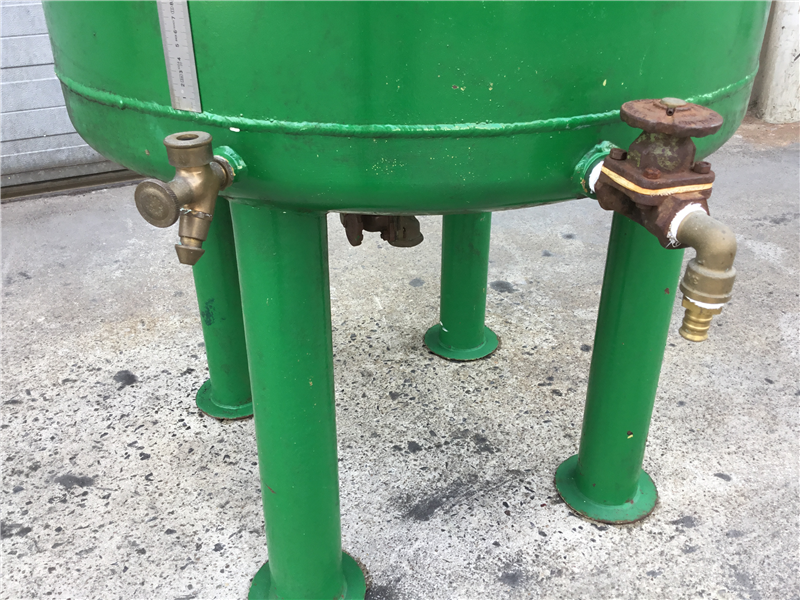

| Type of outlet (s) | Draadaansluiting |
| Diameter of outlet (mm) | 30 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 2517 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 150 |
| Total height (mm) | 3000 |
| Diameter tank (mm) | 794 |
| Insulation | |
|---|---|
| Insulation | No |
