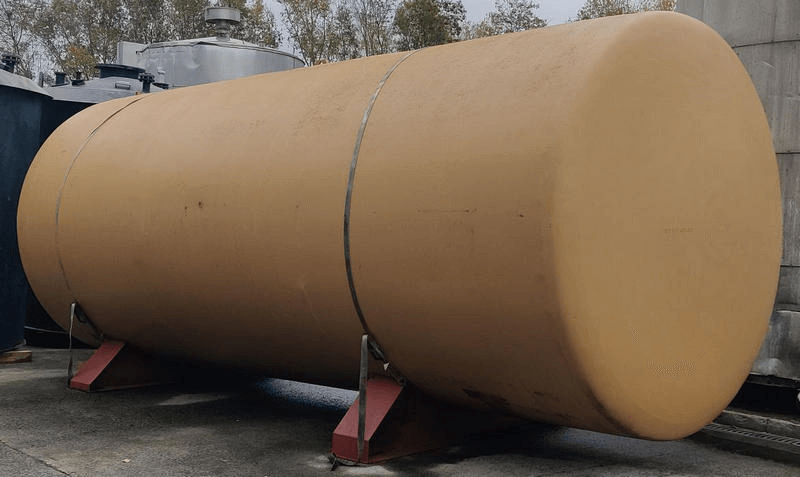

Used storage tank
- Material: Steel-emailed
- Condition: Used
- Volume (in litres): 42500 L
- In stock: 1
| General | |
|---|---|
| Item number | 01.45.WL.57 |
| Material | Steel-emailed |
| Number | 1 |
| Capacity (Liters) | 42500 |
| Type tank | Storage tank |

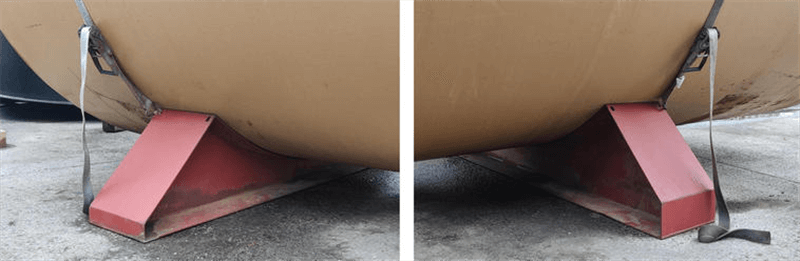

| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 1 |

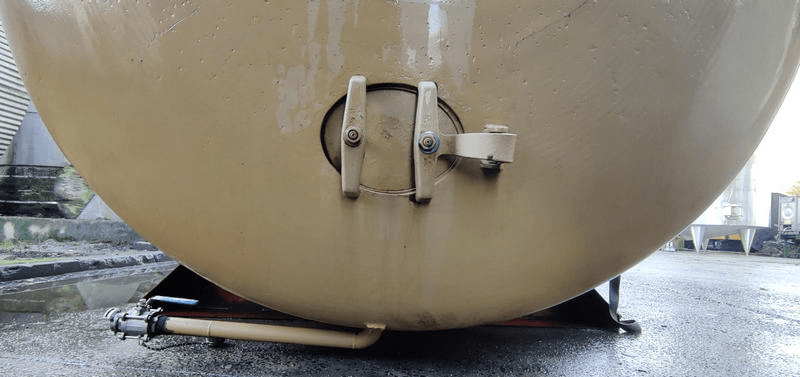

| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 300x400mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolklep |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Last application | Agriculture |
| Provision tank cleaning | None |
| Weight (kg) | 6000 |
| Condition | Used |
| Type plate manufacturer | No |

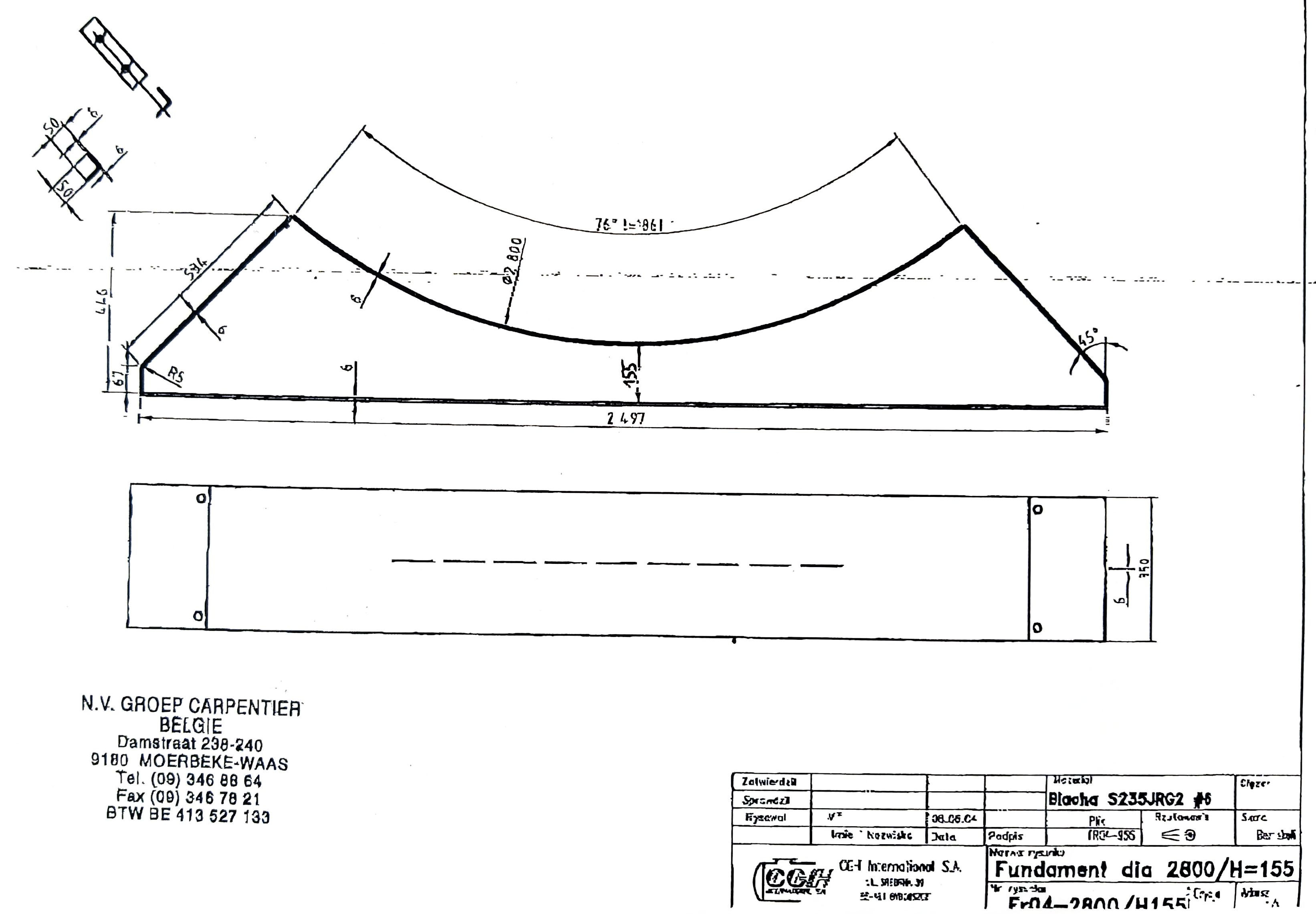

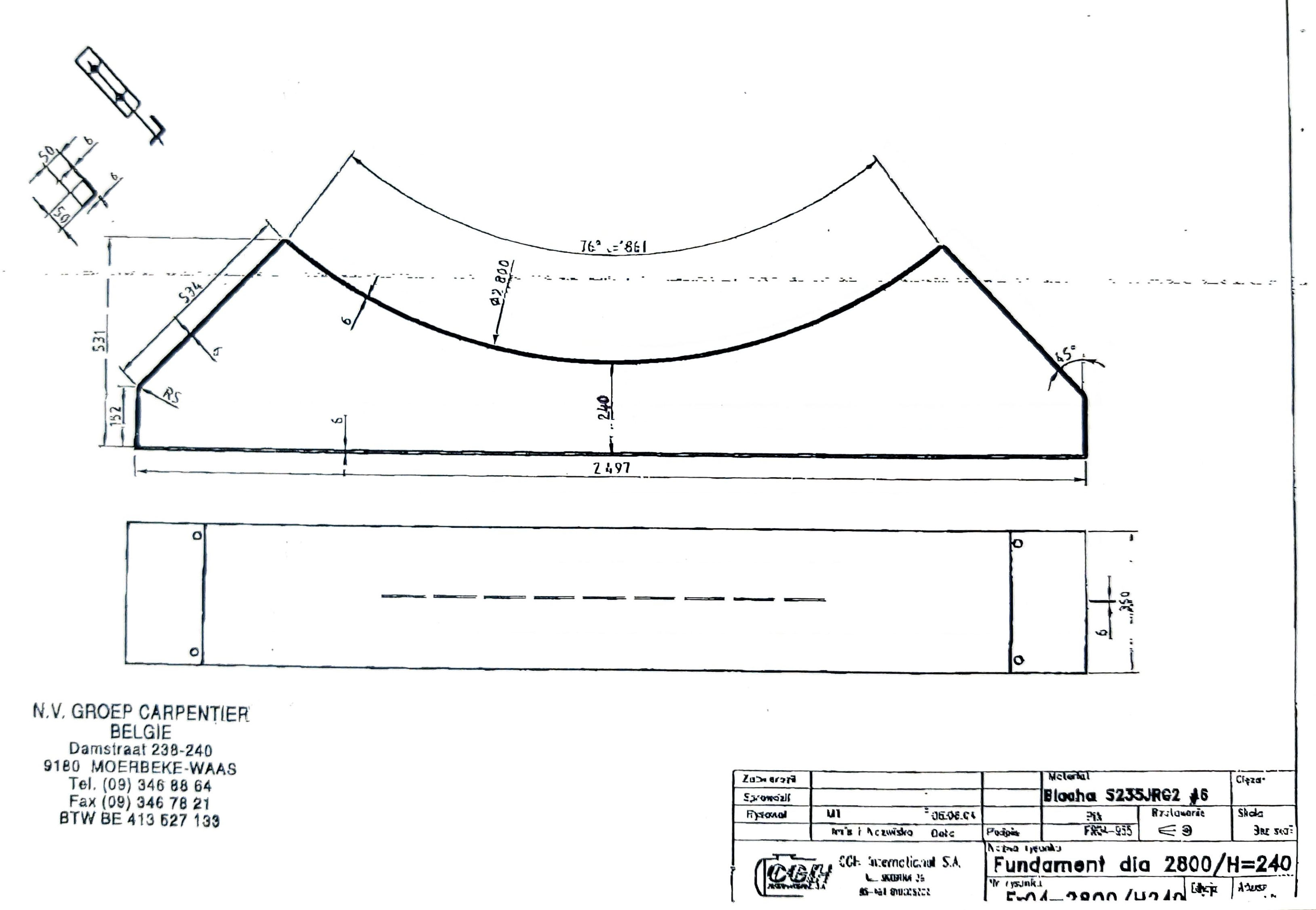

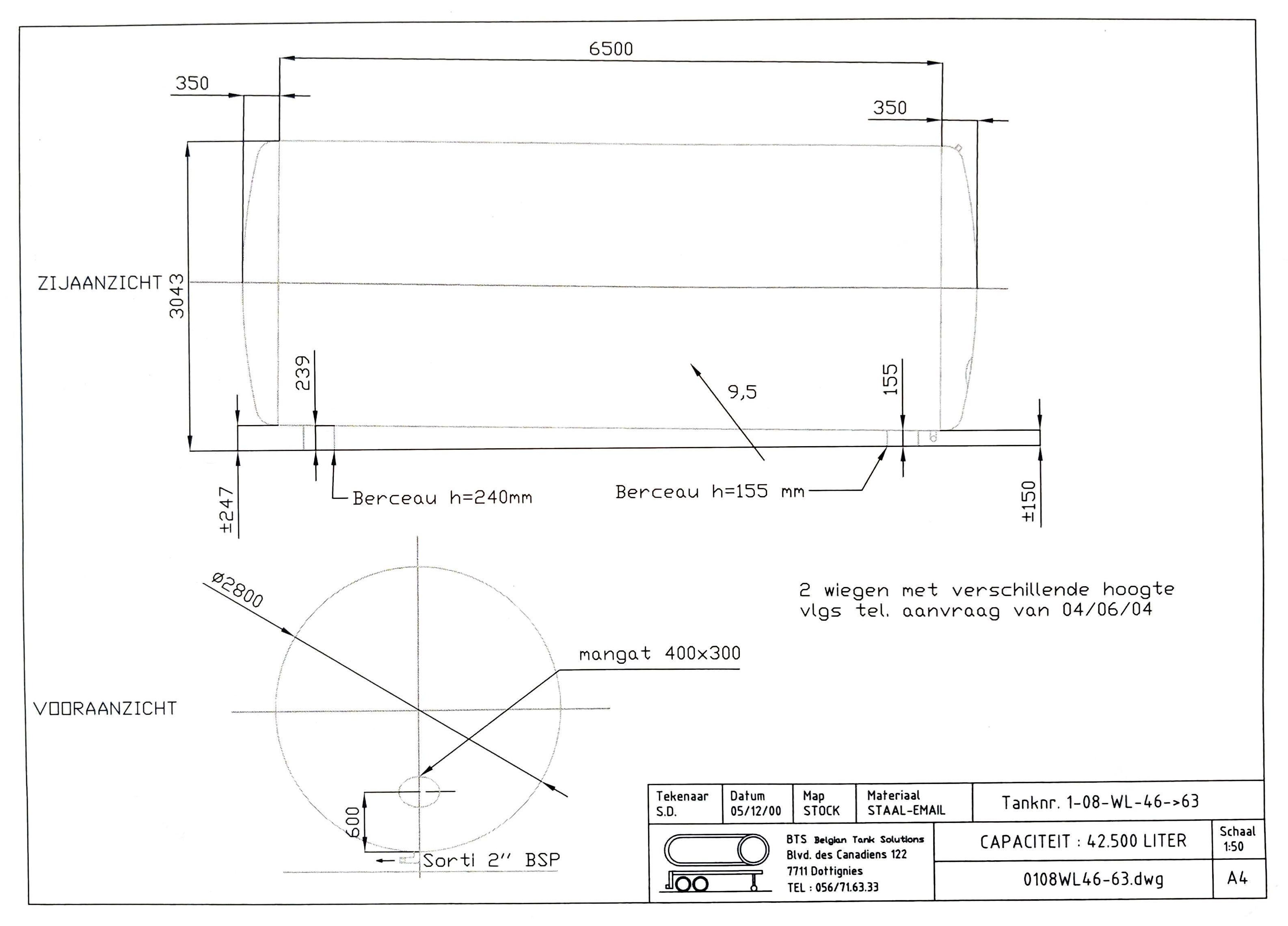

| Appendix 1 | 0145WL57_draw.jpg |
| Appendix 2 | 0145WL57_wieg1.jpg |
| Appendix 3 | 0145WL57_wieg2.jpg |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 9,5 |
| Periphery (mm) | 8880 |
| Cylindrical length (mm) | 6500 |
| Height bottom (mm) | 350 |
| Total height (mm) | 3200 |
| Length (mm) | 7200 |
| Diameter tank (mm) | 2805 |
| Width (mm) | 2830 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | 2 cradles of different heights (155mm/240mm) --- email-coating has already been repaired in several places |
