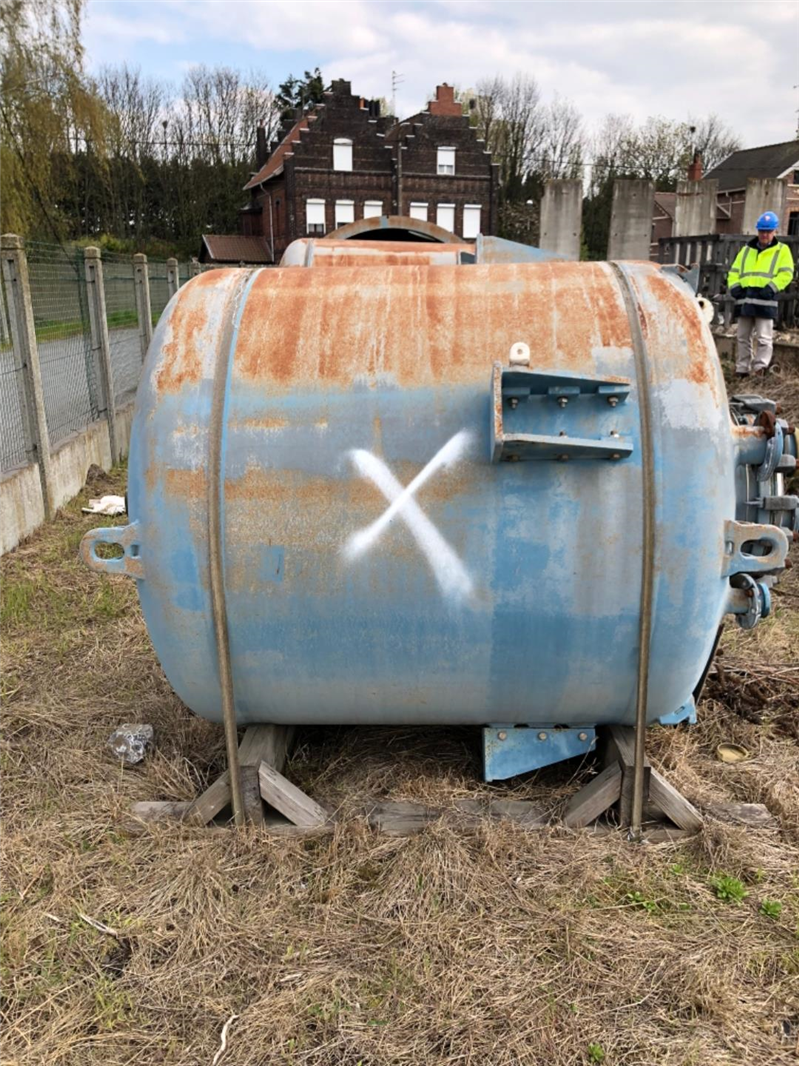

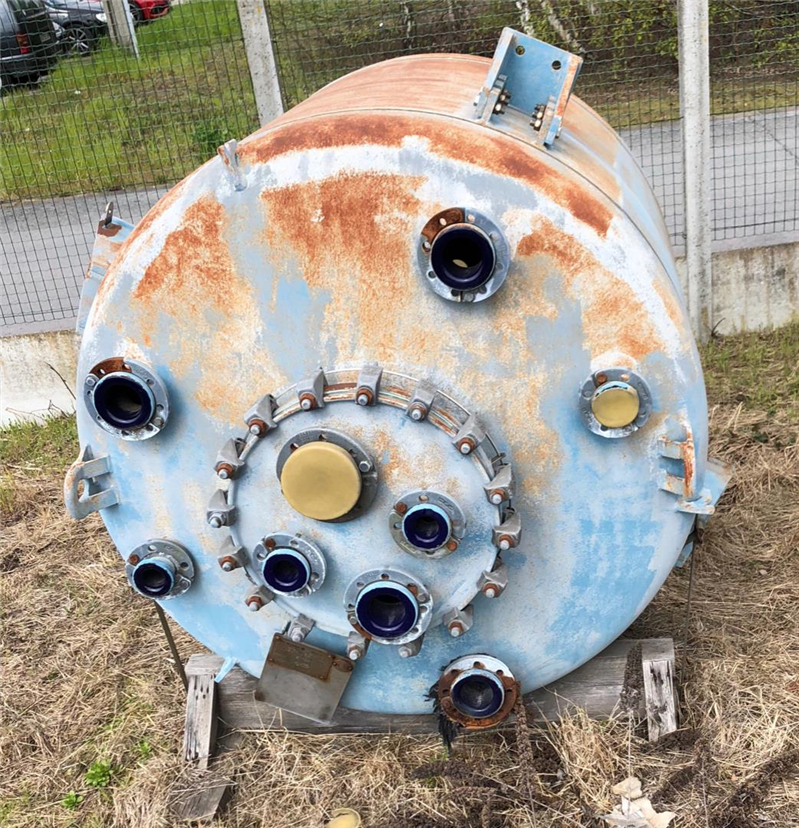

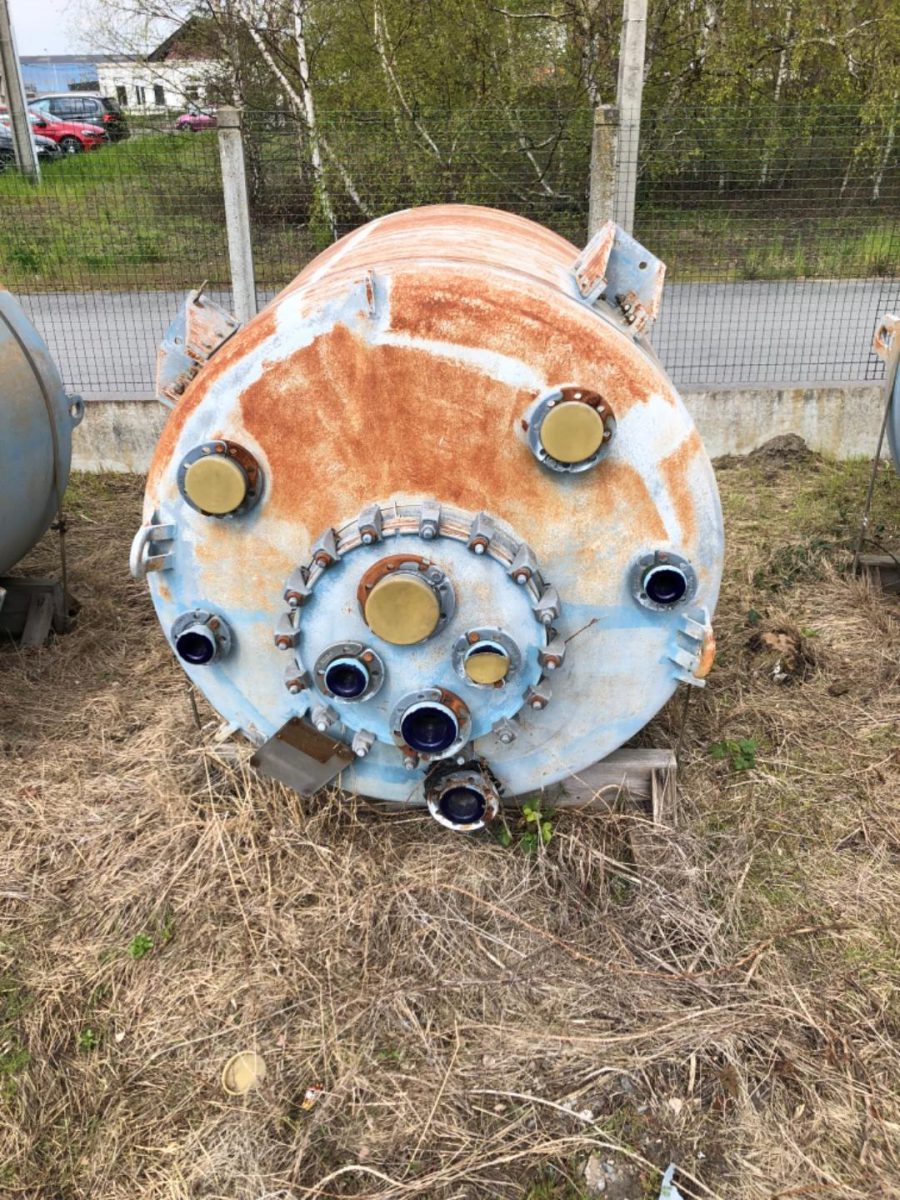

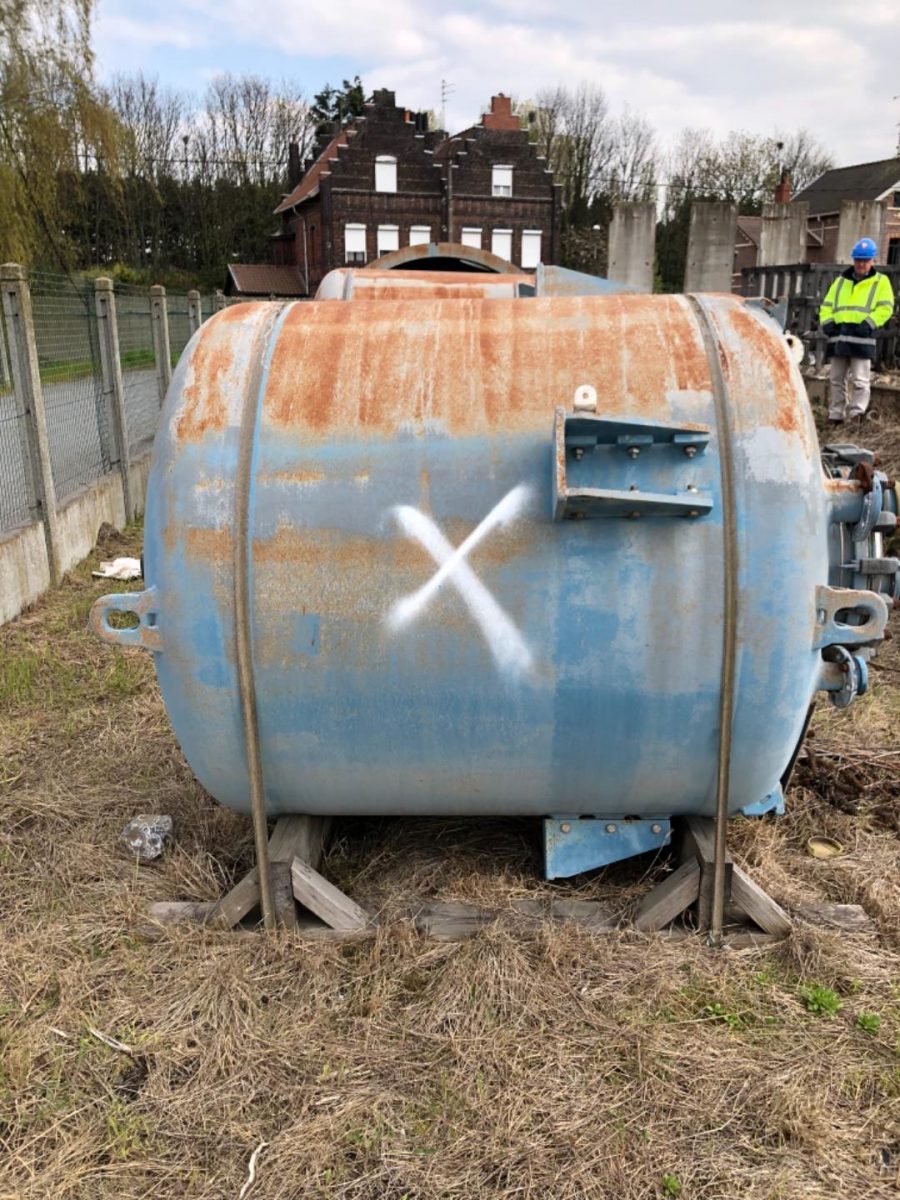

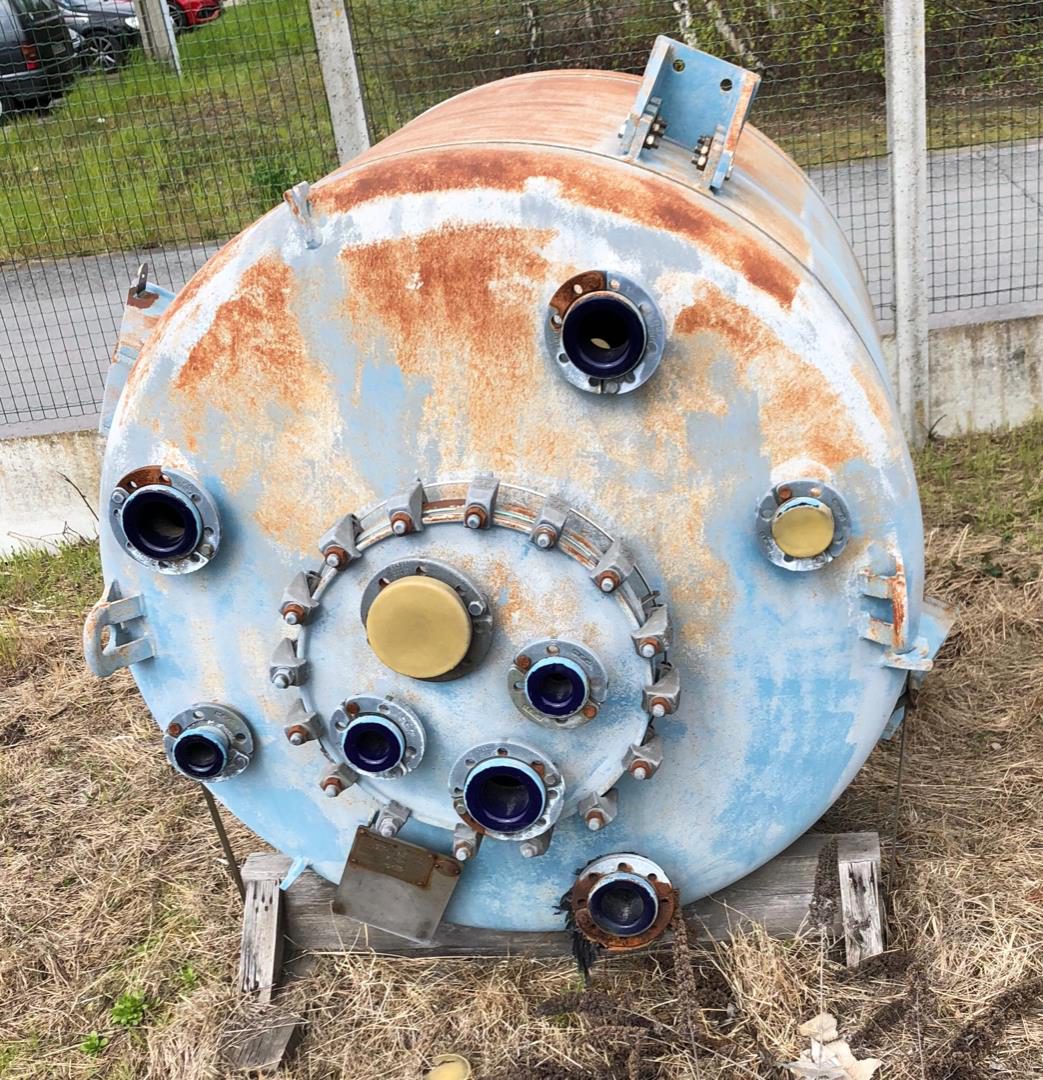

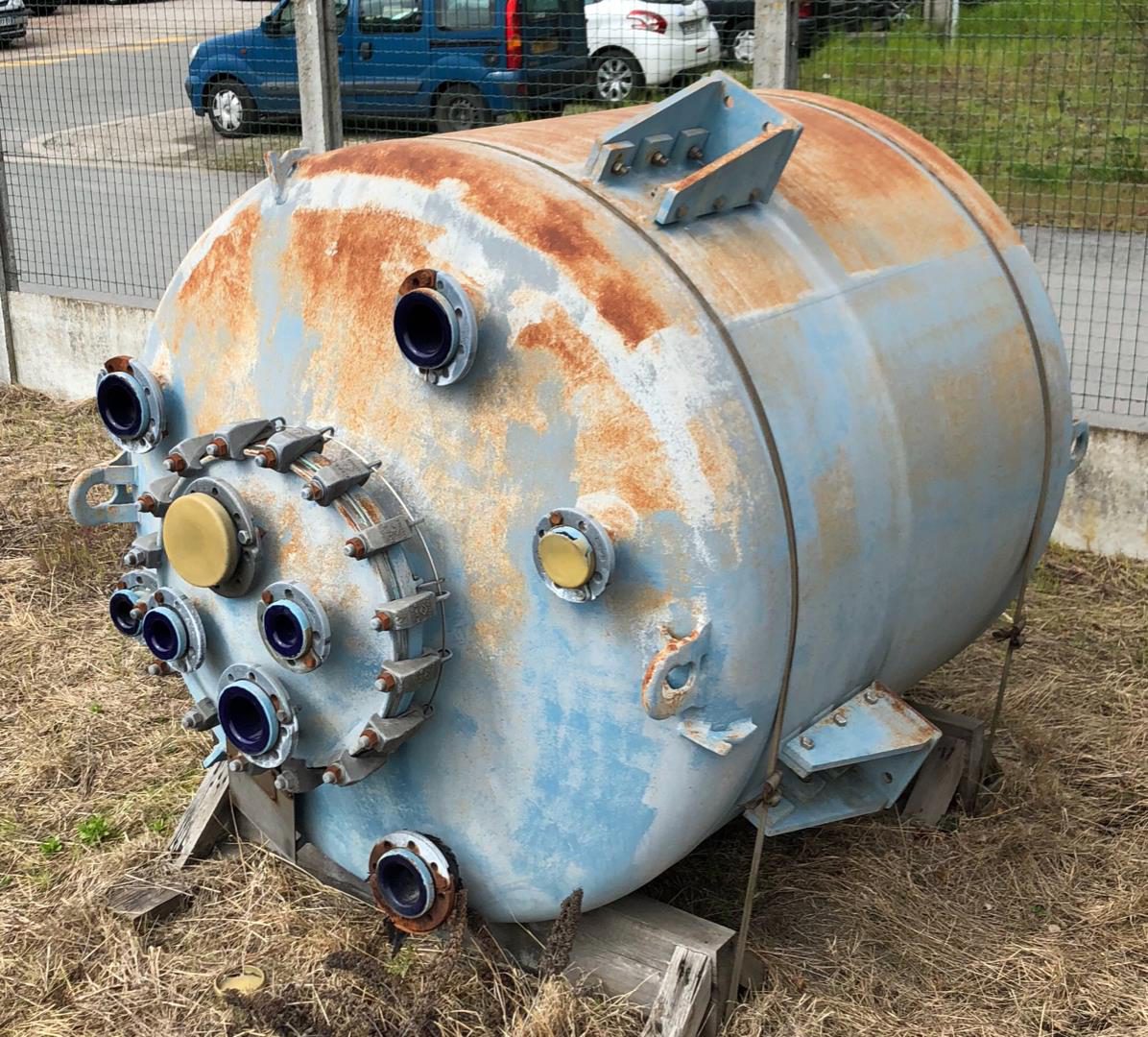

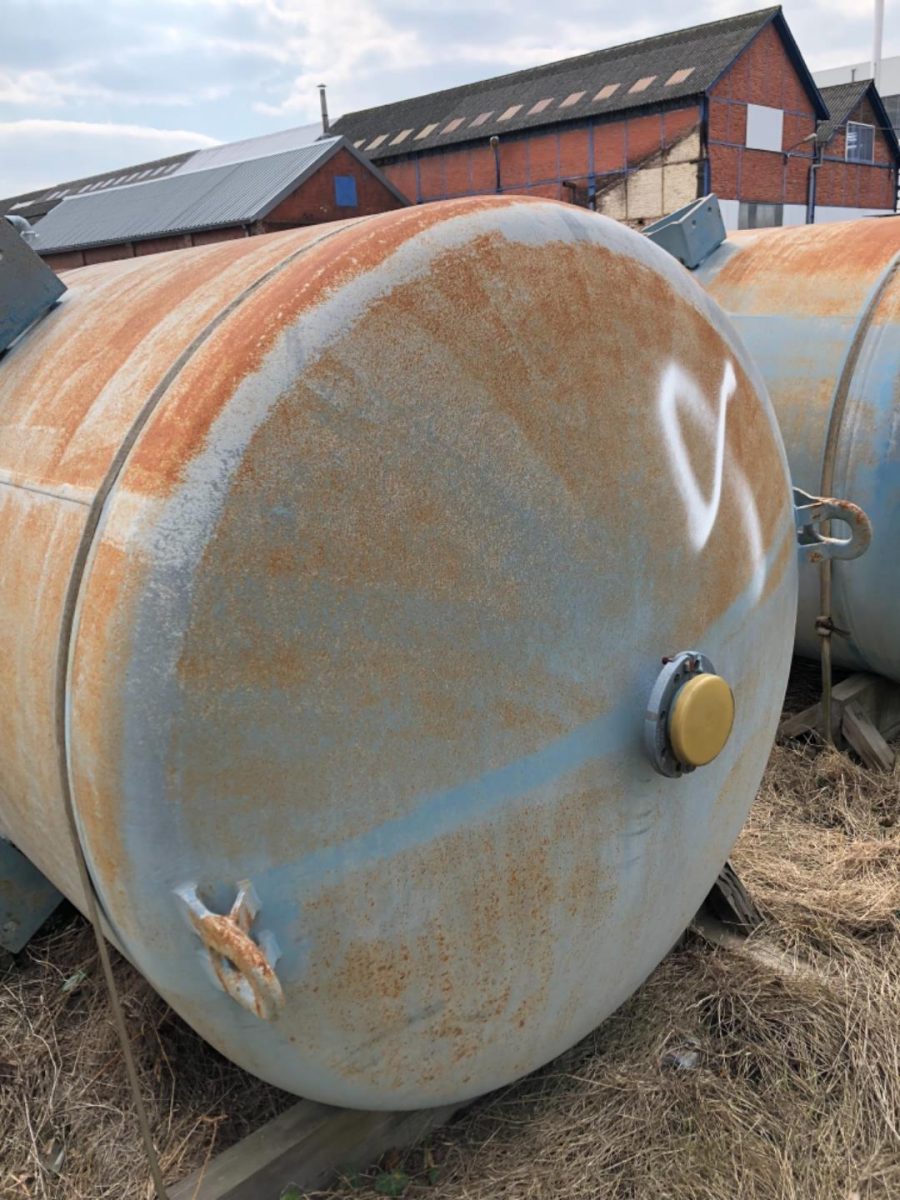

Never used pressure and vacuum tank
- Material: Steel-emailed
- Condition: Never used
- Volume (in litres): 3380 L
- In stock: 1
| General | |
|---|---|
| Material | Steel-emailed |
| Number | 1 |
| Group | Tank |
| Supplier | Produits chemiques de Loos |
| Co-owner | Belgian Tanks Solutions |
| Condition | Never used |

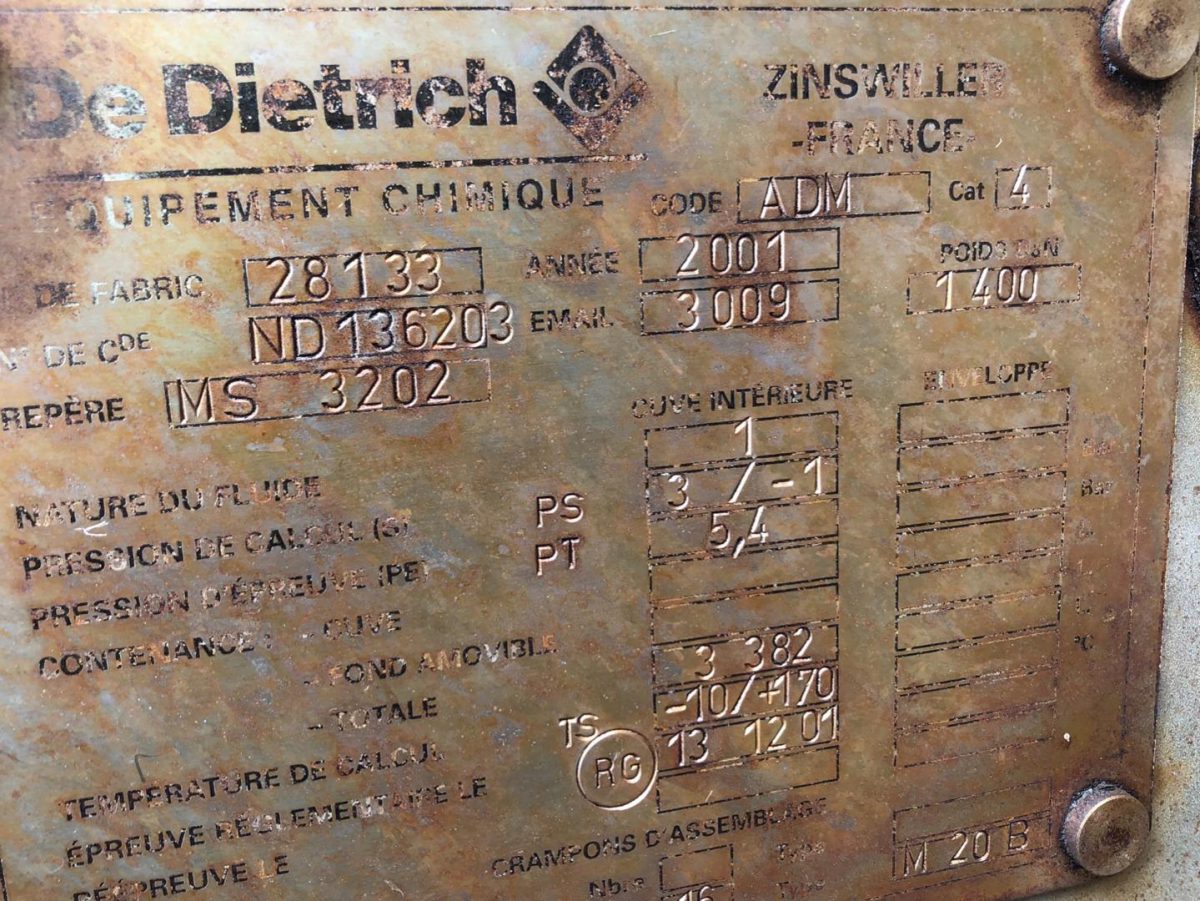

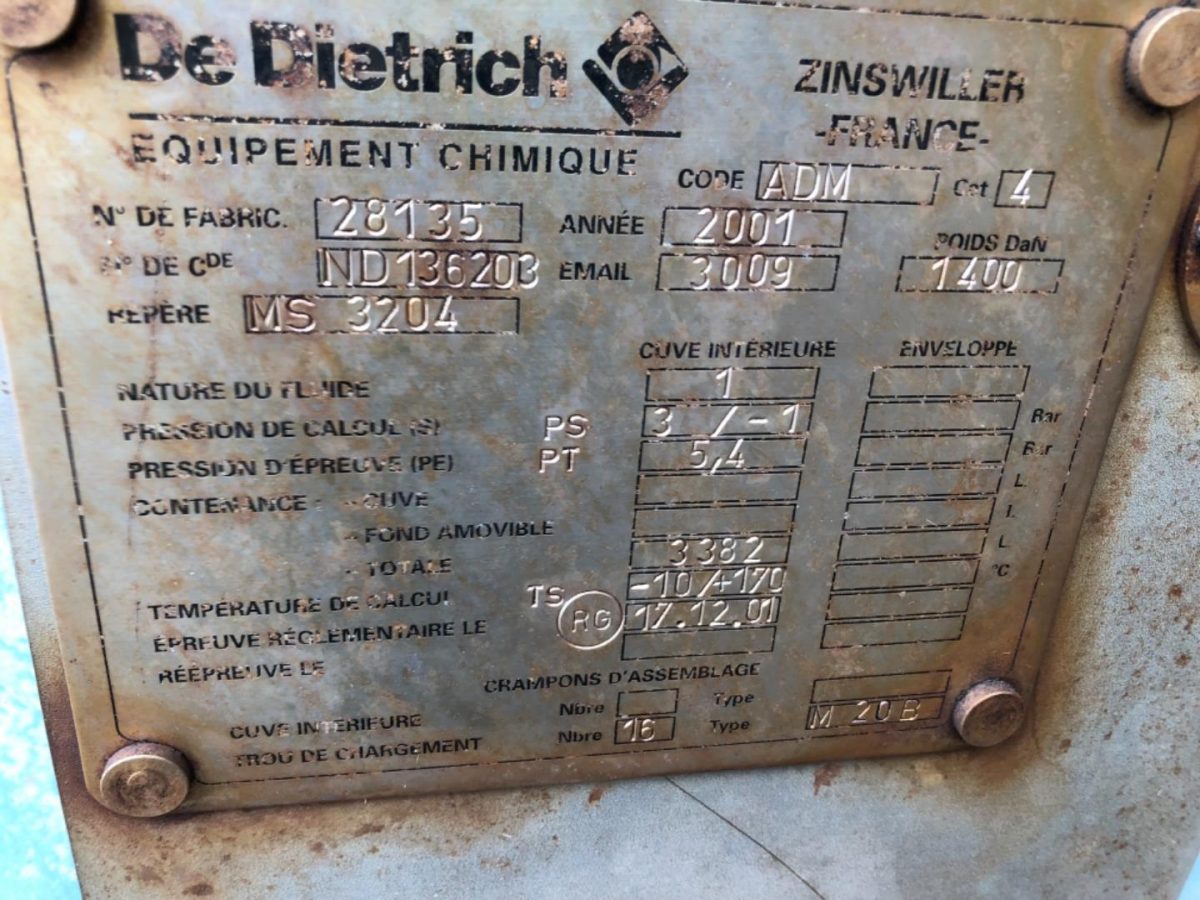

| Type plate manufacturer | Yes |
| Manufacturer | DeDietrich |
| Year Built | 2001 |
| Design Code | ND136203 |
| Construction data available | Yes |
| Working temperature (° C) | 170 |
| Show Online? | Yes |
| Appendix 1 | dedietrich 3382.jpg |
| Appendix 2 | dedietrich 3382a.jpg |
| Tank | |
|---|---|
| Capacity (Liters) | 3380 |
| Type tank | Pressure and vacuum tank |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 83 |
| locality | On location |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 12 |
| Cylinder Thickness (mm) | 12 |
| Bottom thickness (mm) | 12 |
| Cylindrical length (mm) | 1342 |
| height bottom (mm) | 304 |
| height bottom (mm) | 304 |
| height bottom (mm) | 304 |
| Total height (mm) | 2320 |
| Diameter tank (mm) | 1600 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
