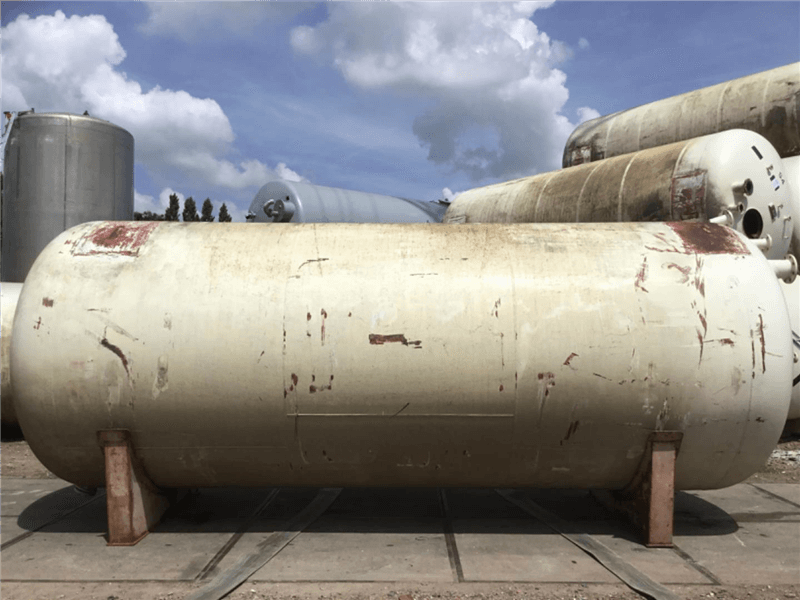

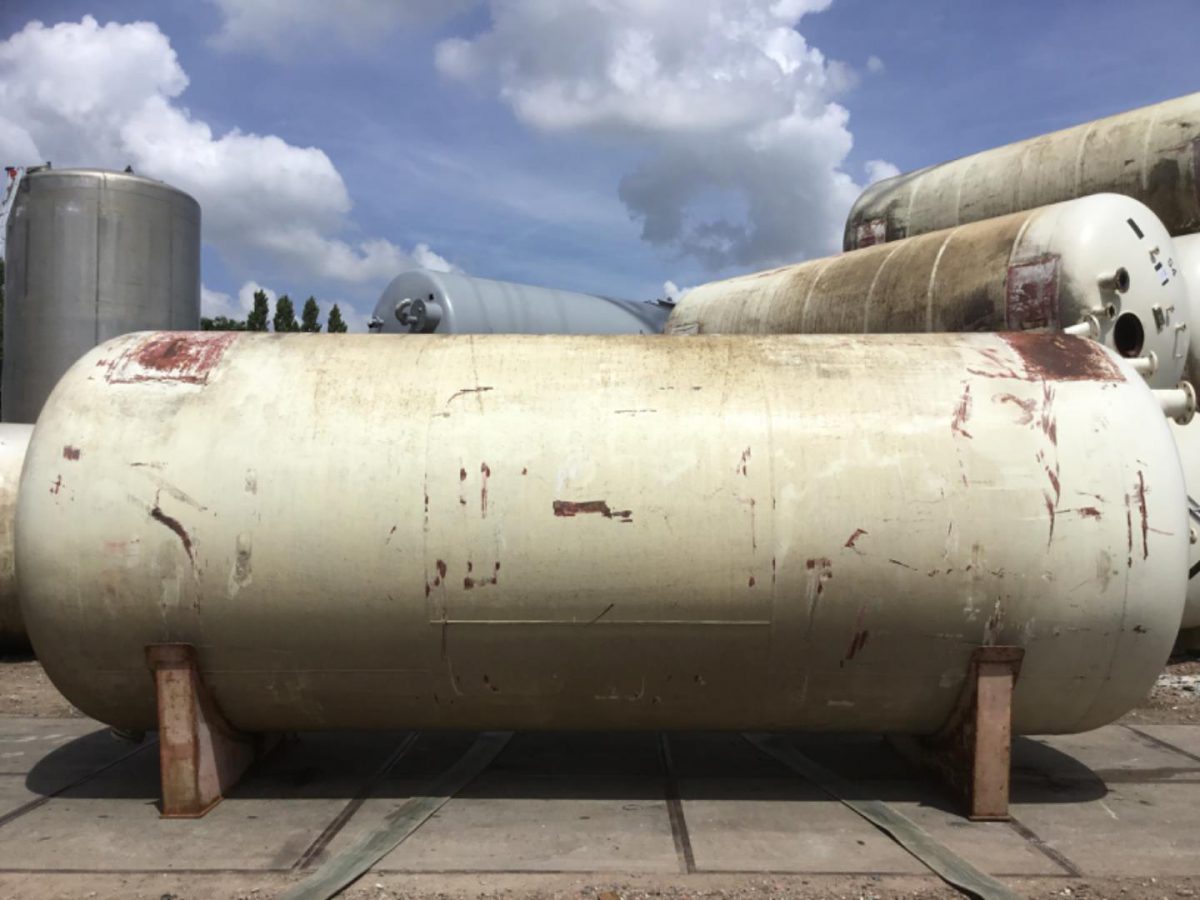

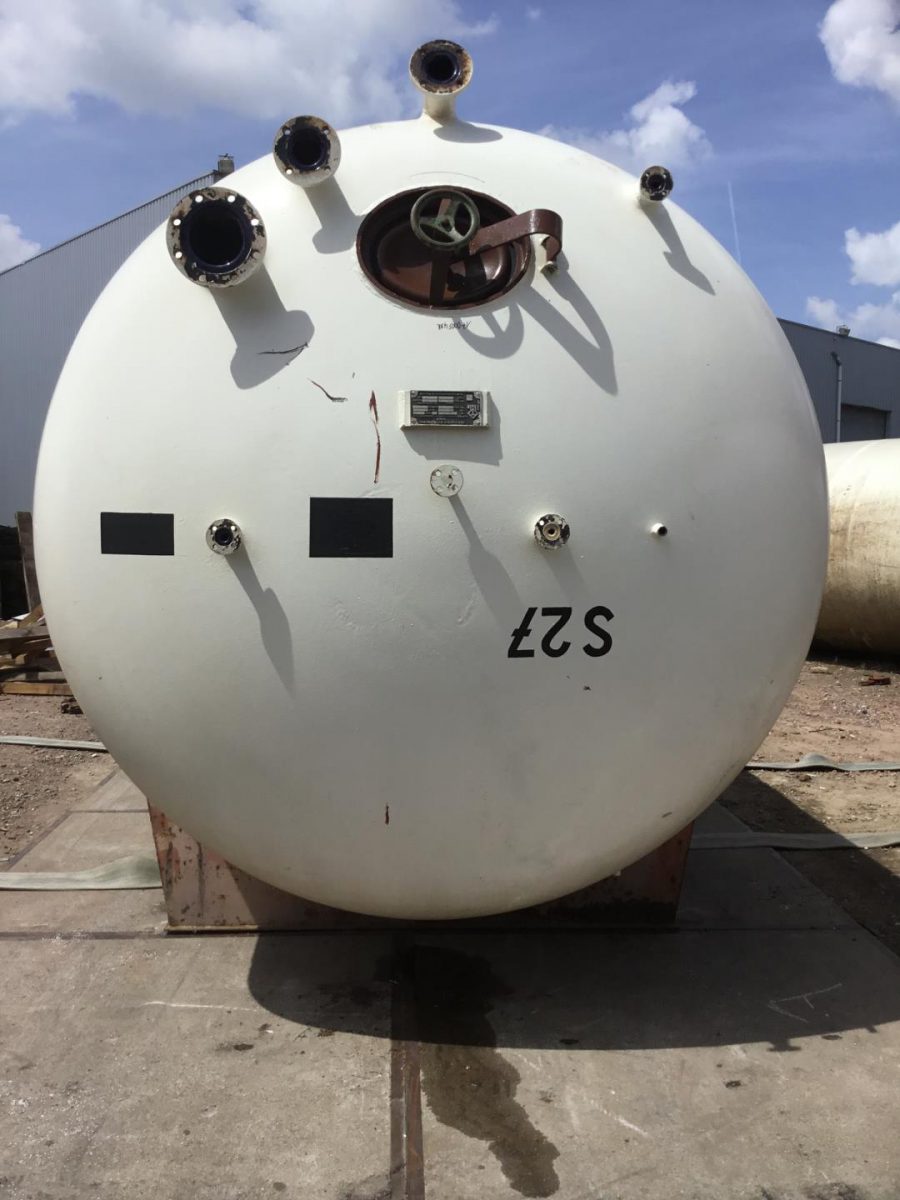

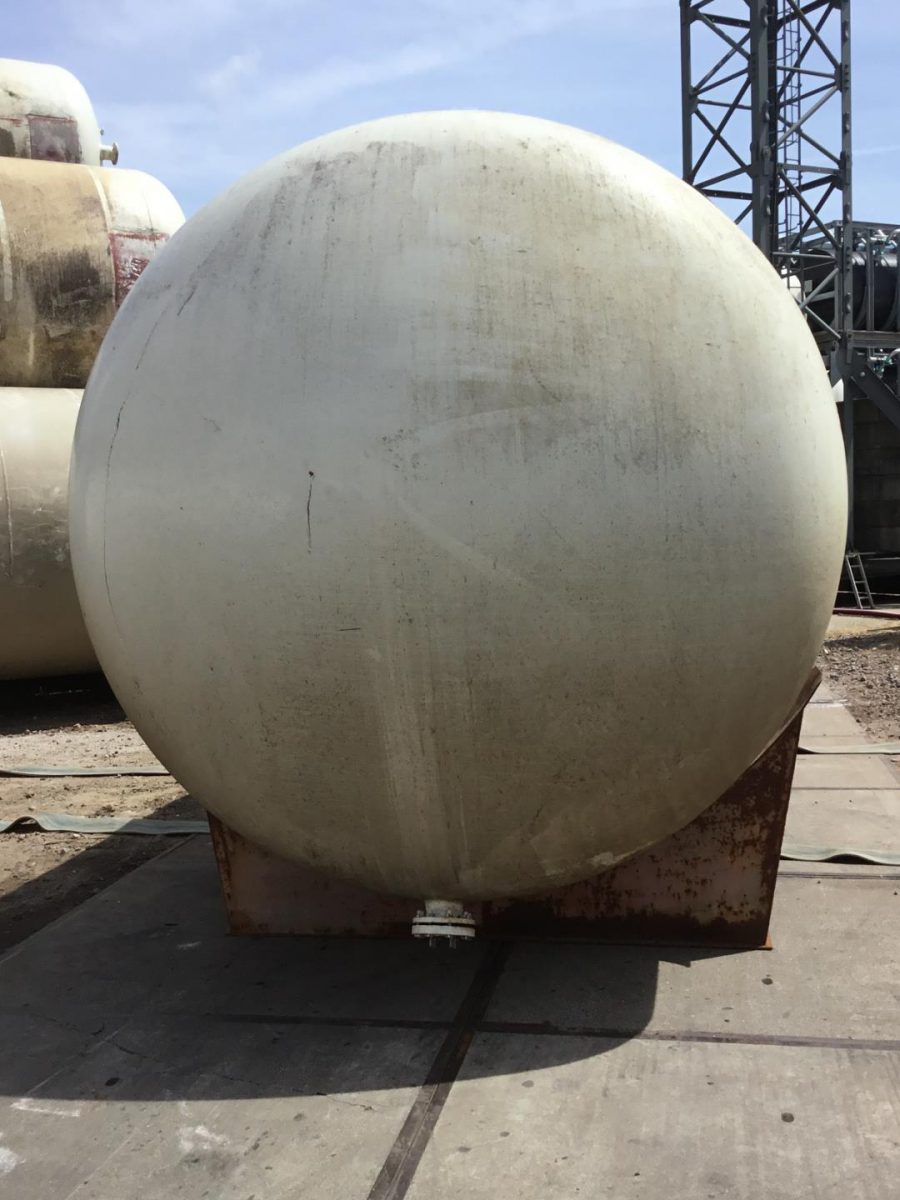

Used pressure tank
- Material: Steel-emailed
- Condition: Used
- Volume (in litres): 42660 L
- In stock: 1
| General | |
|---|---|
| Material | Steel-emailed |
| Number | 1 |
| Group | Tank |
| Supplier | Rudesheimm |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

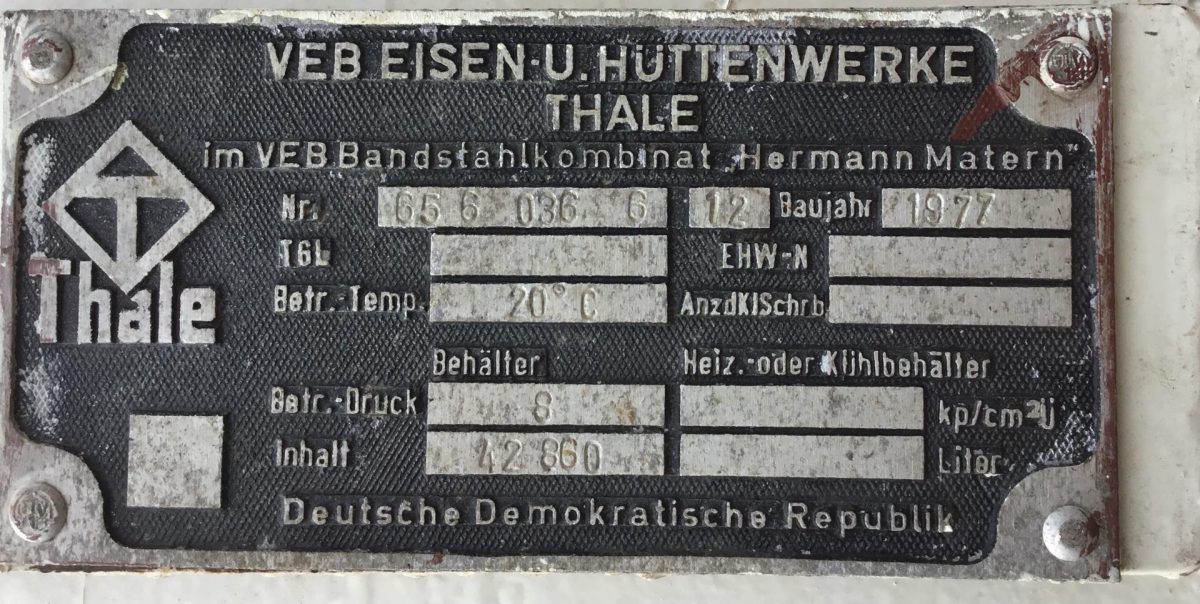

| Type plate manufacturer | Yes |
| Manufacturer | Eisen - U. Hüttenwerken Thale |
| Year Built | 1977 |
| Working temperature (° C) | 20 |
| Show Online? | Yes |
| Sticker | Yes |
| Tank | |
|---|---|
| Capacity (Liters) | 42660 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 8 |
| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

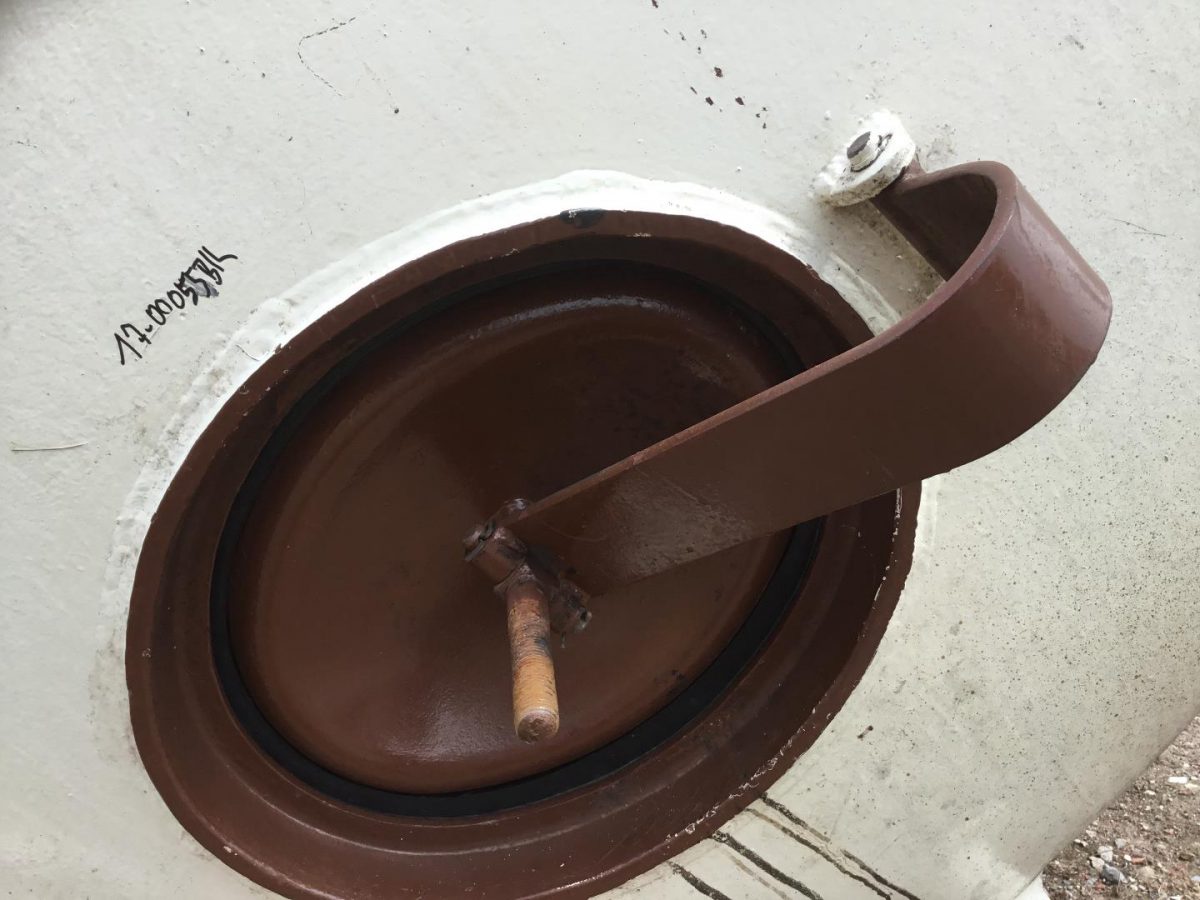

| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 450x360 |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flensaansluiting |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Sector | 3 |
| Last application | Food |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 18 |
| Bottom thickness (mm) | 18 |
| Periphery (mm) | 8760 |
| Cylindrical length (mm) | 6130 |
| height bottom (mm) | 700 |
| height bottom (mm) | 700 |
| height bottom (mm) | 700 |
| Length (mm) | 7650 |
| Diameter tank (mm) | 2790 |
| Agitators | |
|---|---|
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 2.2 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 945 |
